PARTSTOBEINSTALLED
to instructions notice attached to battery for
proper activating, charging and maintenance
procedure.

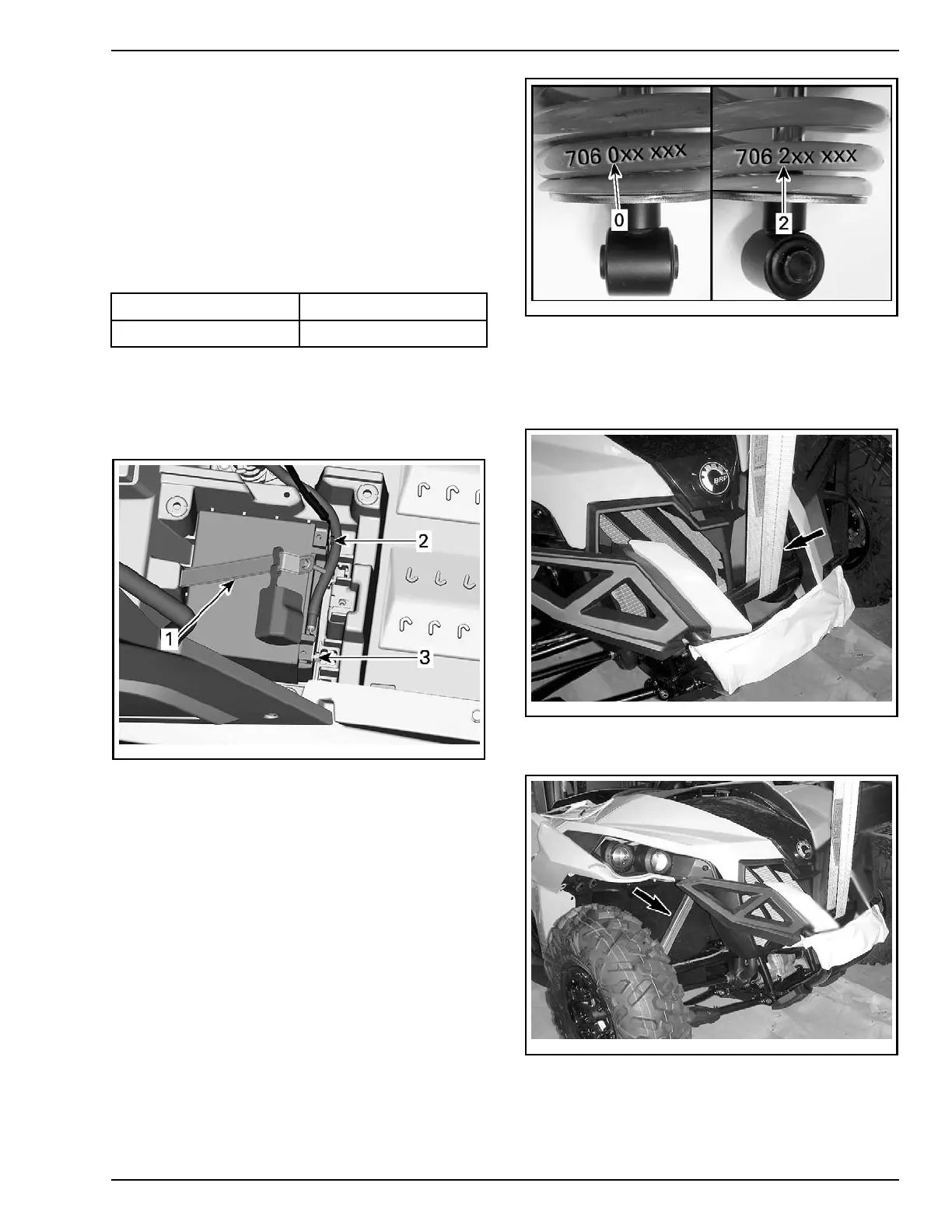

Battery Installation
NOTE: The battery should be installed only when
properly activated and charged.
1. Install the battery in its rack.
2. Install battery holder and tighten the retaining
nut.
PARTS TORQUE
Battery hold
er nut
10 N•m (89 lbf
•in)
3. Connect the RED (+) lead on the side of battery
as shown. Use provided screw and nut.
4. Install pro
tective cap over terminal.
5. Connect the BLACK (–) lead on the top post.
tbl201
4-007-210_a
TYPICAL
1. Battery holder
2. BLACK (
-) lead
3. RED (+) lead and protective cap
Shock Absorber I nstallation
Shock Absorber Identification
Make sure not to mix front and rear shock ab-
sorbers at installation.
Front a
nd rear shock absorbers can be identified
with t
he 4
th
digit of the spring part number.
tbl2013-005-001_a
TYPICAL
0=Rear
2 = Front
Front Shock Absorber Installation
1. Safely lift front of vehicle using a hoist.
tbl2013-009-020_a
2. Remove the suspension brackets. Discard
bolts and nuts.
tbl2013-009-019_a
3. Install shock absorbers. Place reservoir, re-
bound adjuster and bolt heads outwards.
PREDELIVERY 2014-1 9 / 34
