B.U.D.S. PROGRAMMING
SET-UP
Tires Pressure
From factory, tires air pressure could be different
from the recommended air pressure. To ensure
proper seating of the tire bead, inflate tires at
200 kPa (29 PSI) THEN settirepressuretovehi-
cle specification. Refer to the following table.
NOTICE
Always check pressure when t ires are
cold.
NOTICE
Low pressure may cause tire to de-
flate and rotate on wheel. Overpressure may
burst the tire. Always follow recommended
pressure. Since tires are low-pressure type, a
manual pump should be used.
NOTE: Tire pr essure varies with temperature and
altitude.
TIRE PRESSURE FRONT REAR
MINIMUM
124 kPa
(18 PSI)
124 kPa
(18 PSI)
MAXIMUM
(USE WHEN
TOTAL L OAD IS
GREATER THAN
180 KG (397 LB)
138 kPa
(20 PSI)
179 kPa
(26 PSI)
Wheel Beadlock
Wheel Beadlock Tightening
X rs Model
NOTICE
Do not use an impact wrench for
tightening beadlock screws in order to avoid
to damage them.

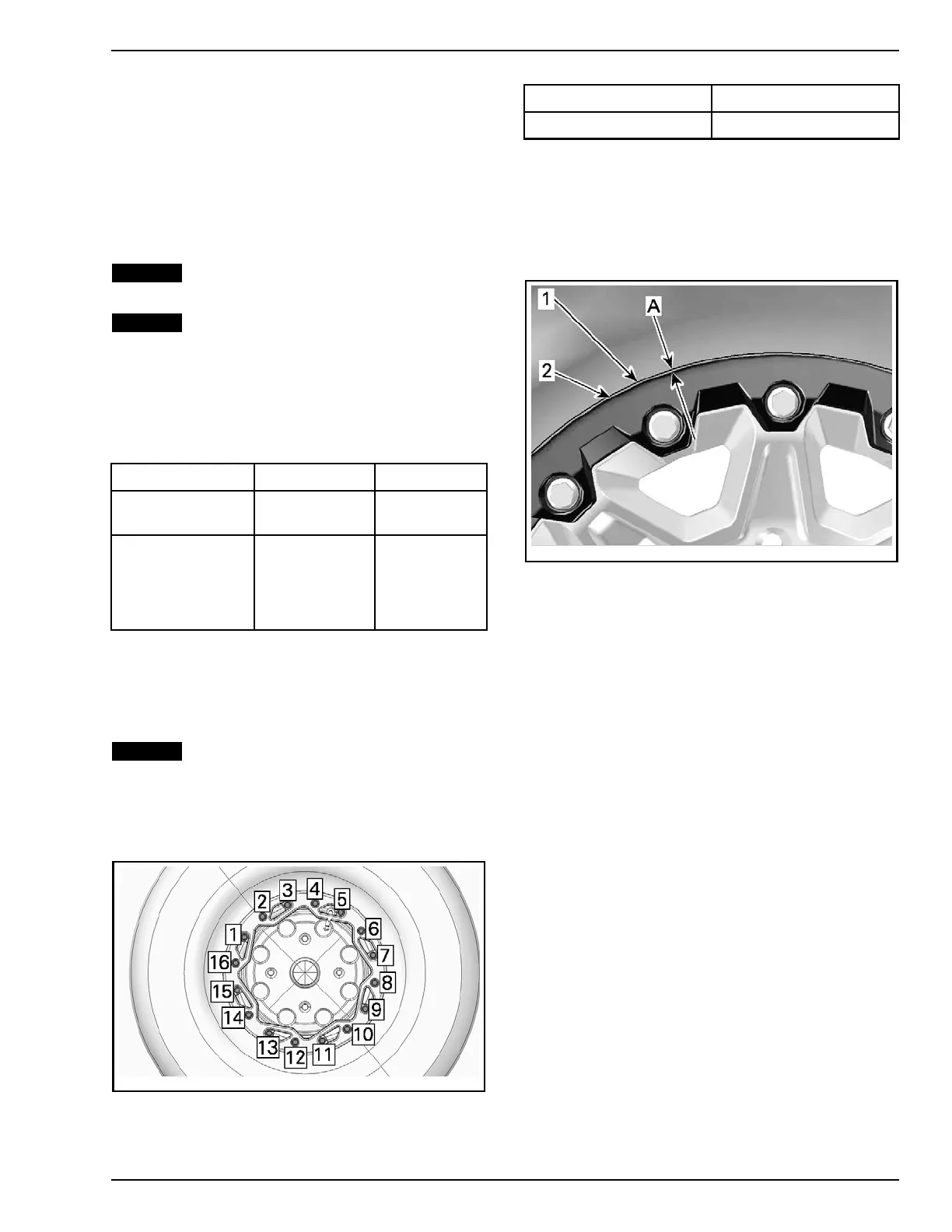

Check beadlock screws tightening as per the fol-
lowing sequence.
tbl2011-001-068_a
TYPICAL
PART TORQUE
Beadlock screws 8 N•m (71 lbf•in)
Wheel Beadlock Gap Verification
X rs Model
Verify the gap
between tire and beadlock clamp
ring, it shoul
d be practically equal all around the
ring.
tbl2013-009-120_a
1. Ti re
2. Beadlock clamp ring edge
A. Gap equal all around bead lock clamp ring
Readjust if required. Refer to proper shop manual
for complete procedure.
Protective Materials
Ensure that all protective materials are removed
from v ehicle.
Recall or Factory-directed
Modification
Complete applicable recall or factory-directed
modification.
B.U.D.S. PROGRAMMING
Diagnostic Connector Location
The diagnostic connector is located under the
dashboard on the driver's side. It is stored in its
protective cap besides the fuse box.
PREDELIVERY 2014-1 21 / 34
