FLUIDS
tbl2013-009-042_a
FULLY LIFT COVER

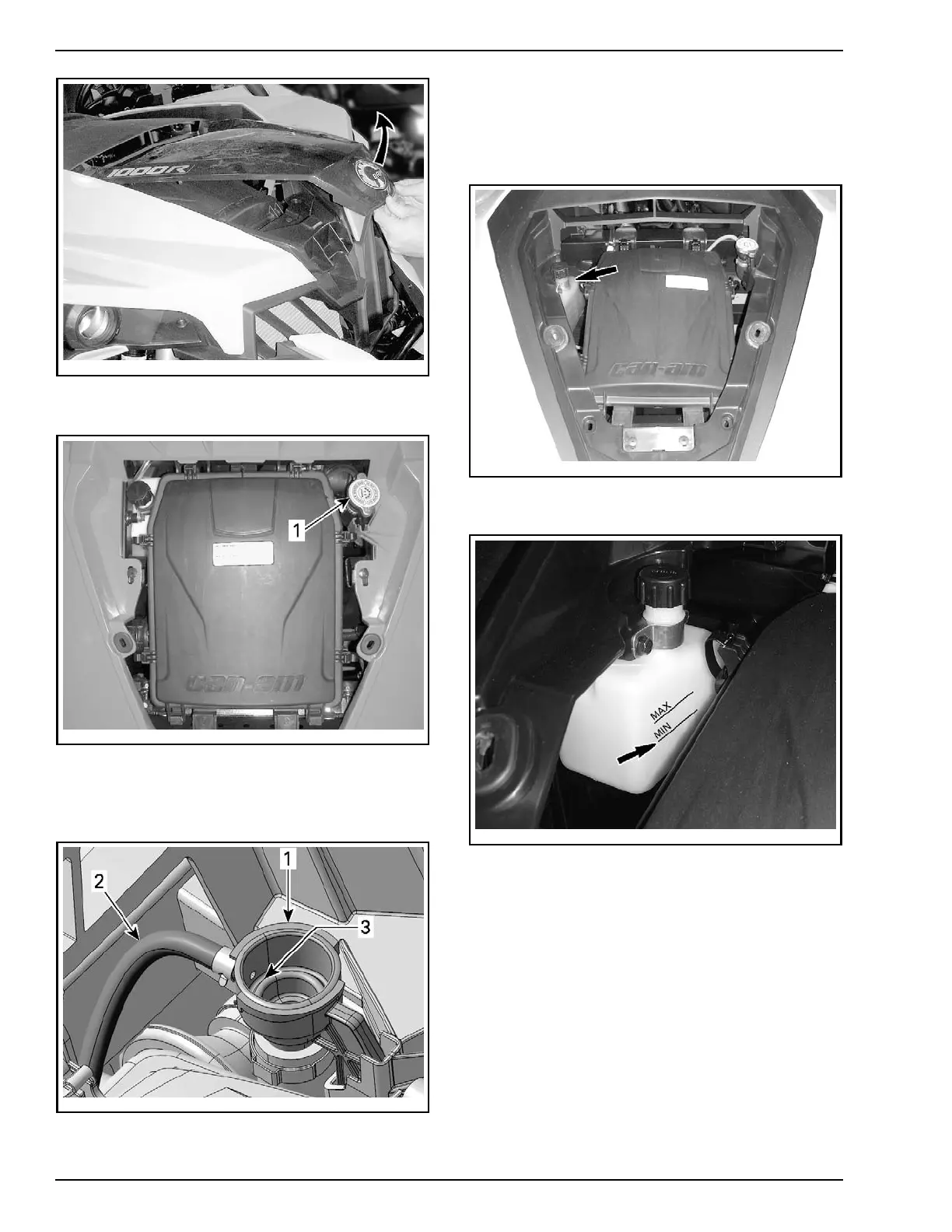

Remove radiator pressure cap.
tmo2011-001-313_a
1. Radiator pressure cap
Ensure cooling system is full up to the pressure
cap seat.
tmr2011-011-028_a
1. Coo
ling system refill adapter
2. Expansion tank hose
3. Coolant system full level (pressure cap seat)
Add coolant in system if necessary.
Reinstall radiator pressure cap.
Check coolant level in expansion tank by looking
at the side of the coolant expansion tank.
tbl2013-009-051_a
Coolant should be at the MIN mark when engine
is COLD.
tbl2013-009-043_a
COOLANT EXPANSION TANK
Add coolant if required.
Remove filler cap from expansion tank.
Add coolant up to MIN mark.
Use a funnel to avoid spillage. Do not overfill.
Reinstall filler cap.
Reinstall service cover.
20 / 34 2014-1 PREDELIVERY
