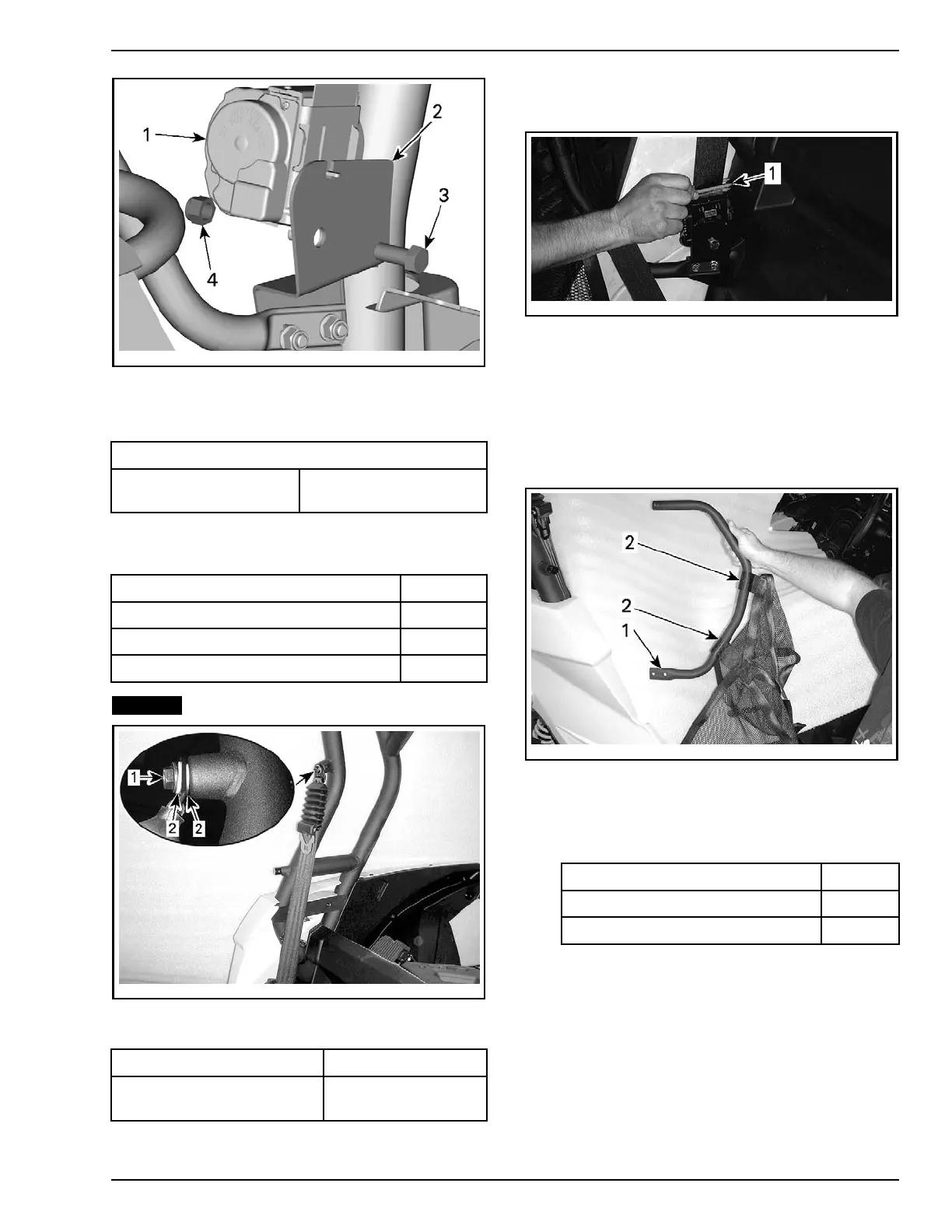

PARTSTOBEINSTALLED
tbl2014-007-216_a
TYPICAL
1. Safety belt retractor
2. Frame bracket
3. Shoulder bolt
4. Nylon flat washer
TIGHTENING TORQUE
7/16-20 x 1
shoulder bolts
60 N•m (44 l
bf•ft)
2. Loosen se
at belt.
3. Secure the seat belt to cage post.
PDI KIT PARTS QTY
7/16-20 x 1 shoulder bolts 2
7/16-20 elastic nuts 2
Nylon flat washers
4
NOTICE
Make sure belt is not twisted.
tbl2
013-009-036_a
TYPICAL RH SIDE — VIEW FROM THE LH SIDE
1. Shoulder bolt
2. Nylo
nflatwasher
PART TORQUE
7/16-20 x 1
shoulder bolts
60 N•m (44 lbf•ft)
4. Remove and discard the belt lock near seat belt
mechanism.
tbl2011-001-050_a
TYPICAL RH SIDE — VIEW FROM THE LH SIDE
1. Belt lock
Shoulder Guard installation
NOTE: Installation is the same for all shoulder
guards unless otherwise specified.
1. Slide shoulder guard into lateral net hoops. Po-
sition guard flat end as shown.
tbl2013
-009-038_a
TYPICAL RH S IDE SHOWN
1. Flat end
2. Net hoop
s
2. Install shoulder guard to frame.
2.1 Secure
the top of the shoulder guard.
PDI KIT PARTS QTY
M6x14Torxscrews 2
Support washers
2
PREDELIVERY 2014-1 15 / 34
To Next Page
