PARTS TO BE INSTALLED
tbl2011-0011-032
TYPICAL

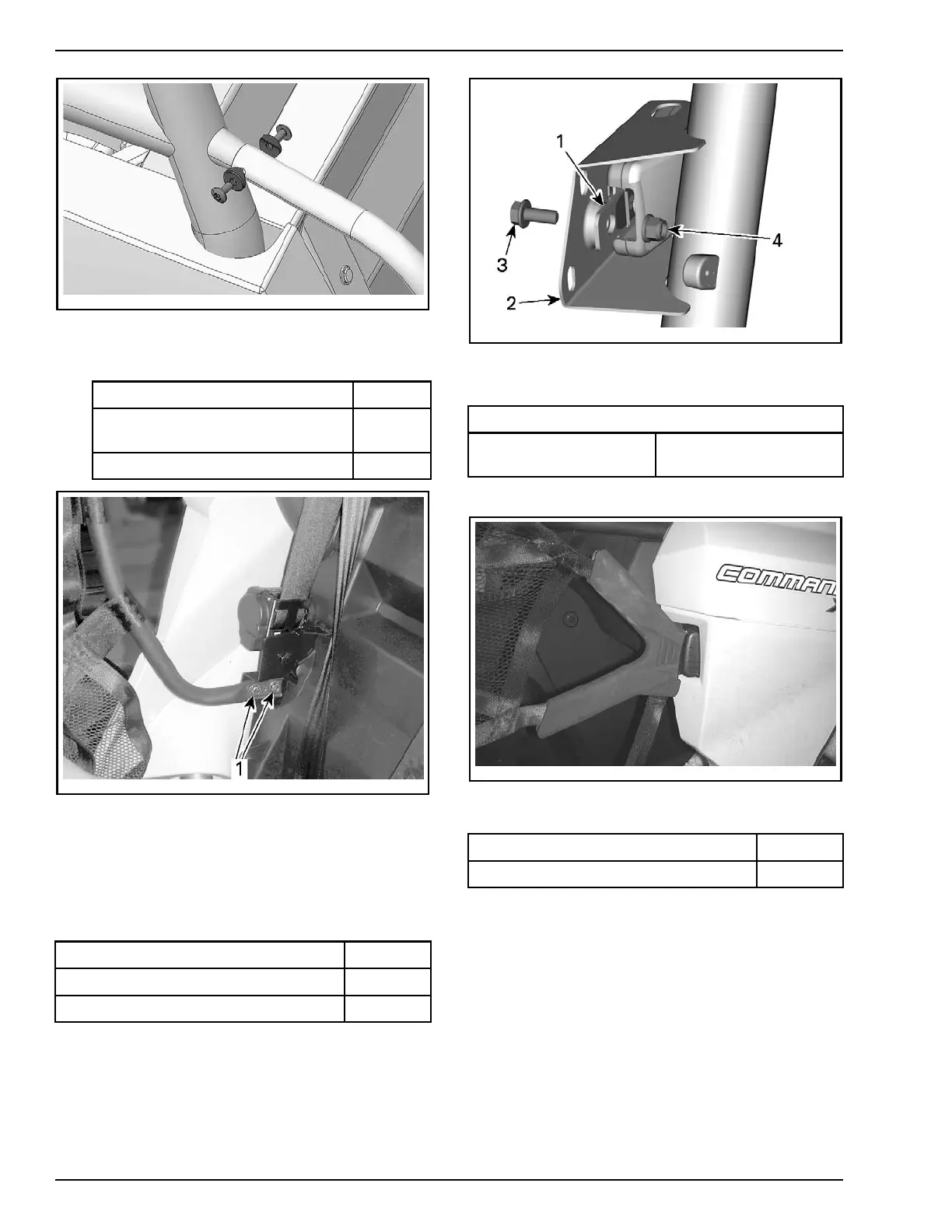

2.2 Secure the bo
ttom of the shoulder guard
to seat belt
mechanism bracket.
PDI KIT PARTS QTY
M8 x 20 hexagonal flange
bolts
2
M8 elastic flange nuts 2
tbl2013-009-039_a
TYPICA
L
1. Screw heads this side
Lateral Net Installation
NOTE: Installation is the same for all lateral nets
unless otherwise specified.
1. Install lateral net buckles for rear passengers.
PDI KIT PARTS QTY
M8 x 20 hexagonal flange bolts 2
M8 elastic flange nuts 2
tbl2014-007-215_a
1. Rear passenger lateral net buckle.
2. Frame metal bracket
3. M8 x 20 hexagonal flange bolts
4. M8 elastic flange nuts
TIGHTENING TORQUE
M8 x 2 0 hexa
gonal
flange bo lts
24.5 N•m (18 lbf•ft)
2. Buckle the lateral net.
tbl2011-001-051
TYPICAL
3. Attach the top of lateral net to the cage.
PDI KIT PARTS QTY
M5x14Torxscrews
4
16 / 34 2014-1 PREDELIVERY
