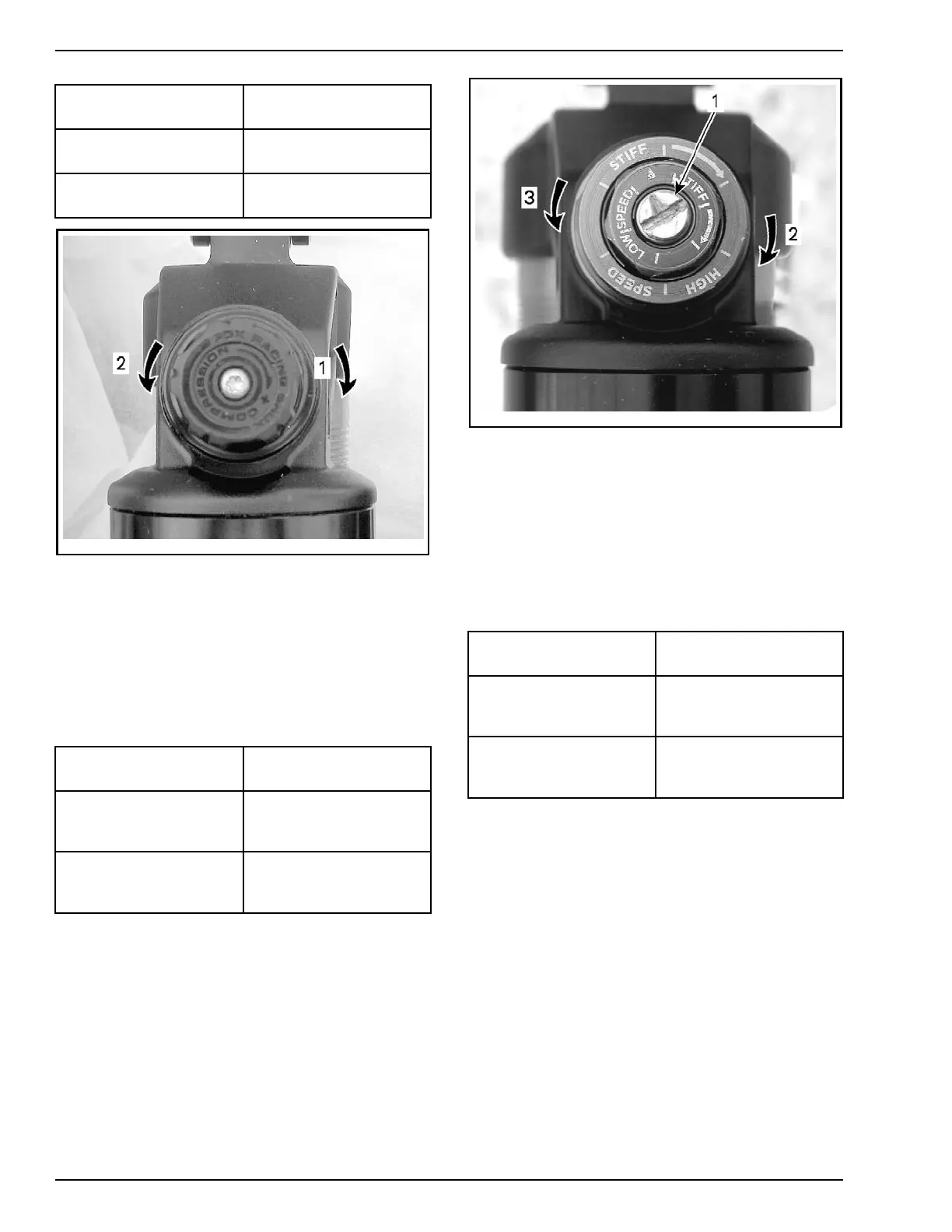

BRP MAX Series - Page 28

ADJUSTMENTS
ACTION
RESULT ON BIG
BUMPS
Increasing com
pression
damping force
Firmer compres
sion
damping
Decreasing compression
damping force
Softer compre
ssion
damping
tbl2013-009-047_a
TURN CLICKER TO ADJUST
1. Increases damping (stiffer)
2. Dec reases damping (softer)
Low Speed Compression Damping
X rs DPS Models
Low speed compression damping controls how
the shock absorber reacts to a low suspension ve-
locity (slow compression strokes, in most cases
when riding at lower speeds).
ACTION
RESULT ON BIG
BUMPS
Increasing low speed
compres
sion damping
force
Firmer compression
damping
(slow
compression)
Decreasing low speed
compression damping
force
Softer c
ompression
damping (slow
compression)
tbl2013-009-048_a
LOW SPEED COMPRESSION DAMPING (USE A SCREWDRIVER)
1. Low speed adjuster
2. Increases damping (stiffer)
3. Decreases damping (softer)
High Speed Compression Damping
X rs DPS Models
High speed compression damping controls how
the shock absorber reacts to a high suspension
velocity (quick compression strokes, in most
cases when riding at higher speeds).
ACTION
RESULT ON SM ALL
BUMPS
Increasing high speed
compression damping
force
Firmer compress ion
damping (fast
compres
sion)
Decreasing high speed
compression damping
force
Softer compression
damping
(fast
compression)
