UNCRATING
tbl2014-007-103_a
PROTECTIVE WRAPPING REMOVAL

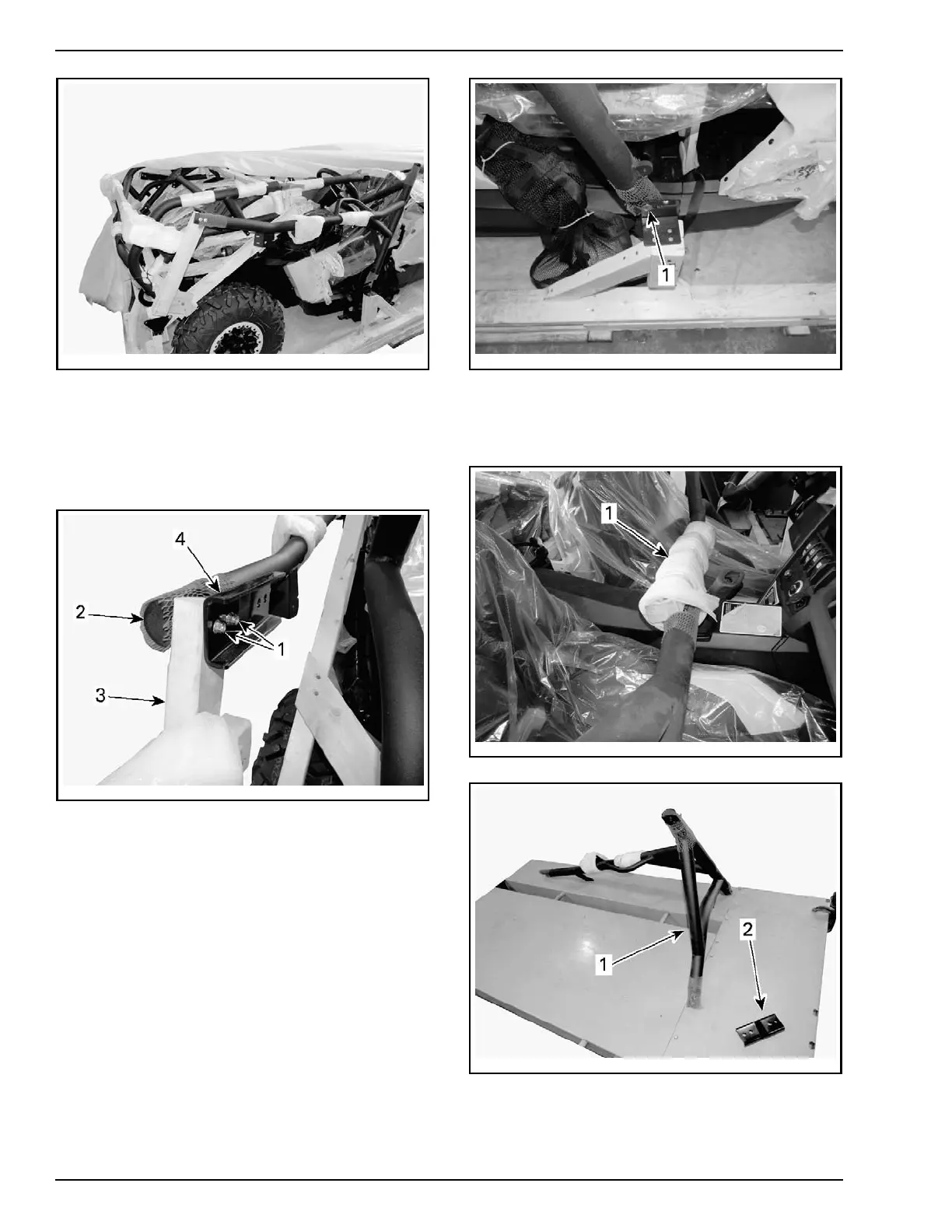

2. Remove middle sections of the cage and rear
cage extensions from crate.
2.1 Remove front-most retaining screws and
nuts securing middle section and rear cage
extension plate from wooden sub-crate.
tbl2014-007-106_a
1. Retaining screws to remove
2. Middl
e section of cage
3. Sub-crate
4. Rear cage extension plate
2.2 Remov
e rear screws holding middle cage
to bo
ttom of crate.
tbl2014-007-107_a
1. Retaining screw to remove
2.3 Remove a nd discard wooden block and
fasteners holding left and right middle
sections together.
tbl2014-007-108_a
1. Woode
n block to re move and discard
tbl2014-007-109_a
1. RH Middle Section of cage
2. Rea
r RH cage extension
4 / 34 2014-1 PREDELIVERY
