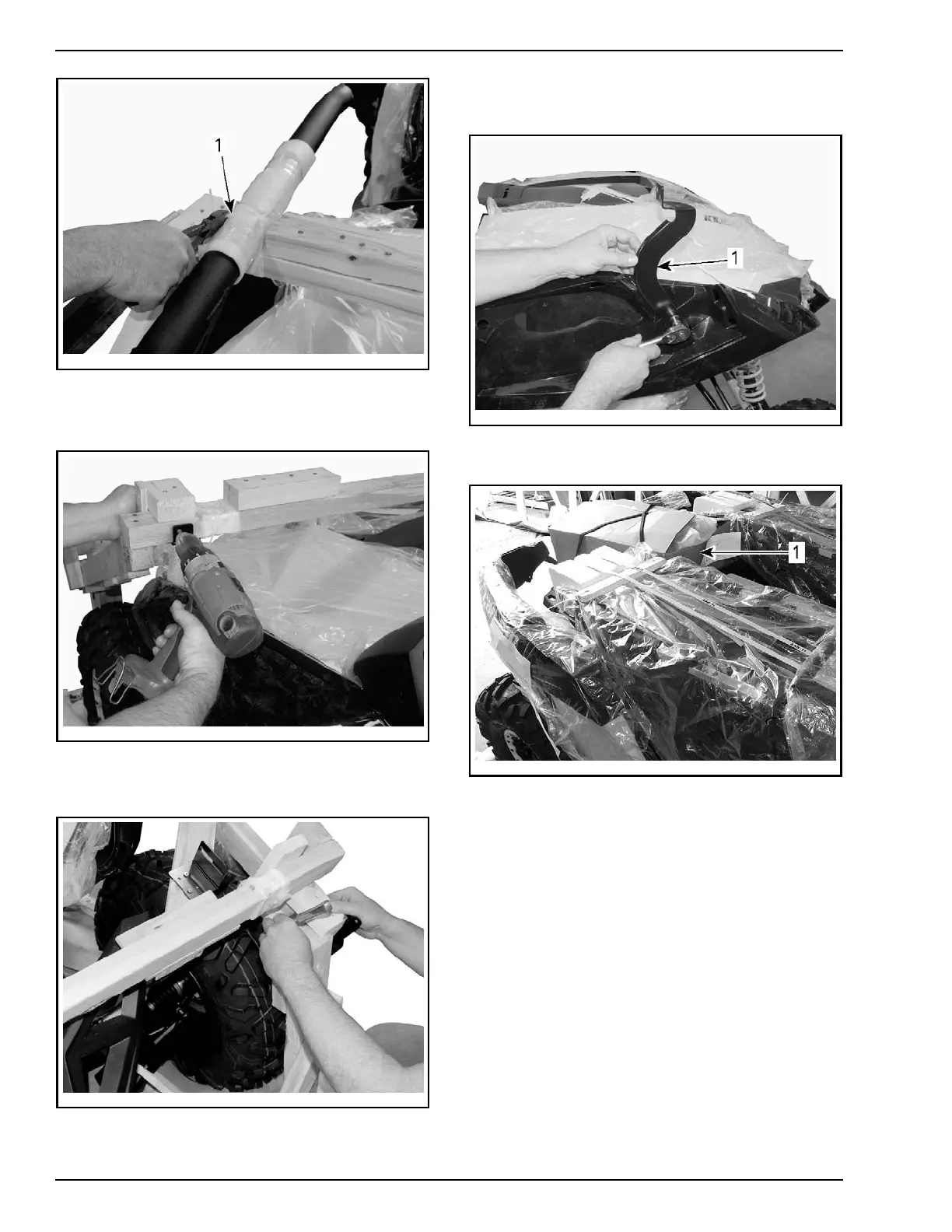

UNCRATING
tbl2014-007-114_a
1. Locking tie to cut
5. Remove sub-crate.
5.1 Remove screws located rear of sub-crate.
tbl2014-007-115_a
REMOVING SCREWS LOCATED AT REAR OF SUB-CRATE
5.2 Remove
nut located at front of sub-crate
and rem
ove sub-crate.
tbl2014-007-116_a
REMOVING NUTS LOCATED AT FRONT OF SUB-CRATE
5.3 Remove steel supports from the front
fenders. Discard fasteners and supports.
tbl2014-007-122_a
1. Steel supp
orts
6. Remove predelivery kit box from vehicle.
tbl2014-007-205_a
1. Predelivery kit box
7. Remove rear seats from vehicle.
7.1 Adjust steering wheel to its upper position.
7.2 Cut two straps located above seats.
6 / 34 2014-1 PREDELIVERY
