Bruker ultraflex Series User Manual

3 Switching Off and Opening the Instrument Bruker Daltonik GmbH

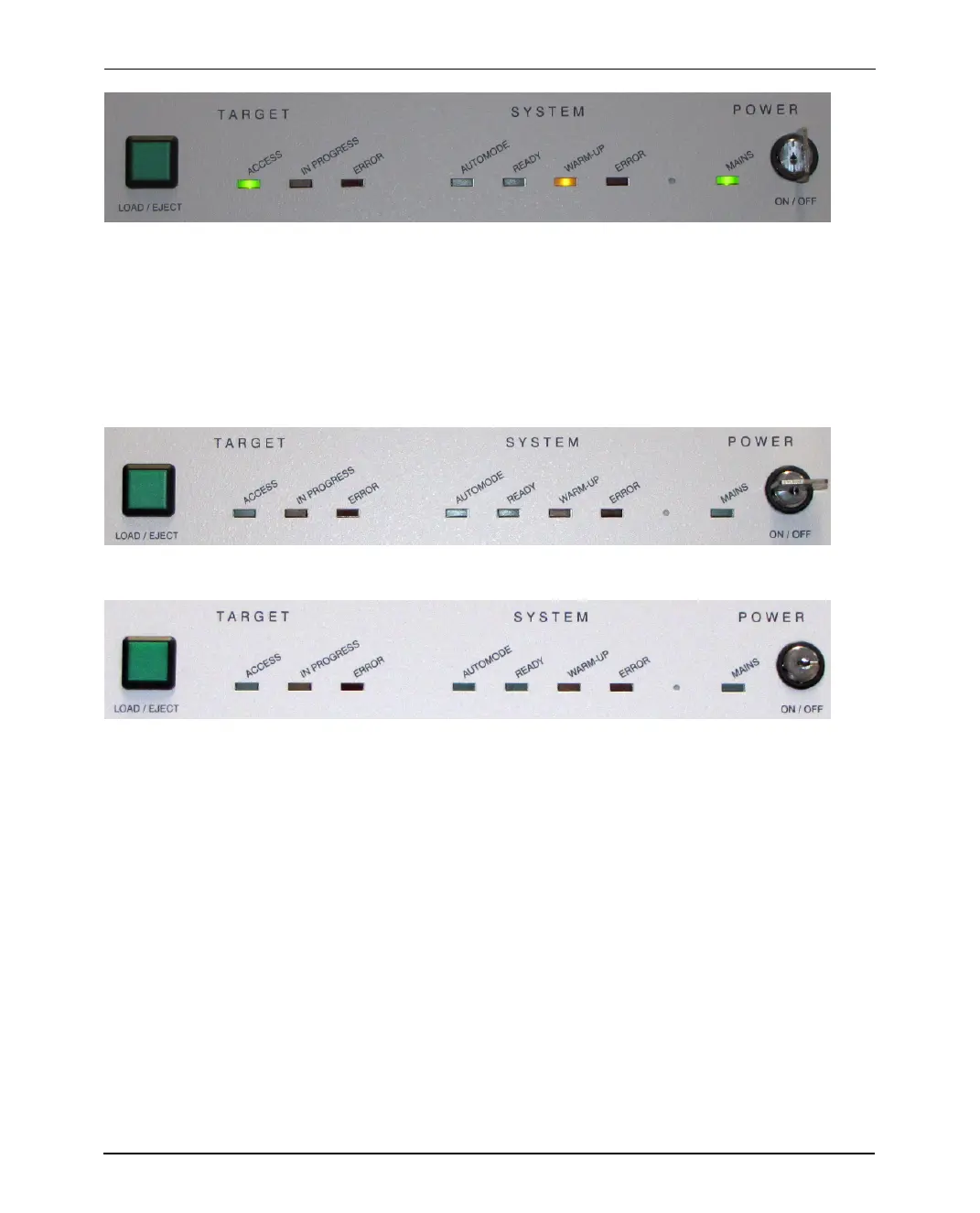

Figure 3-2 Control panel — instrument switched on, key is vertical
l Switch off the instrument at the key-switch on the control panel at the front of
the ultraflex.
o
Turn the key one quarter turn counterclockwise to the horizontal position.
o
The pumps, the high voltage, and the lasers are now switched off.
Figure 3-3 Control panel — instrument switched off, key is horizontal
Figure 3-4 Control panel — key removed
Page 20 of 44 ultraflex Series Cleaning Manual Revision 2
