Description 1
12
ekr 500 web guiding controller EDV No.: MD.299.01.06 Chapter: 1
with removable control panel Date: 29.07.08 Page: 8/86

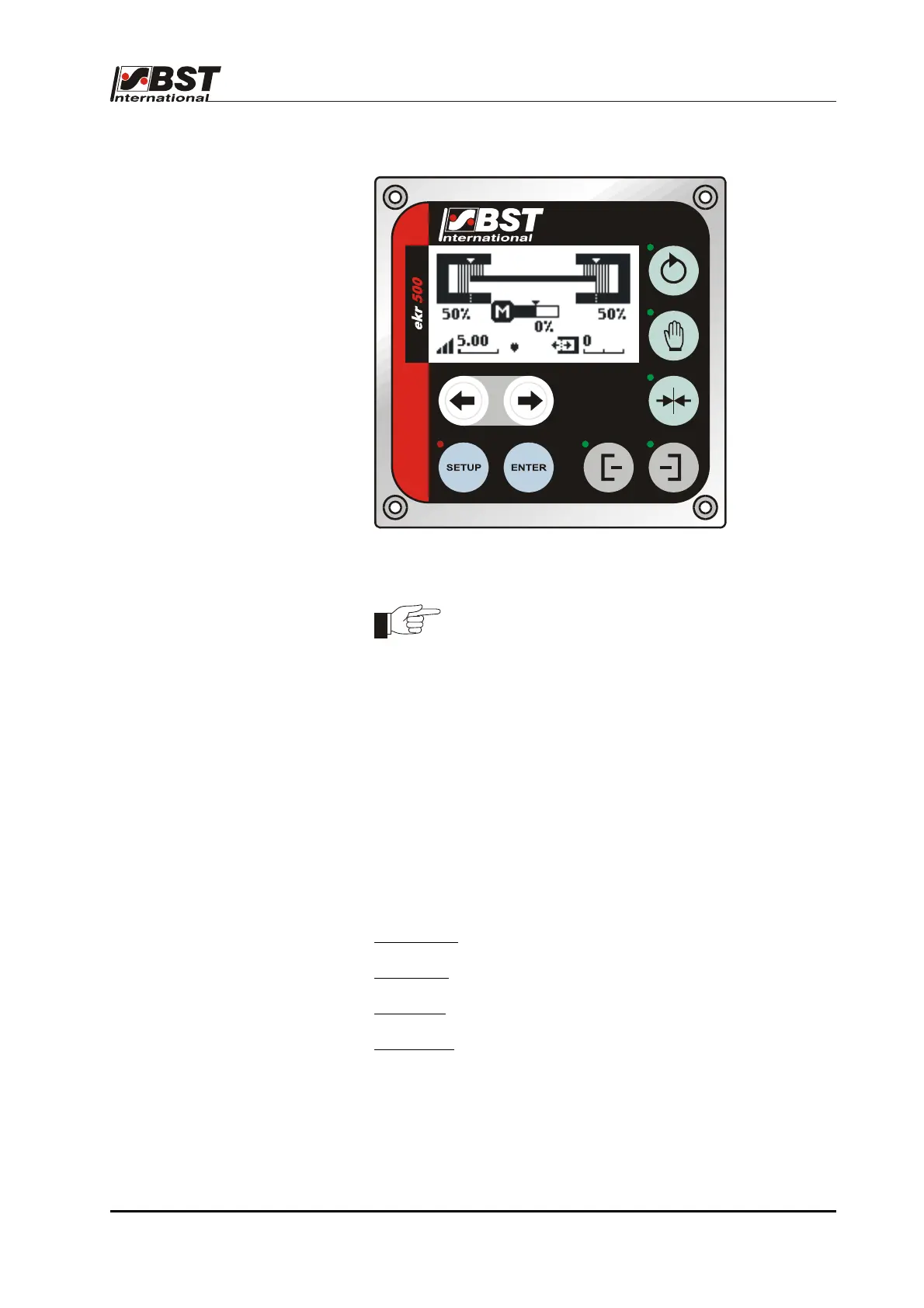

1.6 Control panel
The control panel contains all of the operating and display controls
needed to operate the web guiding system.
The signal settings on the controller’s remote
control inputs block any keys on the control panel
that have counter functions.
1.6.1 Graphical display
The different operating statuses and all the relevant control
parameters are displayed on the control panel’s graphics display
during operation.
The symbol significances are described in chapter 7.1.
1.6.2 Control panel
Located on the control panel are four different key groups that
have the following functions:
Green keys:
Operating mode selection
Grey keys:
Guiding mode selection
Blue keys:
Setup mode
White keys:
Manual positioning of the guiding device,
Guiding setpoint and gain adjustment,
Changing of parameter values
You will find the separate key significances listed in the table on
the following page.
