BT LPE200 - Hydraulic;Pneumatik - 6000 LWE 180;200 LPE 200

Hydraulic/Pneumatik – 6000 LWE 180/200 LPE 200
General
Order number Date Valid from serial number T-code
225553-040 2005-05-11 723984- 660, 661, 662, 497
© BT Europe AB Service Guide LWE180, LWE200, LPE200, LPE240 11- 1
11- Hydraulic/Pneumatik – 6000
LWE 180/200 LPE 200
11.1 General
To avoid functional problems with the lowering valve (Y41), such as
unintentional lowering of forks, the valve must be cleaned and the func
-
tion checked before replacing the valve.

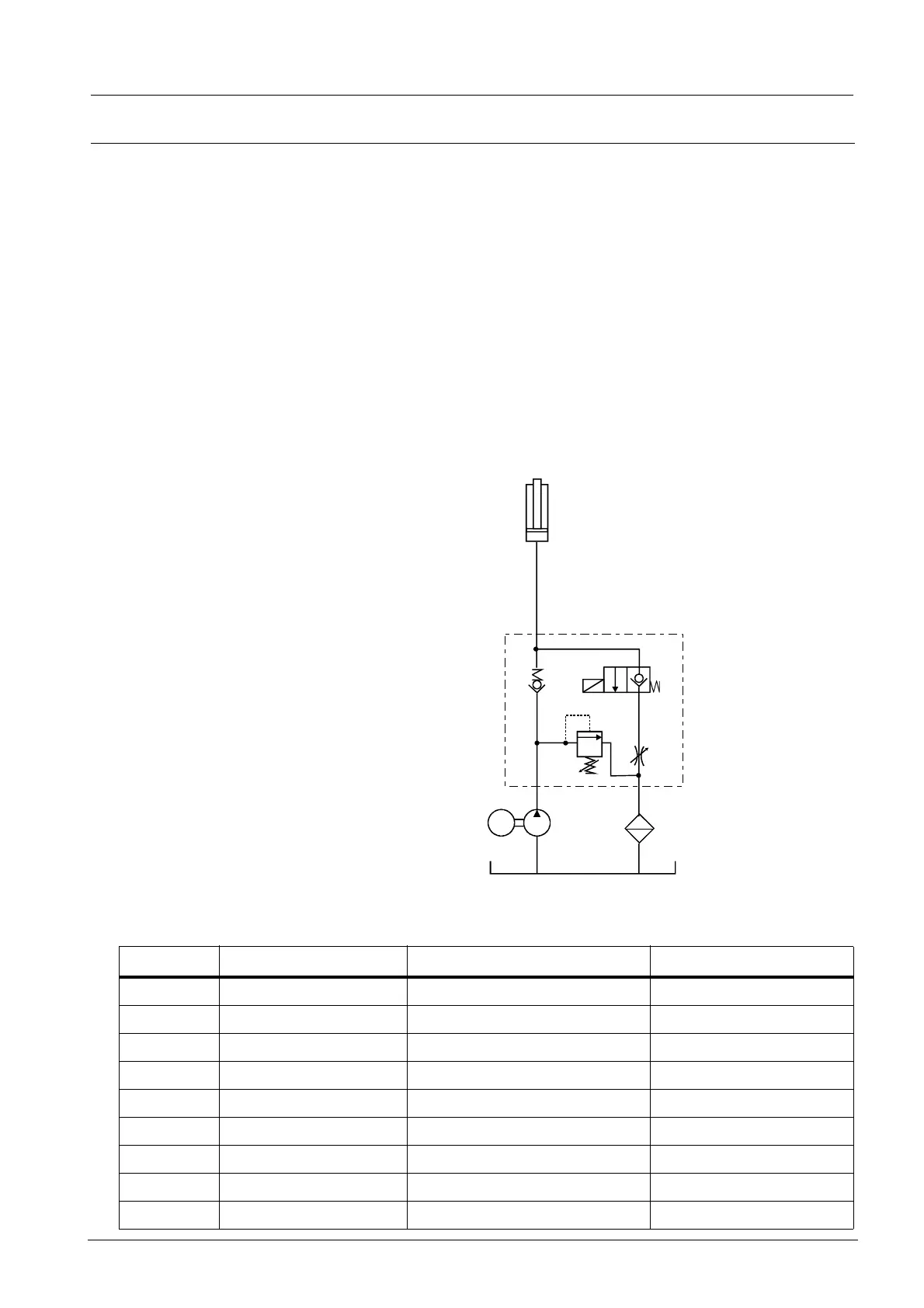

11.2 Hydraulic chart and list of symbols
LWE180, LWE200
n
11.2.1 List of Symbols
Pos No Description Function Remarks
1 Lift cylinder Lifting the forks
2 Preasure relief valve
3 Flow control valve
4 Non-return valve
5 Filter
M3 Motor Pump motor
P Pump
T Tank 1,2 litre (B20 0,5 litre)
Y41 Valve Lowering valve for the forks
Y41
A
4
3
5P
T
2
1
M3
