2.4 SYMBOLS SHOWN ON LCD
CONTROL
Indicates that the device and sensor identification has been executed and the
system is in control status
PROGRAM
Indicates that the operating parameter programming by the User is in progress
P1
Indicates that the communication with TS55/TMS sensors is active
P2
Indicates that the communication with Diaper Feeder devices is active
P3
Indicates the exclusion signal status (ON = exclusion activated)

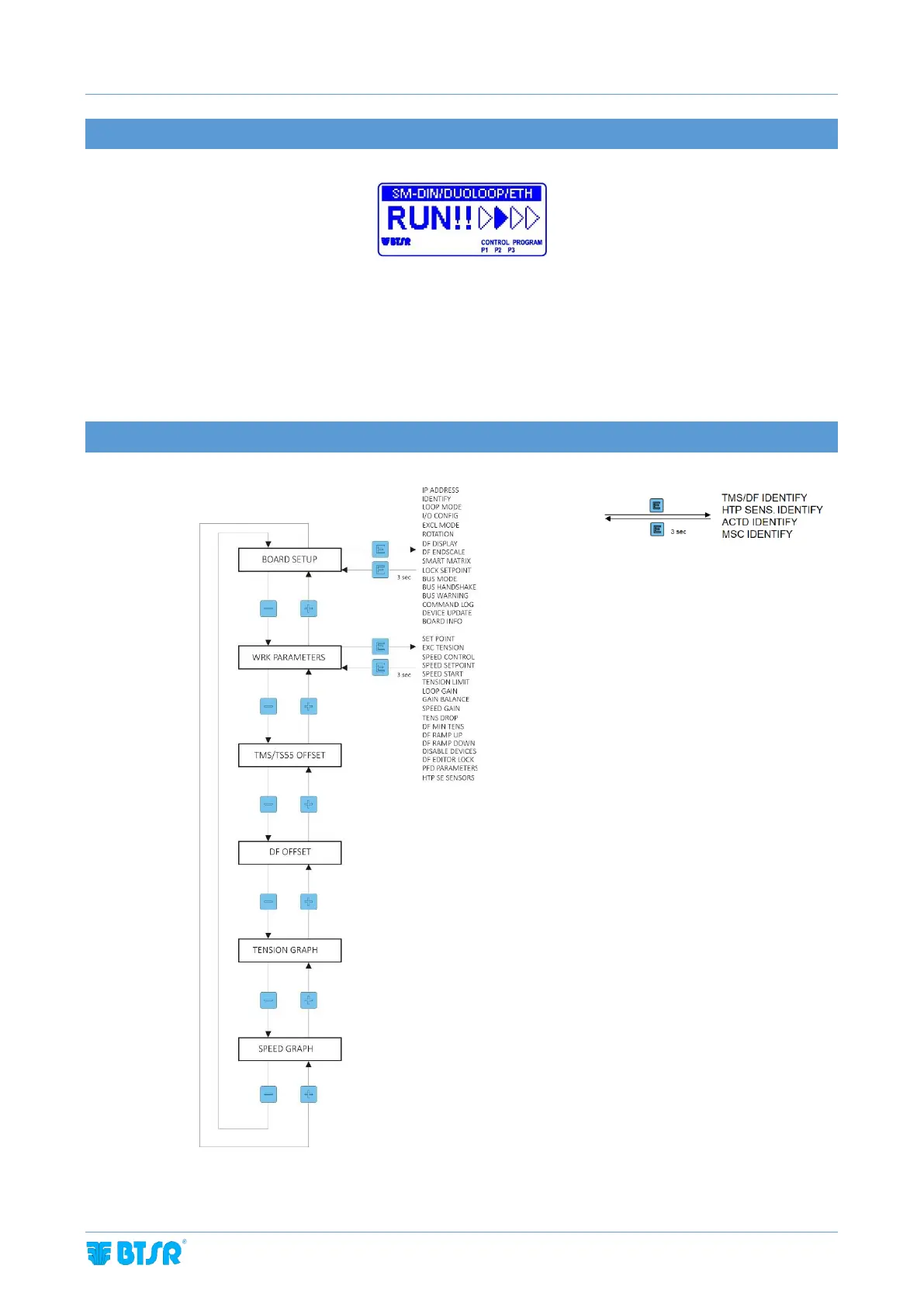

2.5 MENU STRUCTURE
(*) If DUOLOOP has been set on the LOOP
MODE menu item, then the wording TS55
OFFSET will appear; if MULTILOOP has been
set, then the wording TMS OFFSET will
appear.
(*)
