Installation and Connections
SM-DIN/MULTILOOP.. - 2.13 -

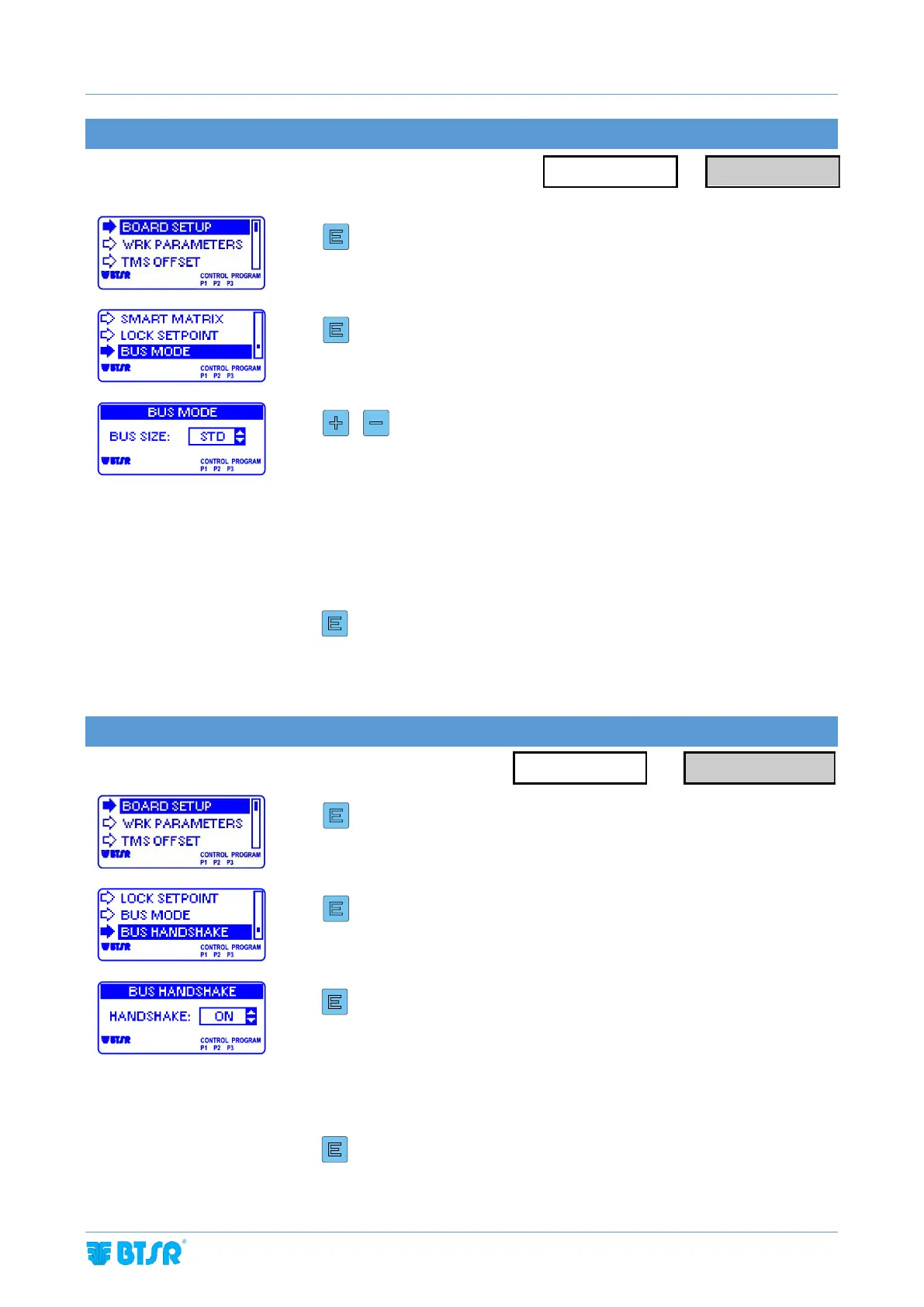

BUS MODE
(Debug/Service option)
Enter the BOARD SETUP menu.
Select BUS MODE
/
To change the parameter value
STD = Standard Buffer size
EXT = Extended Buffer size for dedicate speed detection data buffer
(additional communication bytes are enabled, see dedicated SMDIN
Communication Protocol)
3 sec to confirm and go back to BOARD SETUP menu
BUS HANDSHAKE
(Debug/Service option)
Enter the BOARD SETUP menu.
Select BUS HANDSHAKE
to go back to BOARD SETUP menu
ON = Enables feedback in communication with PLC
OFF = Disables feedback in communication with PLC
3 sec to confirm and go back to BOARD SETUP menu
BOARD SETUP
→
BUS MODE
BOARD SETUP
→
BUS HANDSHAKE
