Installation and Connections

SM-DIN/MULTILOOP.. - 2.9 -

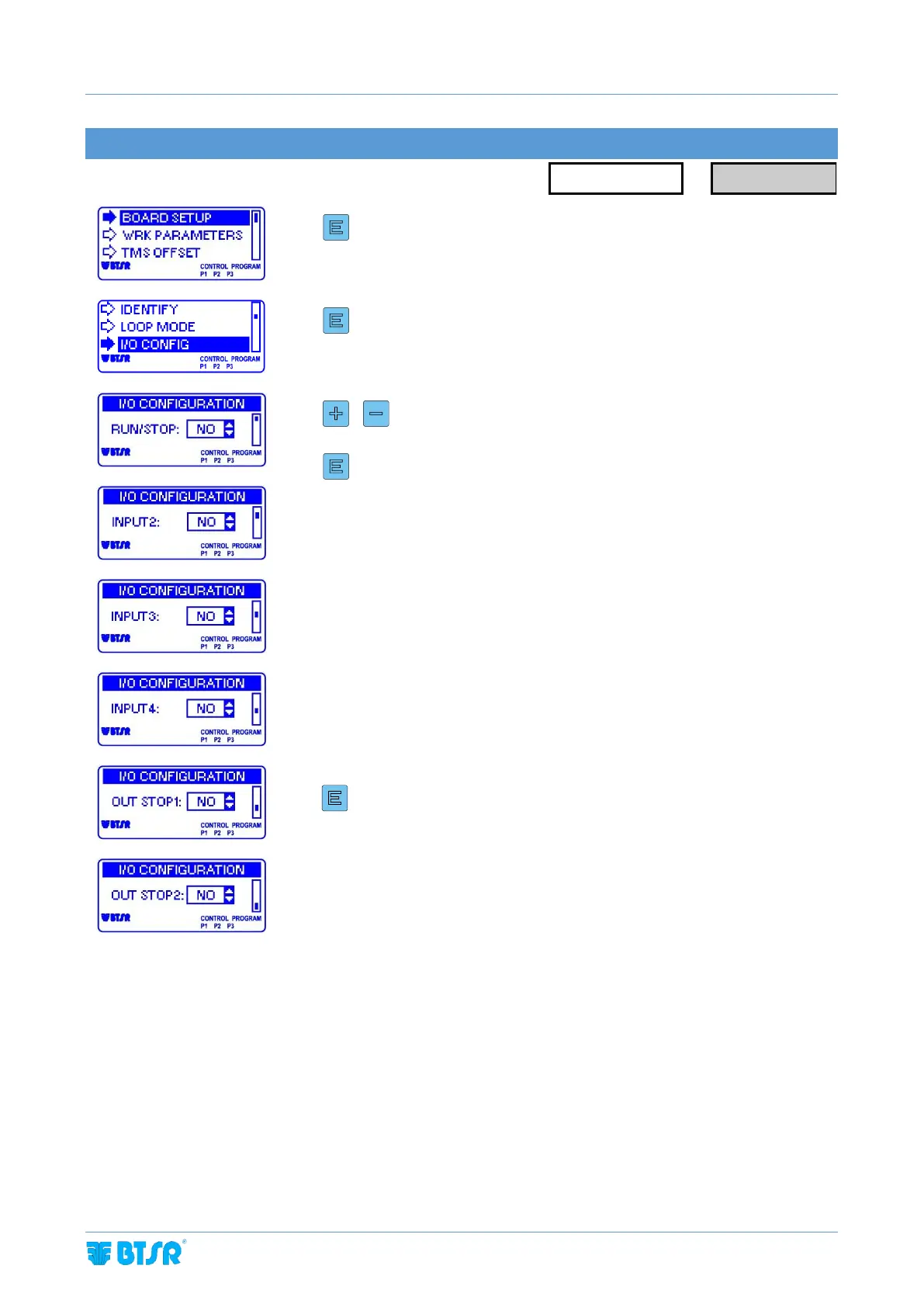

I/O CONFIGURATION

Enter the BOARD SETUP menu.

Select I/O CONFIG.

To change the parameter value. (NO = Normally Open; NC =

Normally Closed)

To go to next parameter

Currently, the only signals used by the application are: RUN/STOP (exclusion signal),

OUT STOP1 (alarm signal) and OUT STOP2 (warning signal)

3 sec to confirm and go back to BOARD SETUP menu

BOARD SETUP

→

I/O CONFIG
