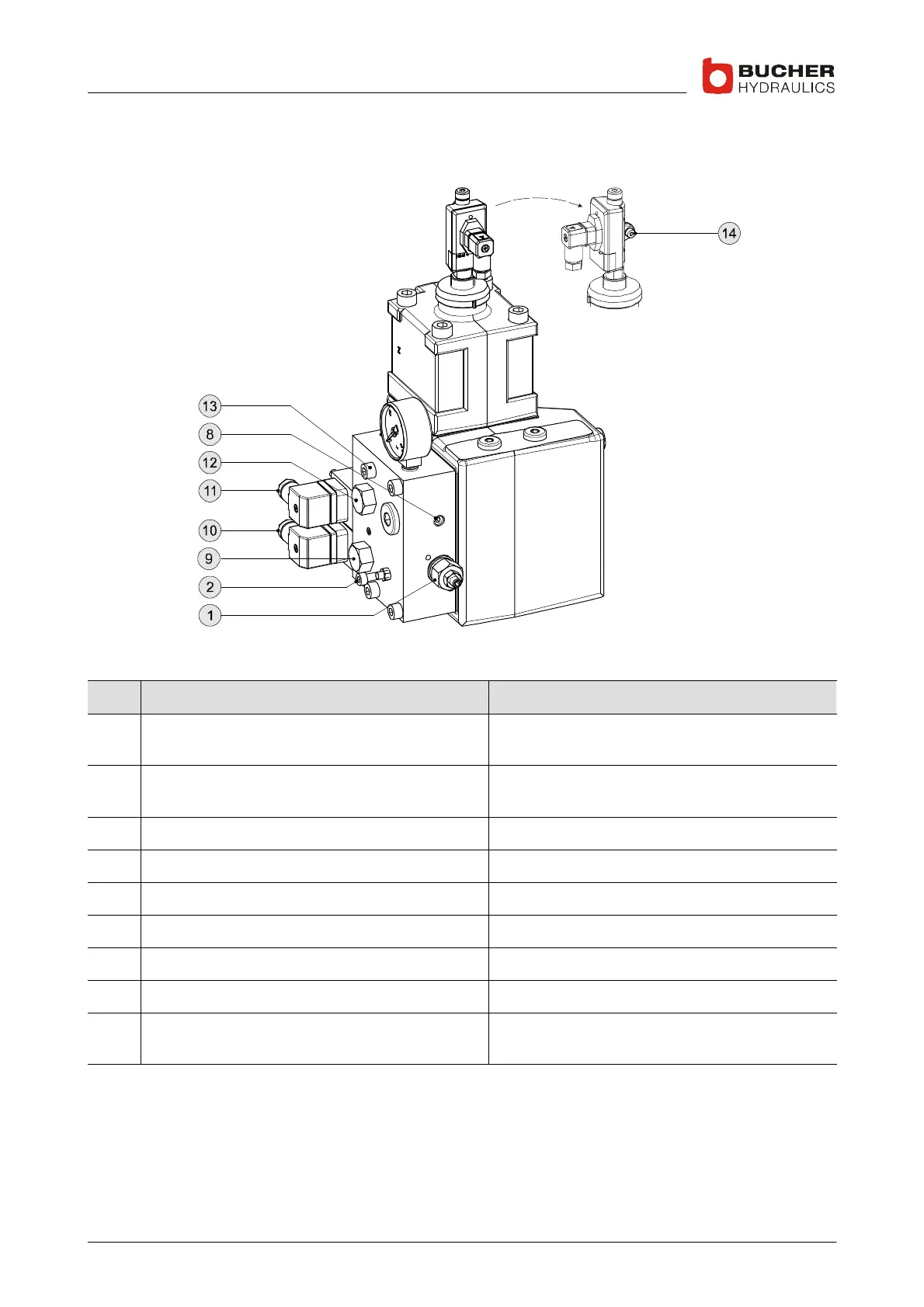

CLRV lift control valve Operating controls and indicators
35/92
300−I−9010212−E−10/08.08
3 Operating controls and indicators
300−7−10012261
It. Description Tools
1 Maximum−pressure setscrew
(Screw À)
1 x open−ended spanner, 13 A/Fmm
Allen key, 4mm A/F
2 Bypass−pressure setscrew
(Screw Á)
Open−ended spanner, 10 A/Fmm
Allen key, 5mm A/F
8 Pressure gauge shut−off screw Allen key, 4mm A/F
9 Filter screw, UP Open−ended spanner, 22 A/Fmm
10 UP solenoid Allen key, 3mm A/F
11 DOWN solenoid Allen key, 3mm A/F
12 Filter screw, DOWN Open−ended spanner, 22 A/Fmm
13 Pilot plate Allen key, 6mm A/F
14 Adjusting/clamp screw for Hall sensor / mech.
null point
Allen key, 3mm A/F
