C−LRV lift control valve Maintenance
91/92
300−I−9010212−E−10/08.08

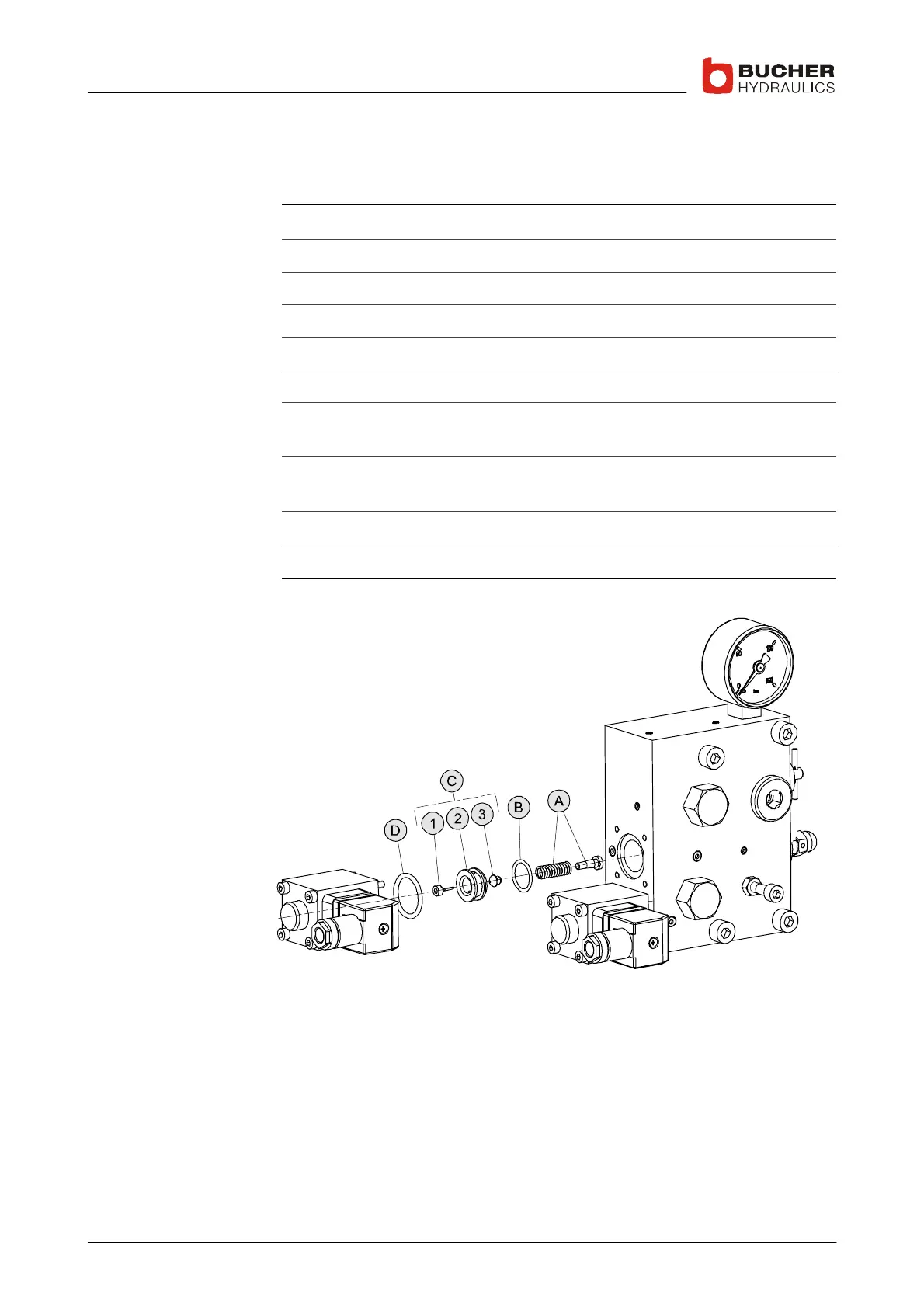

6.3 Installation guide for DOWN pilot valve
Exchanging the DOWN pilot valve
1. Switch main switch OFF
2. Close the ball valve
3. Vent all pressure in the valve block (manual lowering valve)
4. Remove solenoid and the A and C parts
5. Assemble the A parts and insert them in the bore
6. Insert O−ring (B)
7. Assemble the C parts, then insert the unit in the bore. Make sure
that the stem of the cone (3) is clearly engaged in the spring
8. Insert O−ring (D) and fit the solenoid
I If needle (1) slips out of the bush (2), start again from step 7.
9. Open the ball valve.
10. Switch main switch ON
The new DOWN pilot valve is ready for use
