Bucher C-LRV Series User Manual

C−LRV lift control valve Installation and commissioning
55/92
300−I−9010212−E−10/08.08

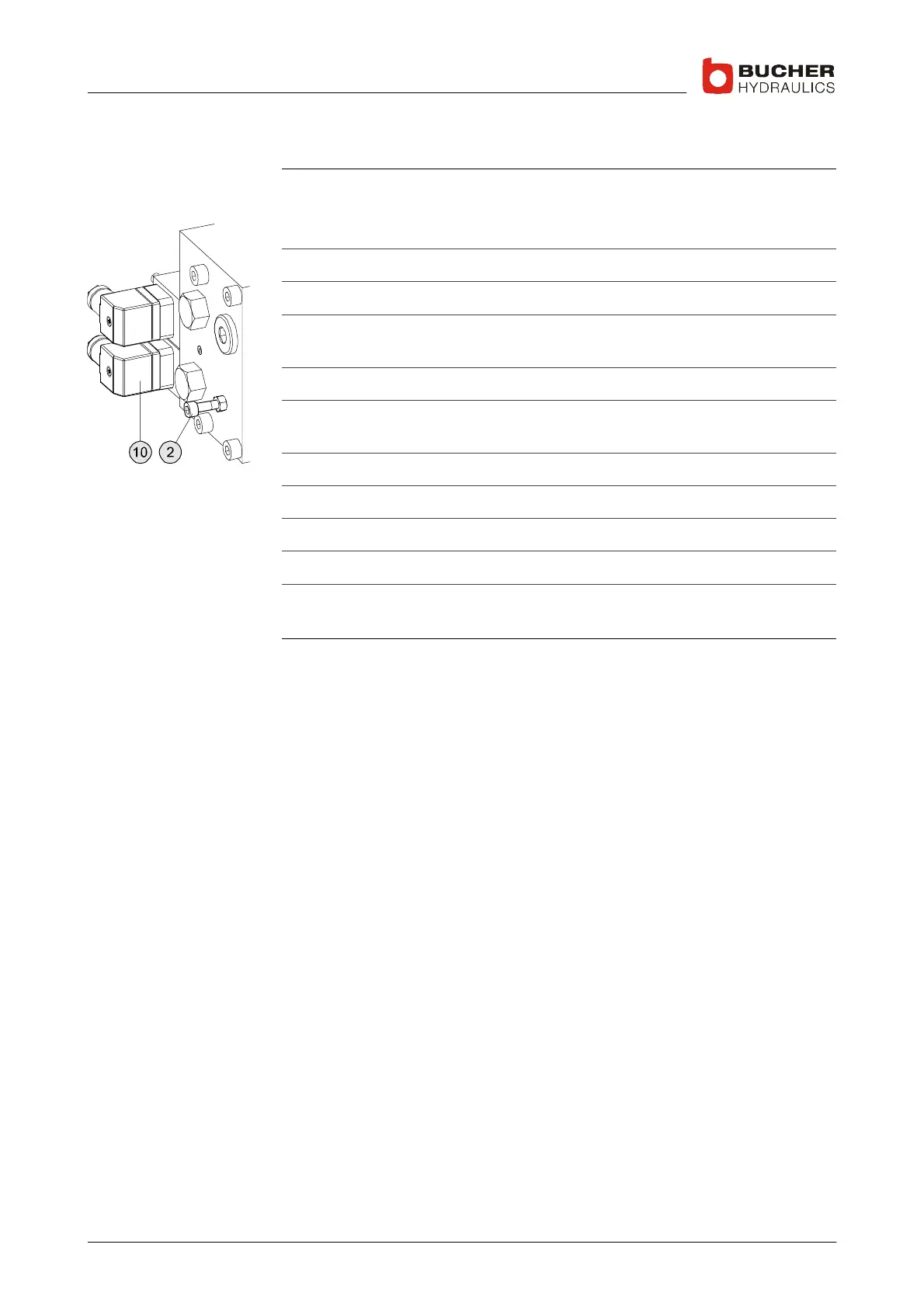

Setting the bypass pressure with the car in sight
1. Set the "SIU Type" parameter in the C−DELCON to "Off"
I make a note of the existing setting
I ⇒ Page 71, Section 5.1.4.2
2. Remove the UP solenoid plug (10)
3. Slacken the locknut for bypass−pressure setscrew (2)
4. Unscrew bypass−pressure setscrew (2) approx. 2 turns
counterclockwise
5. Send UP command
6. With motor running, slowly turn bypass−pressure setscrew (2)
clockwise until the car moves
7. Turn bypass−pressure setscrew (2) half a turn counterclockwise
8. Tighten the locknut for bypass−pressure setscrew (2)
9. Cancel the UP command
10. Refit the UP solenoid plug (10)
11. Reset the "SIU Type" parameter in the C−DELCON to the setting
noted down in Step 1.
The bypass pressure is now set
