In summary, the Pro2 range comprises the following instruments:
Instrument Part Number User Interface Output
DCCT Pro2 Integral – Single Output 6002-0098 5-button, 4-colour digital 1 output 0.9-40kV 340µA
DCCT Pro2 Integral – Dual Output 6002-0099 5-button, 4-colour digital 2 outputs 0.9-40kV 340µA
DCCT Pro2 Command + unit 6002-0100 5-button, 4-colour digital none
DCCT Pro2 Single Channel Output Unit 6002-0101 3 indicator leds & sounder 1 output 0.9-40kV 340µA
DCCT Pro2 Dual Channel Output Unit 6002-0102 6 indicator leds & sounder 2 outputs 0.9-40kV 340µA
The digital interface is configured to control and monitor up to four output stages. The output stages
will automatically have the same set output voltage, and the same alarm threshold. The alarm settings
are likewise common to all output stages.
The interface incorporates a digital counter for each output stage, and these may be cleared
individually or collectively. A flaw detected by any output stage will trigger its own alarm, and relay,
and will trigger the counter and alarm on the user interface. Further details of alarm settings are
provided below.

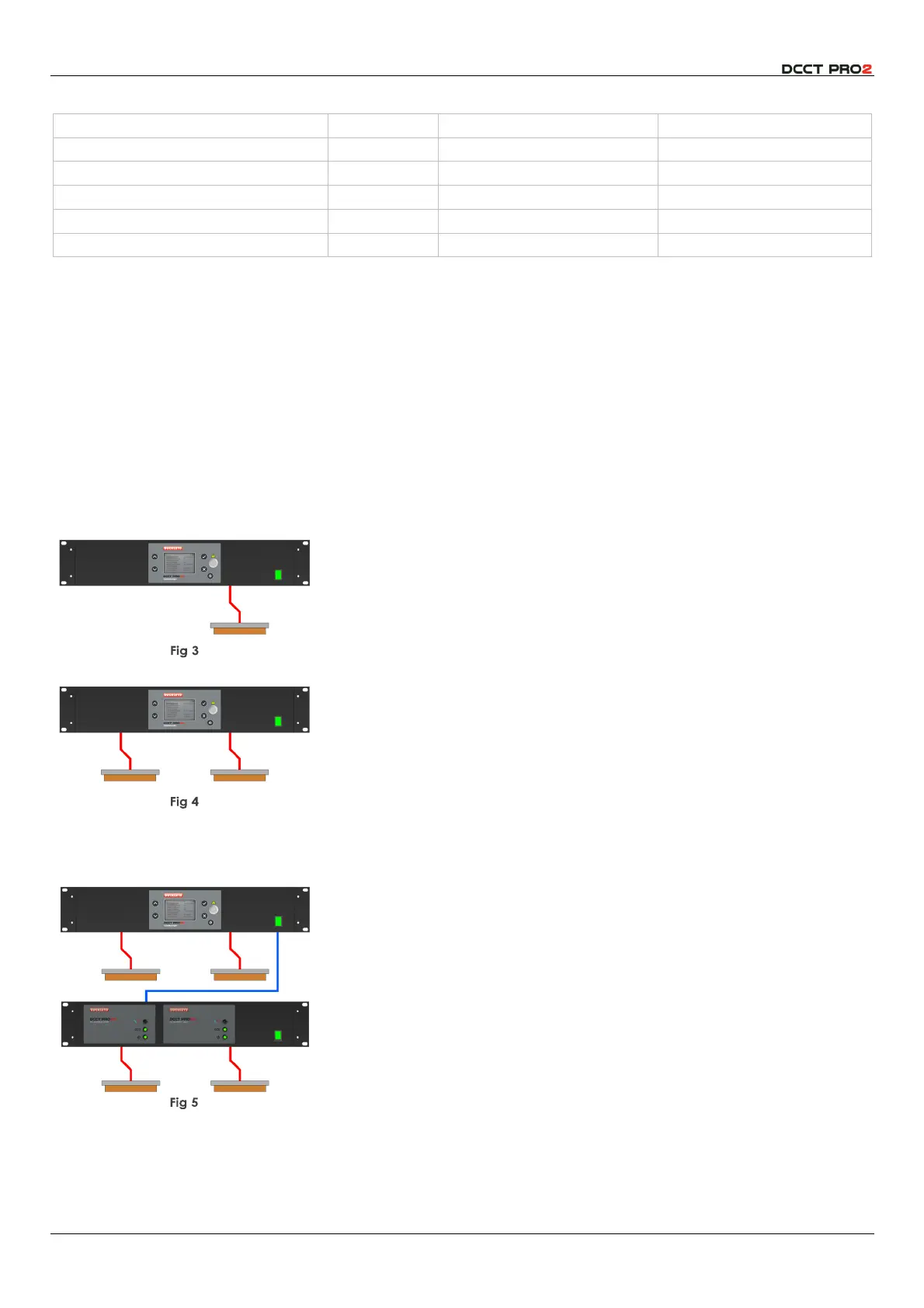

Multi-instrument Configuration Examples
Given the inherent flexibility and networking capability of the Buckleys Pro2 instrument range, the
following examples may be helpful:
This simple arrangement of the Integral Single Channel
(6002-0098)
replaces previous generation units, but offers significantly greater
output power, and enhanced control and interface options. The
unit is provided with two zero-volt relay outputs to control external
alarms, paint markers or other peripherals. See Fig 3.
This Integral Dual Channel
(6002-0099)
instrument provides two output
modules within the same housing, meeting the demand for higher
currents, or where it is necessary or convenient to use two separate
electrodes.
The output voltage and alarm threshold are identical for both
channels, but the fault counter and output control functions of each
channel are independent. See Fig 4.
Where multiple DCCT output stages are required without remote
control, the integral unit can be connected to single or dual output
stages.
This example comprises an Integral Dual Channel
(6002-0099)
and a
Dual Channel Output module
(6002-0102)
, and this arrangement
allows the system to be extended to provide three or four outputs.
The controller and the output stages are each provided with
independent interface capability to drive alarms / paint markers /
etc. See Fig 5.
