5.3 Checking and replacing parts
5.3.1 Unblock the 800 Series
Each time a fault has been rectified, push the “reset”
button (fig. 53) and keep it pressed for five seconds. A
letter “r” will appear on the display. After five seconds,
the display returns to “0”. This unblocks the UBA and
returns it to standby mode.
5.3.2 Chimney sweep mode
Certain troubleshooting tasks must be carried out with
the
800 Serie in heating mode. When doing so, the chimney
sweep switch should be set to “1”.
Remember to return the chimney sweep switch to “0”
once work is complete.
 Remove cover of control level 2.
 Set chimney sweep switch (fig. 54) to “1”.
5.3.3 Checking the fuses
 Disconnect the system from the power supply.
 Swivel the UBA to one side.
 Check fuse for throughput or carry out visual
inspection (fig. 55, items 1, 2 and 3).
If defective, fit new fuse (1.25 AT).
 Connect system to mains power supply.

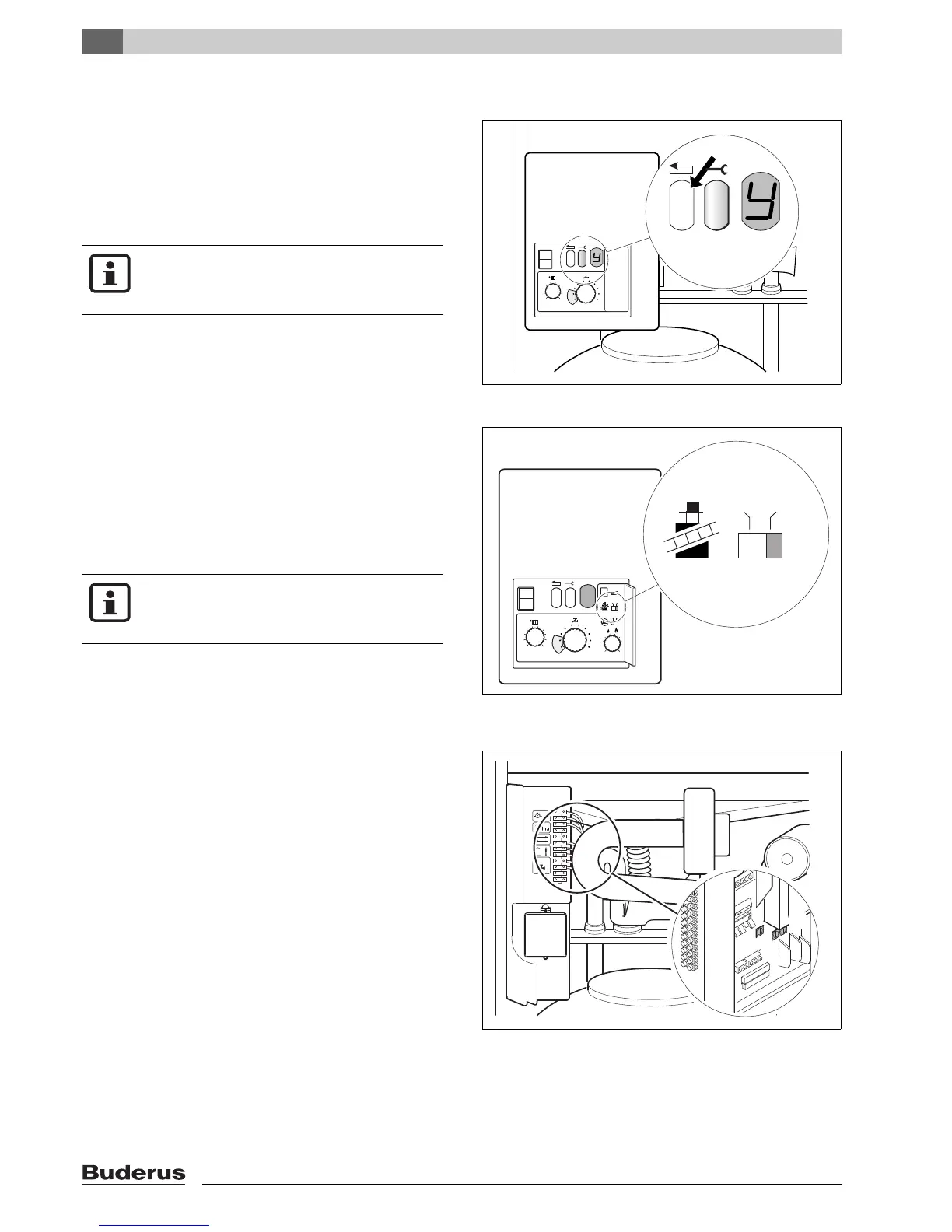

fig. 53 “Reset” button
display
service
reset
pump
reset
servi
12
10
01
11
KW
10
1
10
1
I
0
1
NOTE
The system cannot be unblocked by
disconnecting at the master switch.
fig. 54 Chimney sweep switch
12
10
01
11
KW
10
1
10
1
01
1
I
0
NOTE
The system cannot be used for heating
water while it is in chimney sweep mode.
fig. 55 Checking the fuses
