Product description
Logano G234X – 6 720 804 886 (2012/08) 5
2.3.1 Other important information
• The installation of a boiler must be notified to and approved by the
relevant gas utility company.
• Only operate the boiler with the combined air/flue system specifically
designed and approved for it.
• Regional approvals with regard to the flue system may be required.
2.4 Tools, materials and equipment
For the installation and maintenance of the boiler, you will need the
standard tools used for central heating and gas and water systems plus
set of a metric wrenches and Allen wrenches
The following may also prove useful:
•Pipes for transport
• Wood battens
• Cleaning brushes and/or chemical cleaning agent for wet cleaning
2.5 Disposal
▶ Dispose of boiler packaging in an environmentally-responsible
manner.
▶ All heating system components that have to be replaced should be
disposed of in environmentally-responsible manner at an authorized
disposal site.
2.6 Product description
The boiler is a low temperature gas boiler.
The boiler consists of the following main components:
• Ignition module and adjustable boiler temperature controller
• Boiler jacket and front door
• Boiler block with insulation
•Burner
The ignition module and adjustable boiler temperature controller
monitor and control all electrical and operational components of the
boiler.
The boiler jacket prevents energy loss and acts as soundproofing.
The boiler block transfers the heat generated by the burner to the
heating water. The insulation reduces energy loss.

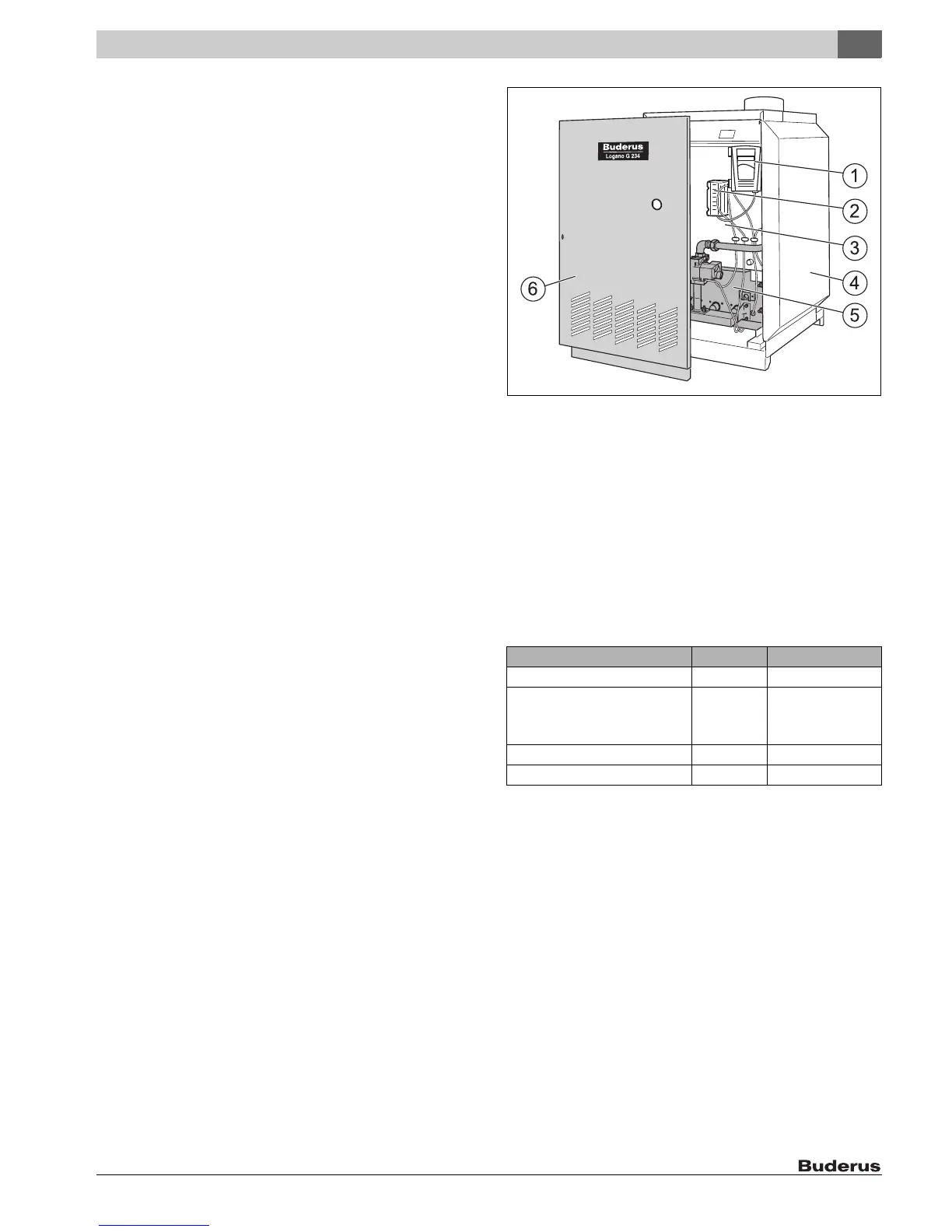

Fig. 1 G234X boiler
[1] AquaSmart
TM
[2] Burner control unit
[3] Boiler block with thermal insulation
[4] Boiler casing
[5] Burner
[6] Front panel of boiler
2.7 Package Contents
▶ After delivery, check all packaging for perfect condition.
▶ Check the delivery for completeness.
The boiler is supplied in one packing unit with the mounted boiler casing,
gas burner and gas fitting, and technical documentation.
All accessories can be ordered optionally from Buderus:
•Heating pump
•Cleaning brush
Component Qty Packaging
Boiler 1 Pallets/box
• 90°-elbow (¾ " NPT)
• Safety valve
• Drain valve (¾ ")
1Box
Vent Damper 1 Box
Technical documentation 1 Foil package
Table 2 Package Contents
6 720 804 886-01.1T
