Buderus Logano G234X Service Manual

2
Product description
Logano G234X – 6 720 804 886 (2012/08)6
2.8 Dimensions and specifications
2.8.1 Logano G234X dimensions

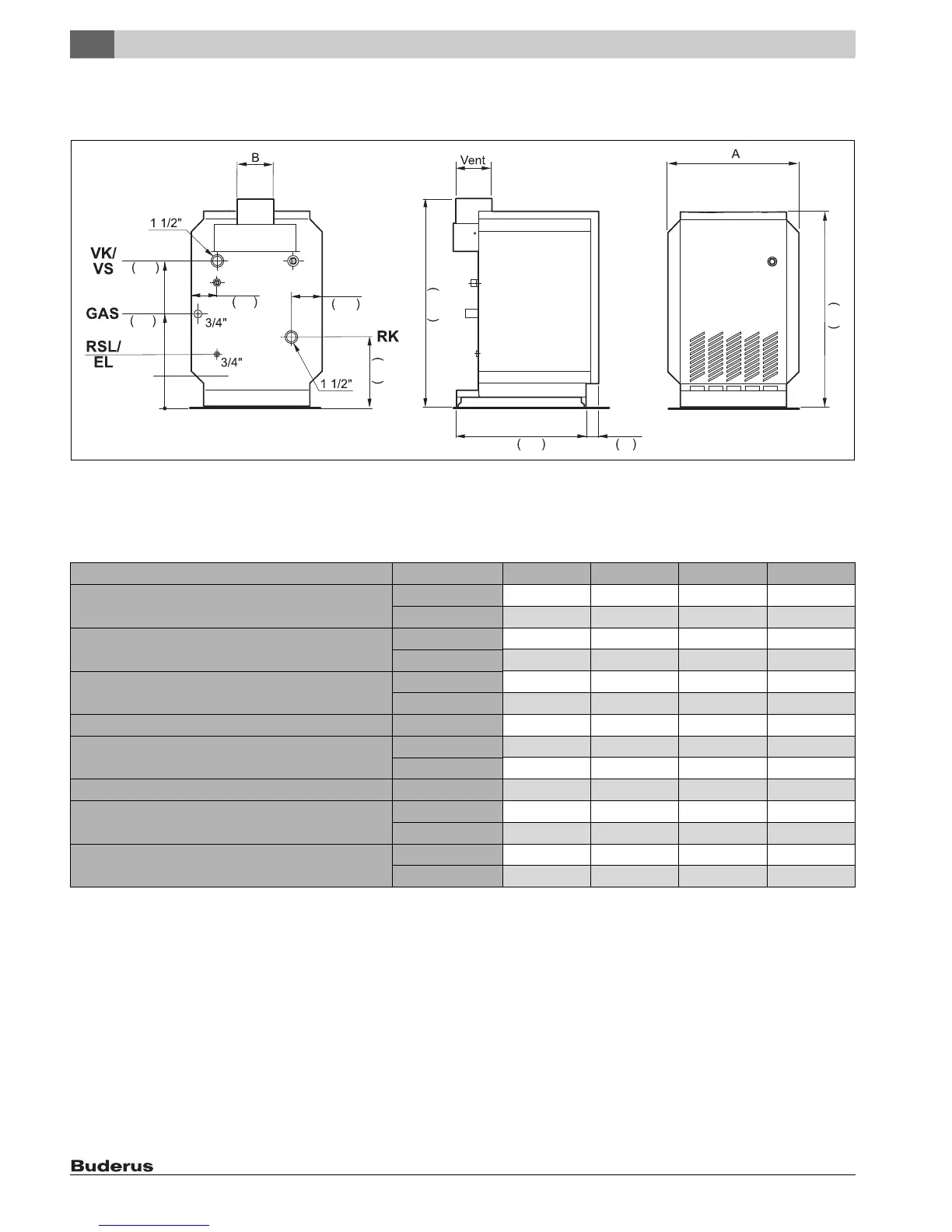

Fig. 2 Connections and dimensions for Logano G234X, dimensions in inches (dimensions in mm)
[VK/VS]Boiler supply/Storage tank supply
[GAS] Gas connection + main isolating valve
[RK] Boiler return
[RSL/EL] Return safety line/draining
6 720 804 886-02.2T
729
465
137
147
348
650 66
1034
975
18 5/16
28 7/16
25 10/16
2 10/16
5 7/16
38 7/16
13 11/16
40 11/16
5 13/16
Boiler capacity Unit 38/5 45/5 55/6 64/7
Ignition heat load
MBtu/hr 160 187 228 266
kW 46.9 54.8 66.8 78.0
Nominal output
MBtu/hr 130 154 188 219
kW 38 45 55 64
Dimension A
Inches 25.6 25.6 29.1 32.7
mm 650 650 739 831
Vent Inches 7778
Minimum capacity of the safety relief valve
lb/hr 130 153 188 218
kg/h 59 69 85 99
Number of burner rods Qty 3 3 4 4
Water volume
US gal. 6.1 6.1 7.1 8.2
l 23 23 27 31
Dry weight
lbs 487 487 562 684
kg 221 221 255 310
Table 3 Dimensions
