Moving the boiler
Logano G234X – 6 720 804 886 (2012/08)8
3 Moving the boiler
This section details how to move the boiler safely.
Moving the boiler with hand truck
▶ Position transport equipment (e.g. trolley) at the back of the boiler.
▶ Secure packaged boiler to the hand truck.
▶ Move the packaged boiler to the installation location.

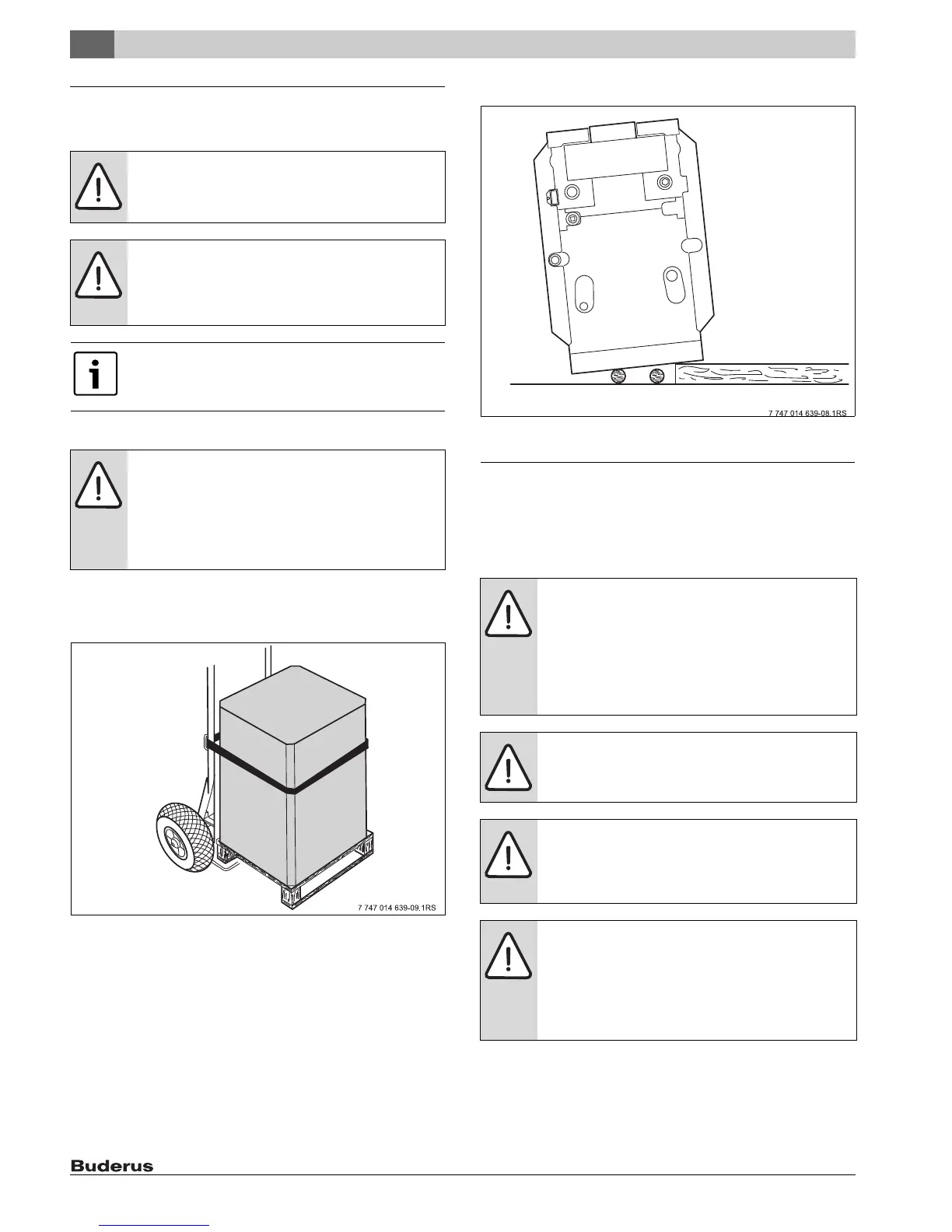

Fig. 4 Moving boiler with trolley
▶ Remove the straps and the cardboard packaging.
▶ Loosen the retaining screws.
▶ Lift the boiler at the sides and slide to the edge of the pallet.
▶ Place a pipe under the boiler and roll it on additional pipes to the
installation location.
▶ Place the boiler in its final position.
Fig. 5 Moving the boiler
4 Placing the boiler
This section explains how to erect and position the boiler correctly in the
boiler room.
4.1 Boiler room requirements
NOTICE: Risk of system damage from impact shocks!
Fragile components could be damaged.
▶ Observe the transport instructions on the packaging.
NOTICE: System damage due to improper transport!
▶ Protect sheet metal parts, flue gas pipe, burner, and
control unit during transport.
▶ Do not lift the boiler using these components.
Dispose of packaging in an environmentally responsible
manner.
WARNING: Risk of injury if load is inadequately secured
during transportation.
▶ Use suitable means of transportation, e.g. a trolley
with strap.
▶ When transporting, secure the boiler to prevent it
from falling.
DANGER: Dangers posed by explosive and combustible
materials!
▶ Do not use or store combustible materials (paper, lace
curtains, clothing, thinners, paints, etc.) near the
boiler.
▶ Maintain a clearance of 16 inches (415 mm) from the
boiler.
NOTICE: Risk of system damage due to freezing!
▶ Install the heating system in a frost-free room.
NOTICE: Damage to the building due to insufficient load
capacity of the floor!
▶ Before setting the boiler up, check the load capacity of
the floor.
NOTICE: Risk of boiler damage from contaminated
combustion air!
▶ Do not use cleaning agents that contain chlorine or
halogenated hydrocarbons (e.g. in spray cans,
solvents and cleaning agents, paints, glues).
▶ Avoid excessive dust accumulation (building dust).
