25
HD-WLU3

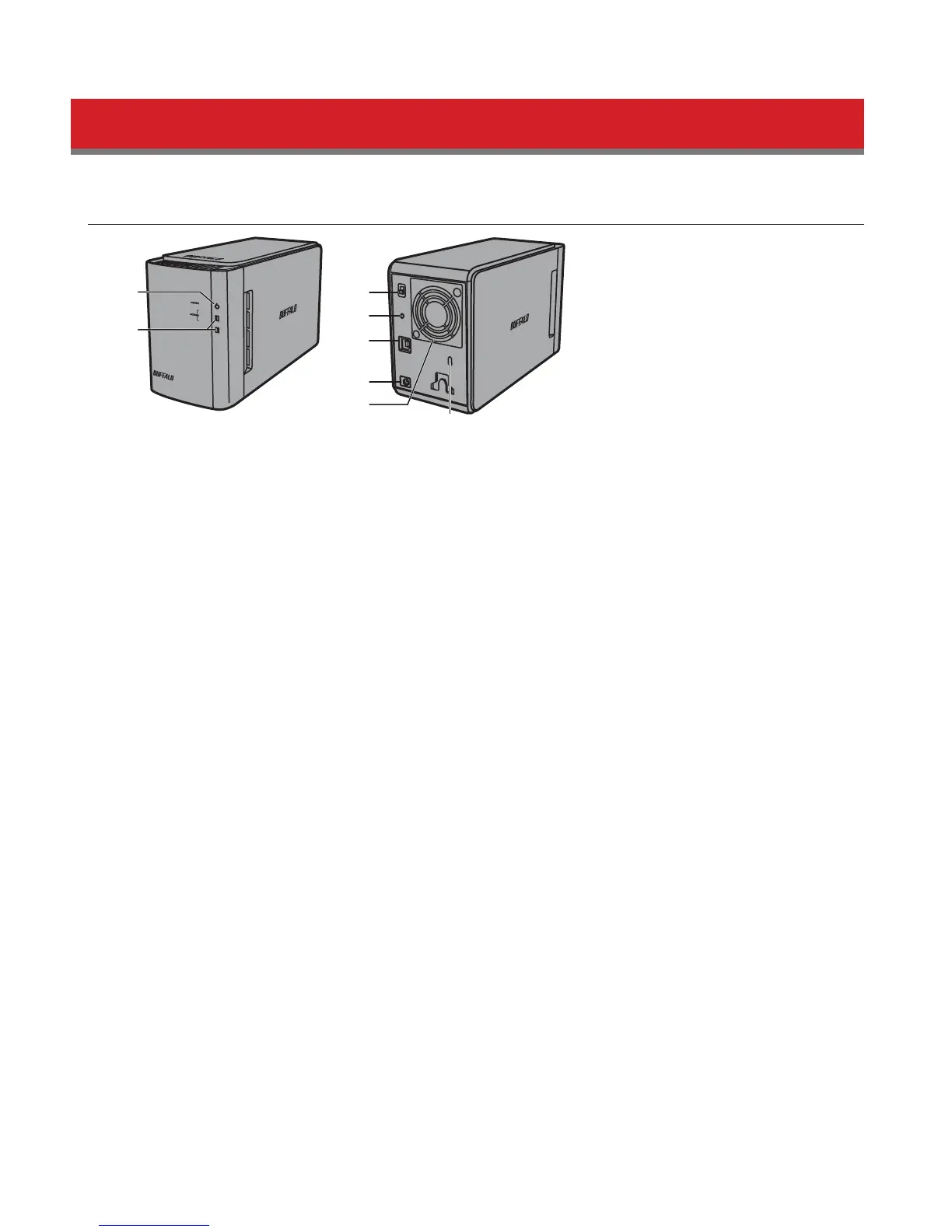

Diagrams
1
2
3
4
5
6
7
8
1
Power LED
Idle: Blue
RAID Maintenance: Purple
2
Access LEDs
These indicate the status of the built-in hard drives. The top LED indicates the status for Disk 1 and the bottom LED
indicates the status for Disk 2.
Active: Blinking green
Rebuilding: Blinking red
Error: Red
3
Power Mode
See "Power On/O".
4
RAID Mode Button
Use this button to change RAID modes. A connected computer is not required.
Default: RAID 1
5
USB Connector
Connect to your computer with the included USB cable.
6
DC in
Connect the AC adapter here.
7
Fan
Don't block airow from the fan.
8
Anti-Theft Security Slot
