INSTALLATION
11
SECTION 2: Parts Description
This section describes each of the parts in the Parts List, each description provides a physical
set of attributes and a purpose for each part. The parts descriptions also list everything that is
included in each assembly.
THE GAUGE TUNER:
The main component is the GT Head Unit. The Head Unit is the interface through which all oper-
ating functions take place including: Downloading, Monitoring, and the Driving Coach feature.

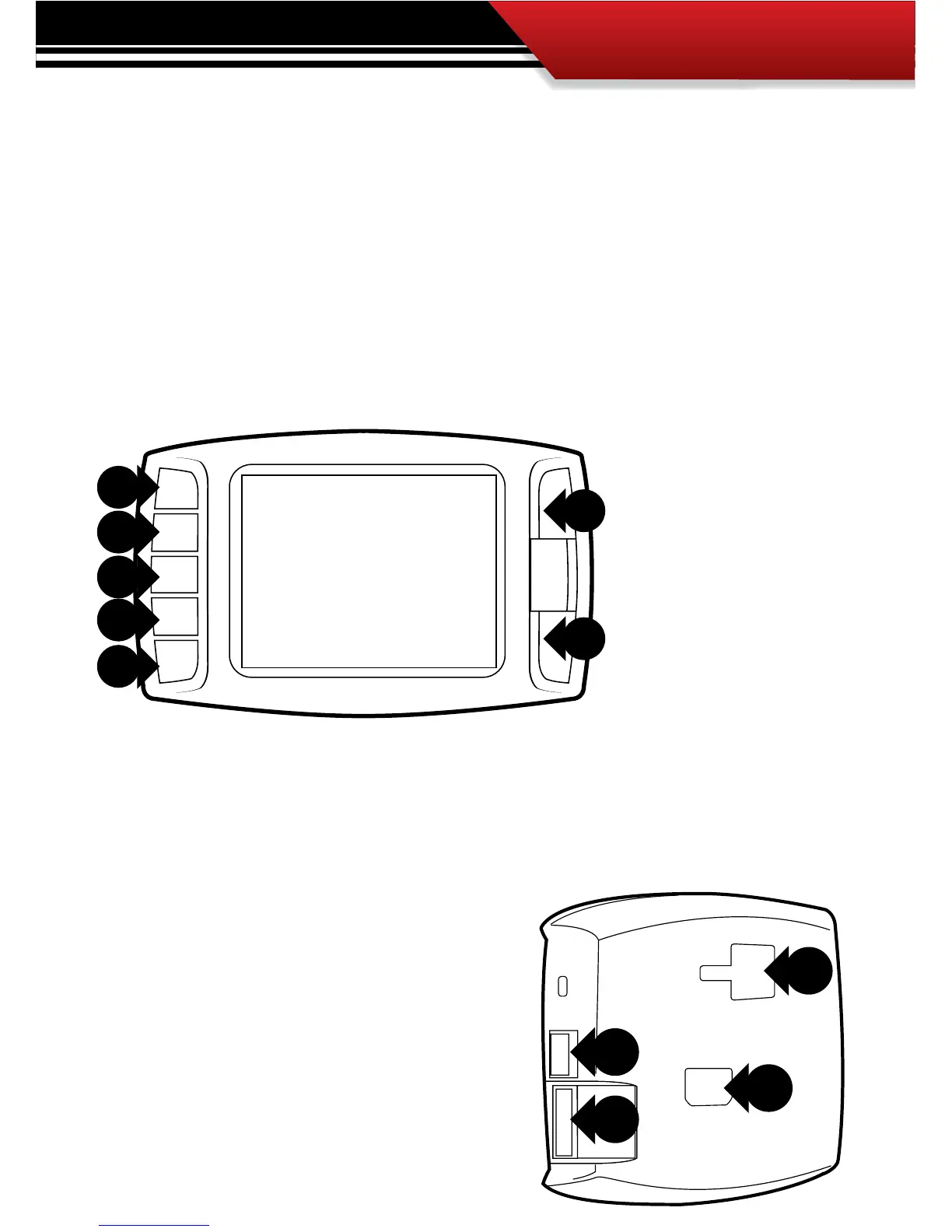

GT Front Side:
The GT has seven capacitive
touch buttons. Capacitive
touch buttons are a button
style that is sensitive to the
presence of your nger. Ca-
pacitive buttons do not need
to be pushed, only touched to
activate. The GT interface fea-
tures a 2.4” LCD screen.
1
2
4
3
GT Parts Back side:
1. T-slot Mount Socket, this will work with a large
range of o the shelve mounting options.
2. Main harness port, electronic port for the main
harness.
3. Micro SD Card Slot
4. Mini USB port
