INSTALLATION
16
SECTION 4: Installation
These installation instructions are split into ve Easy Steps. Follow the steps for the easi-
est installation of this product.
STEP 1: CONNECT THE OBD ll ADAPTER TO THE VEHICLE OBD ll PORT
This step involves locating the vehicle’s OBD ll port and then simply plugging the OBD ll Adapter
Plug into the OBD ll port.

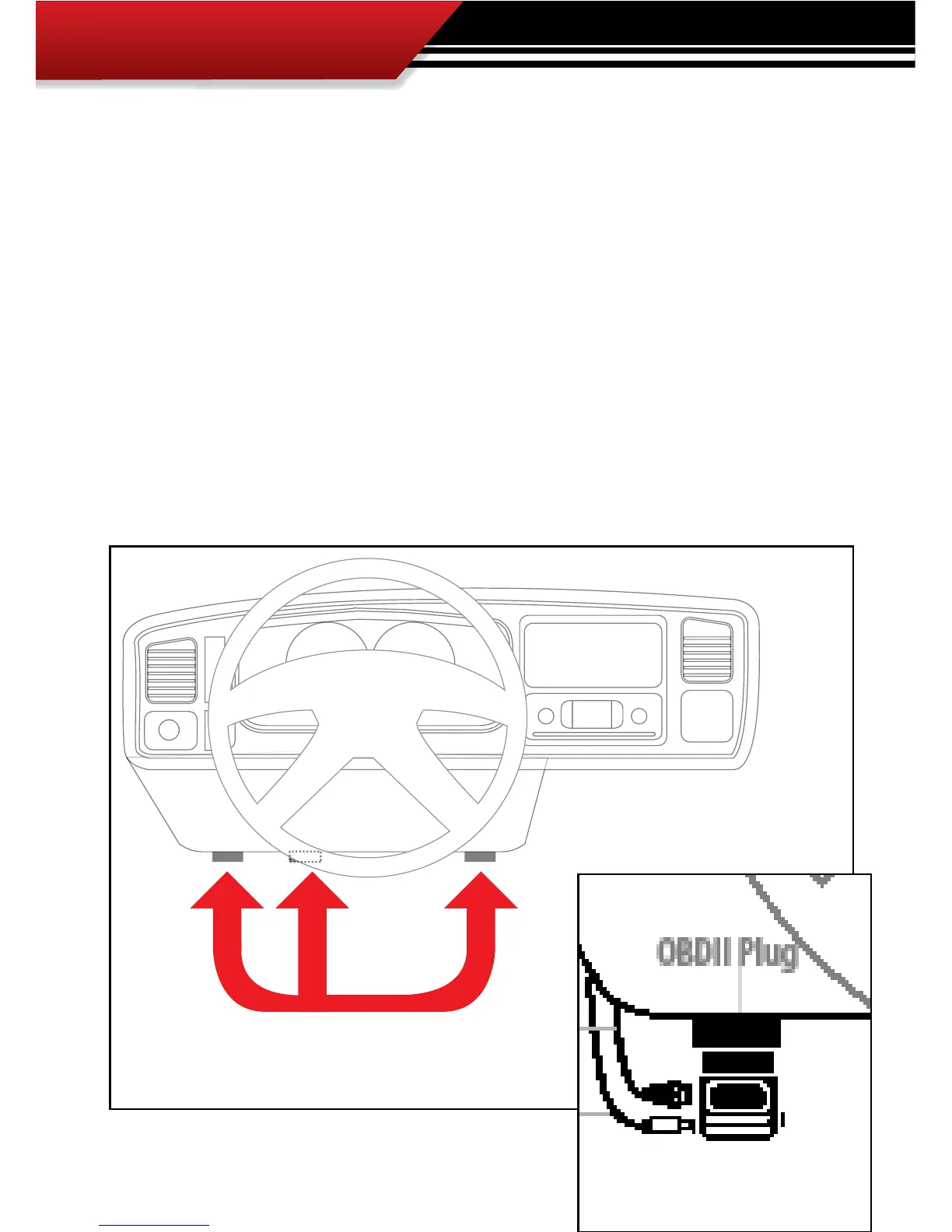

1. As the illustration below shows, OBD ll ports are always located somewhere under the drivers
side dash. The OBD ll port is a male receiver that will have the same shape as the end of the
OBD ll Adaptor plug.
2. Once the OBD ll port is located, then simply plug the OBD ll Adaptor plug into the OBD ll port.
