INSTALLATION
12
OBDII ADAPTER PLUG
The OBDII Adapter is a communication hub for the GT. The OBD
ll Adaptor plugs directly into the vehicle OBD ll port. Notice the
OBD ll Adaptor has many ports to support various other func-

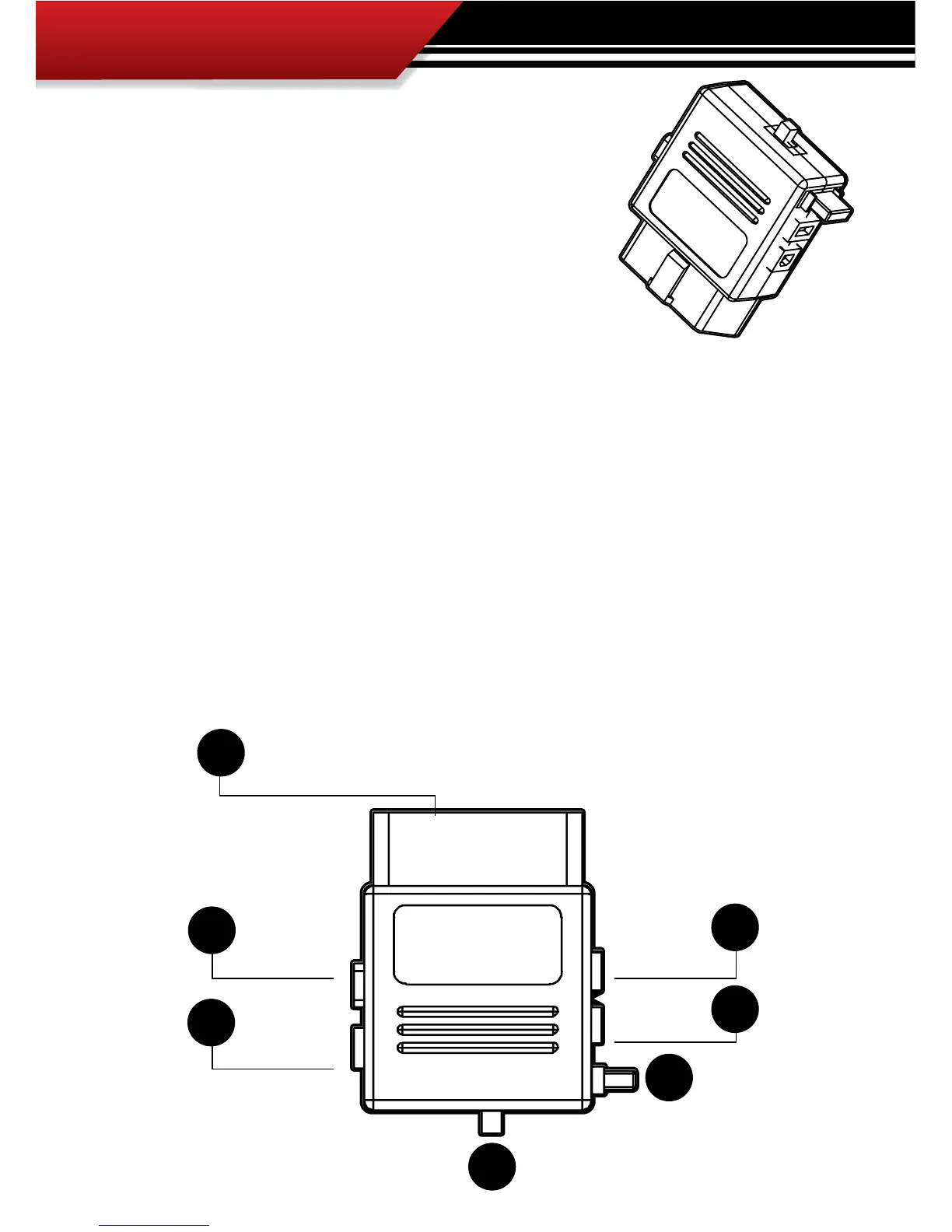

tions of the GT. The diagram below illustrates all of the OBDII
parts and ports.
1
5
6
7
2
3
4
1. OBD ll Male End: this is the part of the adapter plug that plugs into the vehicle OBDll port.
2. Main Harness port: the main harness will plug into the GT and into this port during installation.
3. Power wire port: the power wire will run from this port to the vehicle fuse pox during instal-
lation. Plug into the GT and into this port during installation.
4. Power Supply Switch: use this switch to change power from running o of the Power Wire
to OBD ll power as a power supply for the GT.
5. Four Pin USB: This port is used if a Bully Dog pyrometer kit is purchased for the GT.
6. Five Pin USB
7. Adapter Plug Fuse
