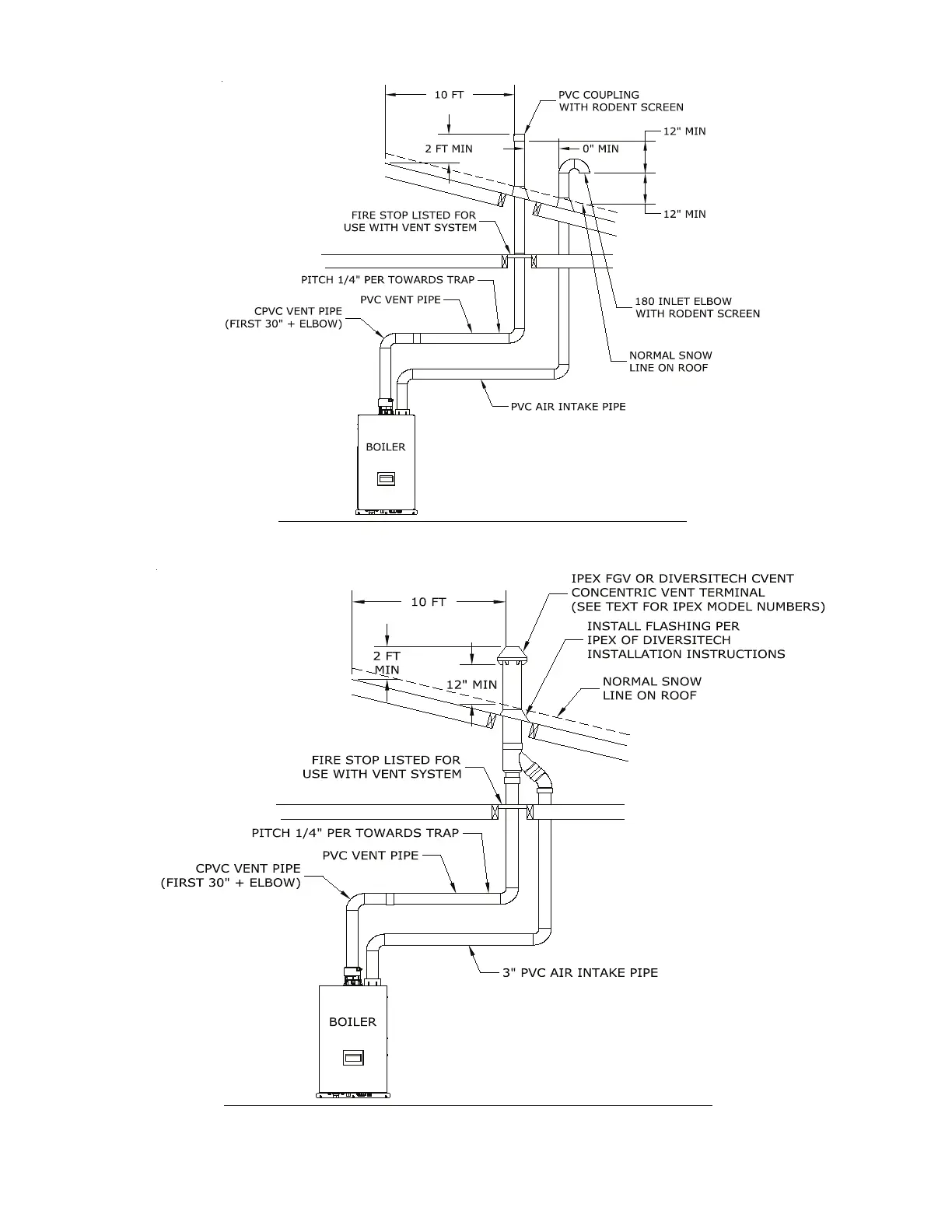

Figure 7.15: Vertical CPVC/PVC Venting (Vent Option 5, Terminal Option H)
Figure 7.16: Vertical CPVC/PVC Venting with IPEX Concentric Vent Terminal
(Vent Option 5, Terminal Option I, J)
VII. Venting C. Design Requirements Unique to Vertical Venting Systems (continued)
