Burnham K2WTC - Page 34

34
107774-01 - 9/17

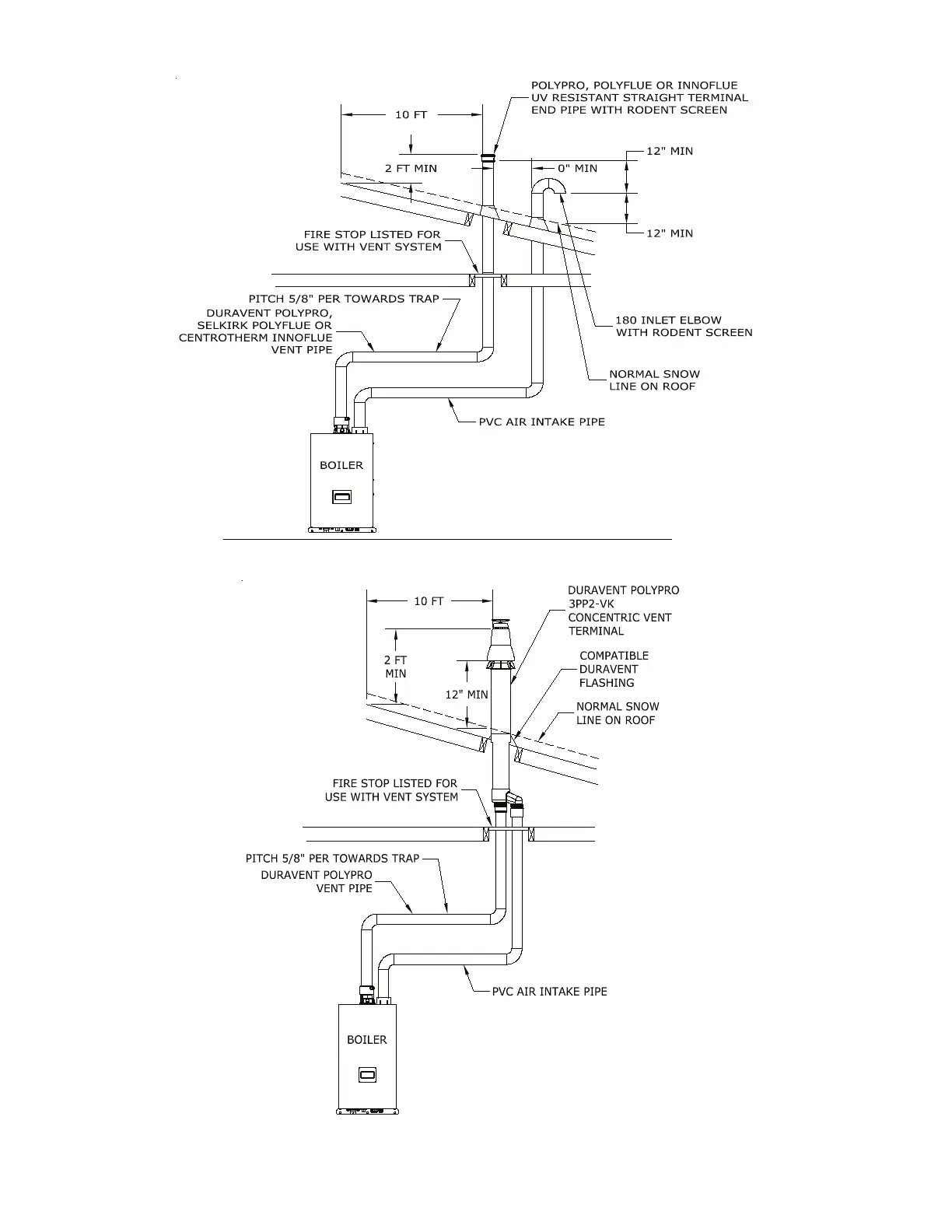

Figure 7.17: Duravent PolyPro, Selkirk Polyue or Centrotherm InnoFlue Vertical Single Wall PP Venting
(Vent Options #6-8, Terminal Option H)
Figure 7.18: Duravent PolyPro Vertical Venting with Concentric Terminal
(Vent Option #6, Terminal Option K)
VII. Venting C. Design Requirements Unique to Vertical Venting Systems (continued)
