86
107774-01 - 9/17

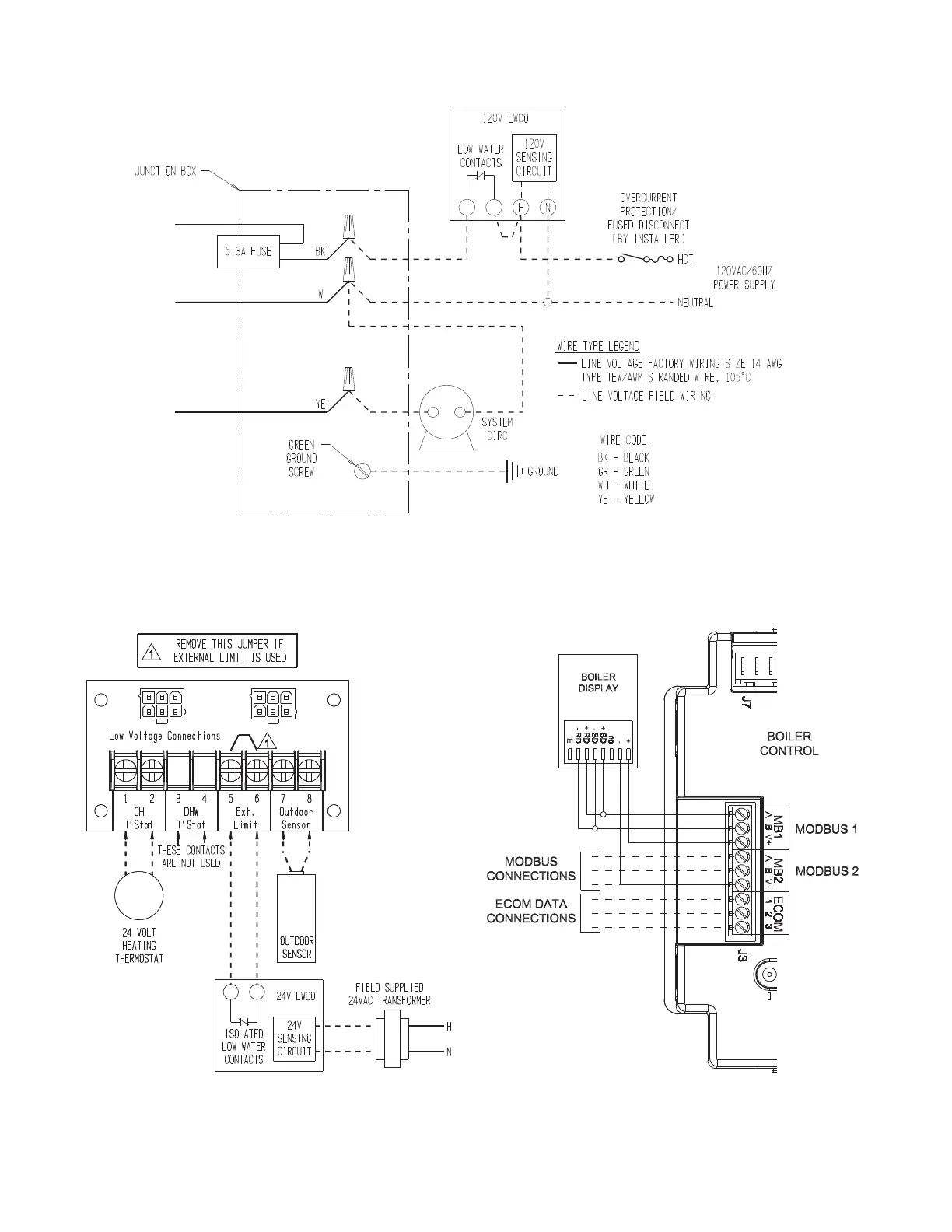

Figure 11.4b: 24 Volt LWCO Field Wiring
XI. Wiring (continued)
Figure 11.4a: 120 Volt LWCO Field Wiring
Figure 11.5: J3 Field Wiring
