91
107774-01- 9/17

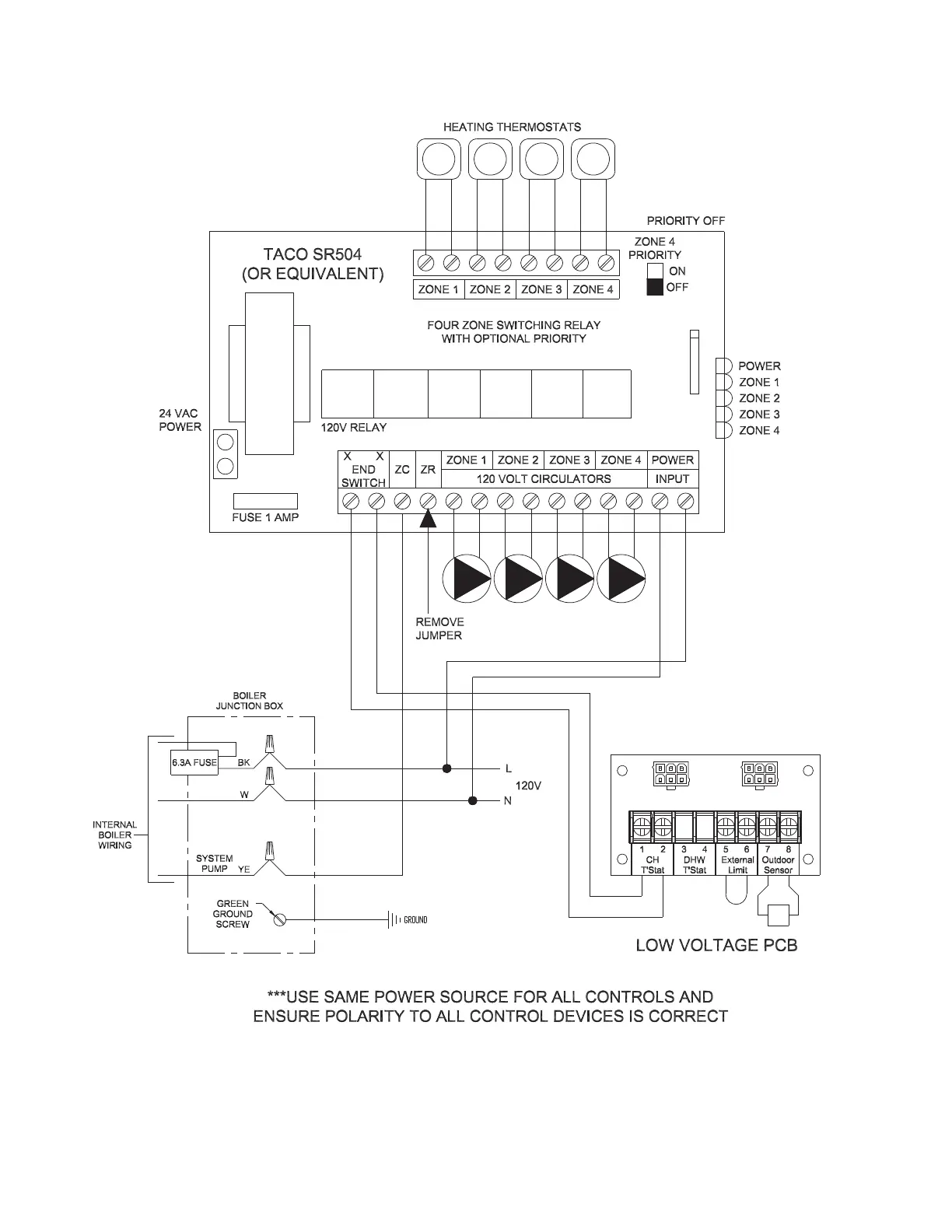

Figure 11.9: TACO SR504 or Equivalent Zone Panel Wiring Connection Diagram
XI. Wiring (continued)
