Please note, the following operation would
benefit from the assistance of a second
person holding the handlebars.

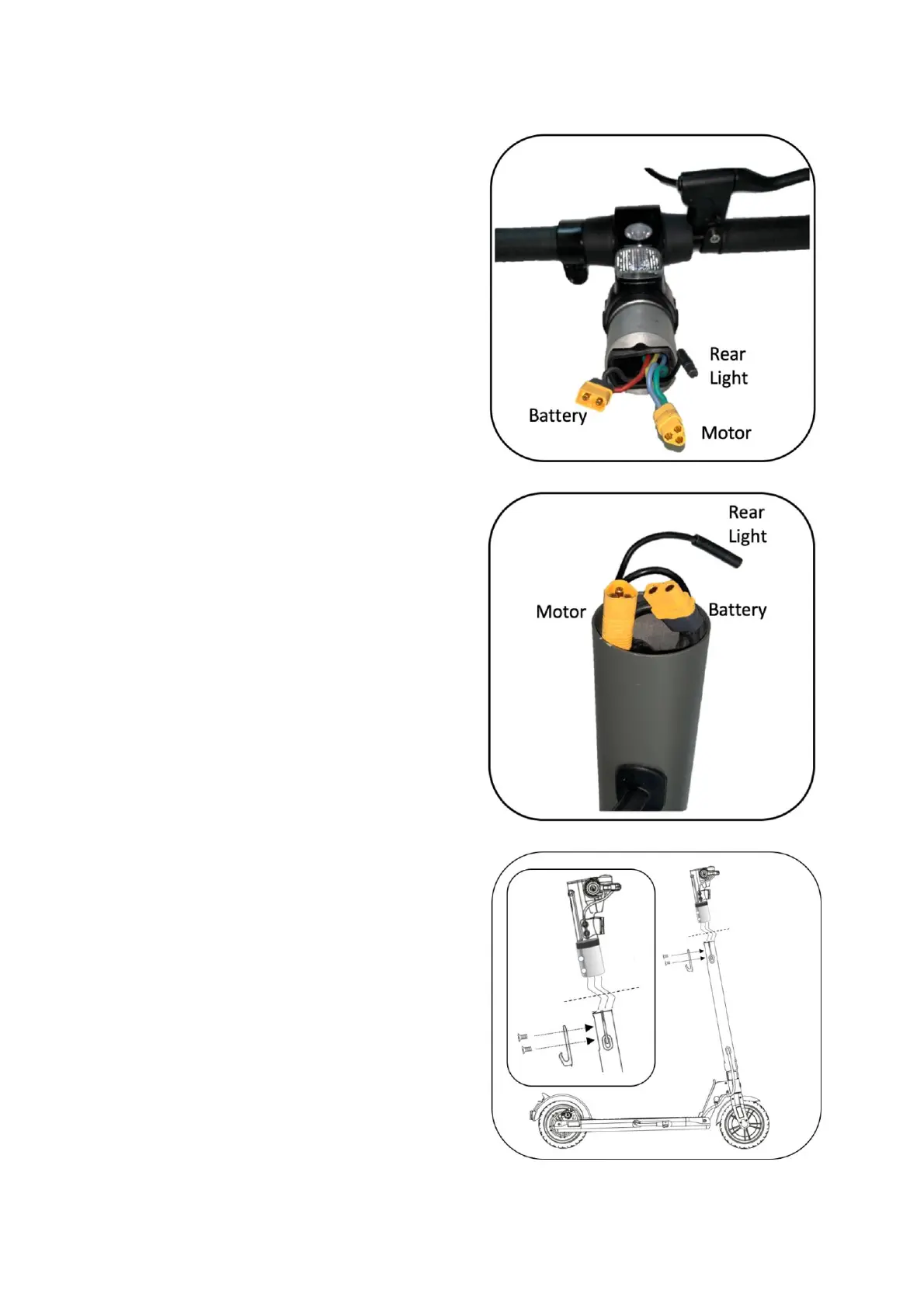

Identify the three cable connectors attached
to the handlebar assembly, and the
corresponding connectors in the handlebar
stem.
•
Battery
•
Rear Light
•
Motor
Whilst supporting the handlebar assembly,
identify the correct orientation of each
matching connector pair.
Connect the three pairs of connectors,
ensuring each is fully pressed home.
Now gently introduce the handlebar
assembly into the stem tube whilst gently
pushing the cables and connectors inside
the handlebar stem.
Be careful not trap, pinch or damage the
electrical cables. If too much resistance is
felt, remove the handlebar assembly and
reposition the cables and connectors inside
the stem tube and repeat the above.
Align the two bolt holes of the handlebar
assembly neck with the holes in the stem.
Re-position the Locking Hook and secure
the two bolts through the three parts using
the Allen key provided.
Attention: Take care not to cross thread
the screws.
