5.2.1 Possible fixing
WARNING
After being set in its position, the machine must be anchored to the floor.
Otherwise, it could move spontaneously and thus be damaged.

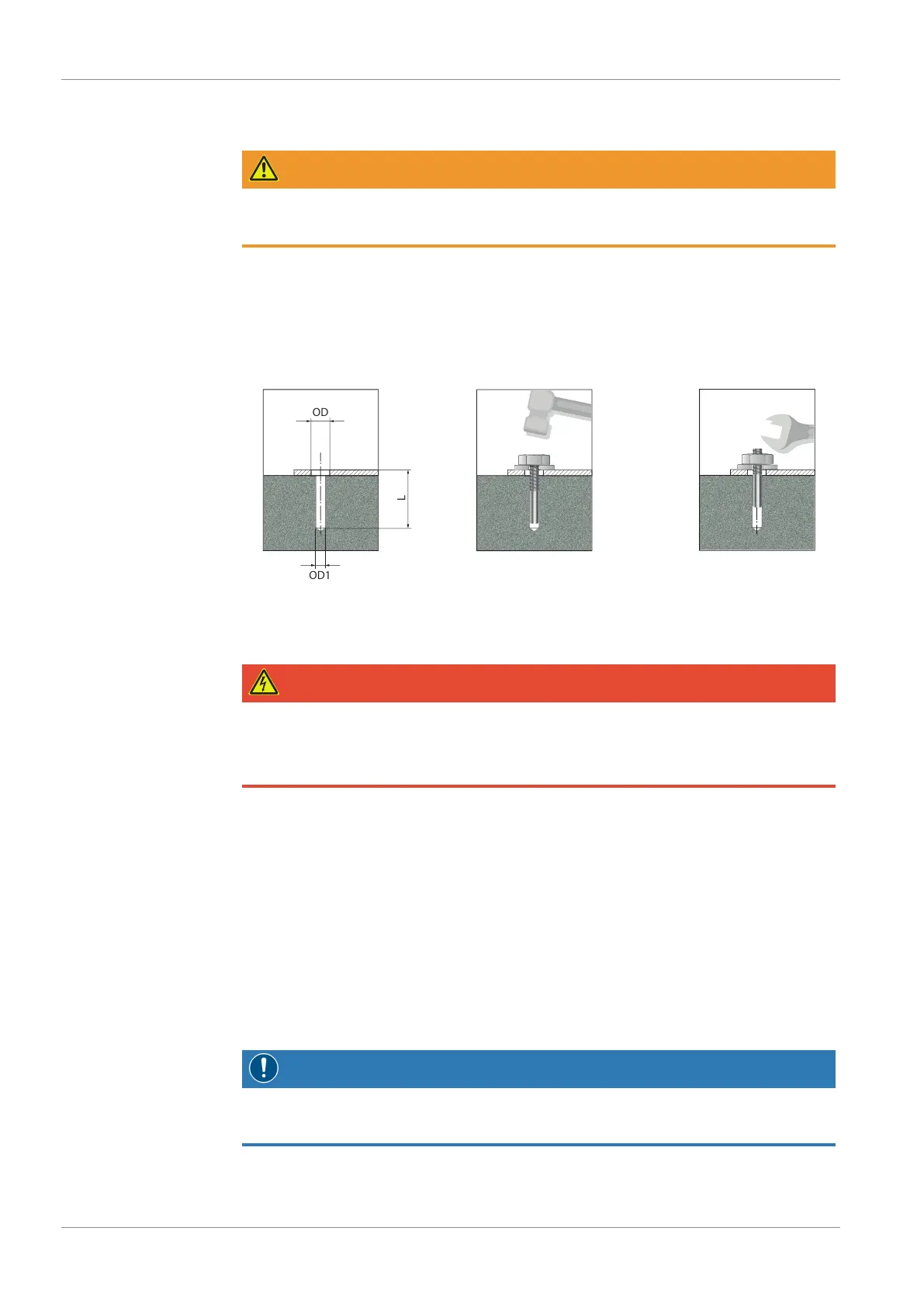

Working procedure for anchoring machine and noise-damping hoods.
• Drill a hole and clean it (A)
• Stick the anchor into the hole (B); and
• Tighten the nut (C)
OD
OD1
L
A)
B)
C)
5.3 Electrical Connection
DANGER
Live wires.
Risk of electrical shock.
• Electrical installation work must only be executed by qualified personnel.
• Make sure that the power supply for the motor is compatible with the data on the
nameplate of the motor.
• The electrical installation must comply with applicable national and international
standards.
• Provide a lockable disconnect switch on the power line so that the machine is com-
pletely secured during maintenance tasks.
• Provide an overload protection according to EN 60204-1 for the motor.
• Make sure that the motor of the machine will not be affected by electric or electro-
magnetic disturbance from the mains; if necessary seek advice from Busch.
• Connect the protective earth conductor.
• Electrically connect the motor.
NOTICE
The motor frequency is below 20 Hz.
Risk of damage to the machine!
