5 Installation
5.1 Installation Conditions
NOTICE
Use of the machine outside of the permitted installation conditions.
Risk of premature failure!
Loss of efficiency!
• Take care that the installation conditions are fully complied with.
• Make sure that the environment of the machine is not potentially explosive.
• Make sure that the ambient conditions comply with the Technical Data [►31].
• Make sure that the environmental conditions comply with the protection class of the
motor and the electrical instruments.
• Make sure that the installation space or location is vented such that sufficient cooling
of the machine is provided.
• Make sure that cooling air inlets and outlets are not covered or obstructed and that
the cooling air flow is not affected adversely in any other way.
• Check the oil level, see Oil Level Inspection [►20].
• Make sure that all provided covers, guards, hoods, etc. are mounted.
Make sure that the machine is fixed to the concrete base with anchors, see Possible Fix-
ing below.
• Make sure that the machine is secured against movement.

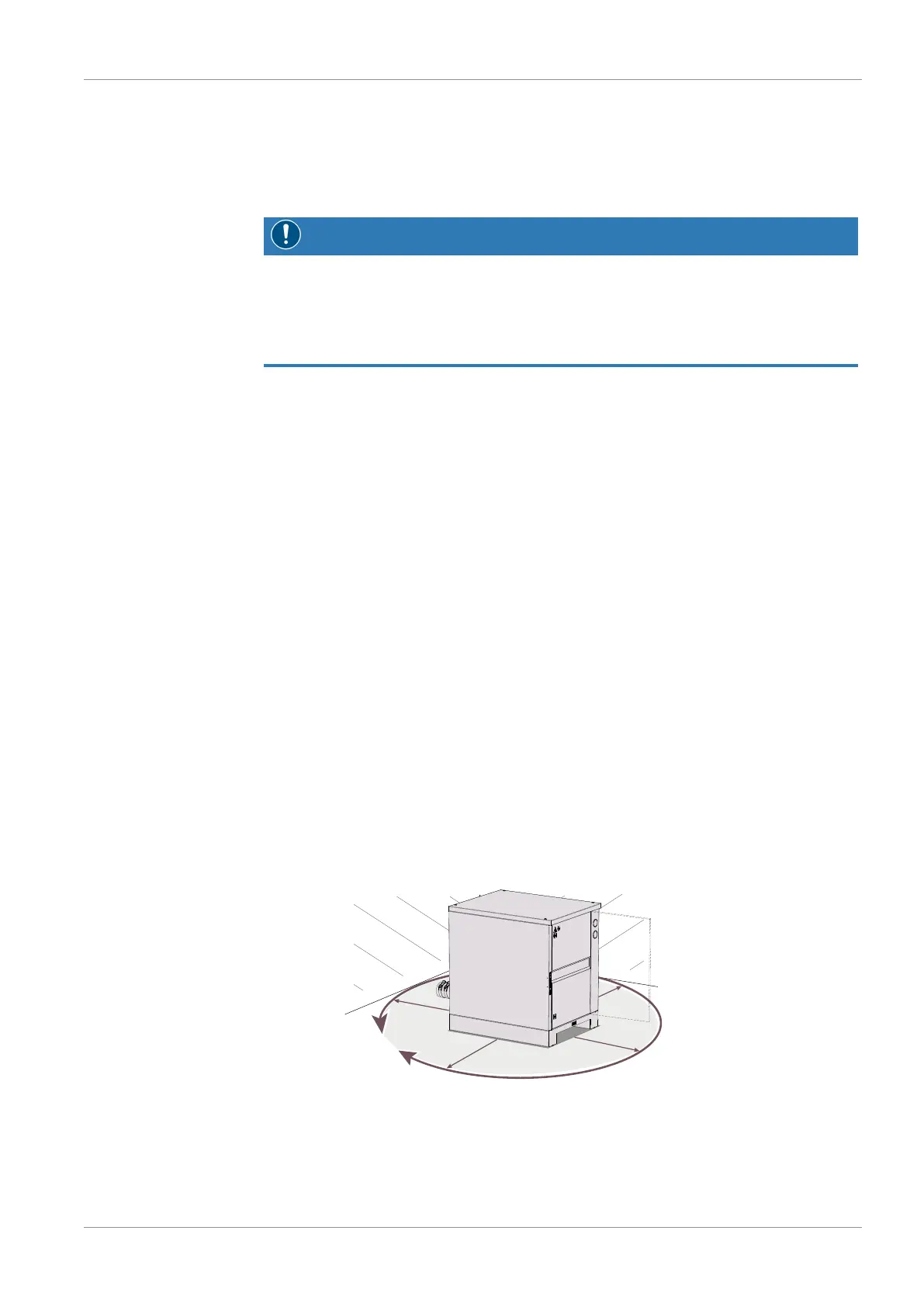

5.2 Blower Unit Installation
The machine must be set up horizontally on a flat surface.
Maximum permissible unevenness of the base / inclination of the machine can be ex-
pressed as follows:
• View from left to right and the front to back : max. 0.5°
We recommend to keep 1 meter space around the machine for the maintenance work.
Make sure that the machine is fixed to the concrete base with anchors, see Possible Fix-
ing below.
