Connections
Bringing it all together
Connections18
If you require any technical guidance or find that your TV is not operating as intended, a simple solution can often be found in the Troubleshooting section of these instructions,

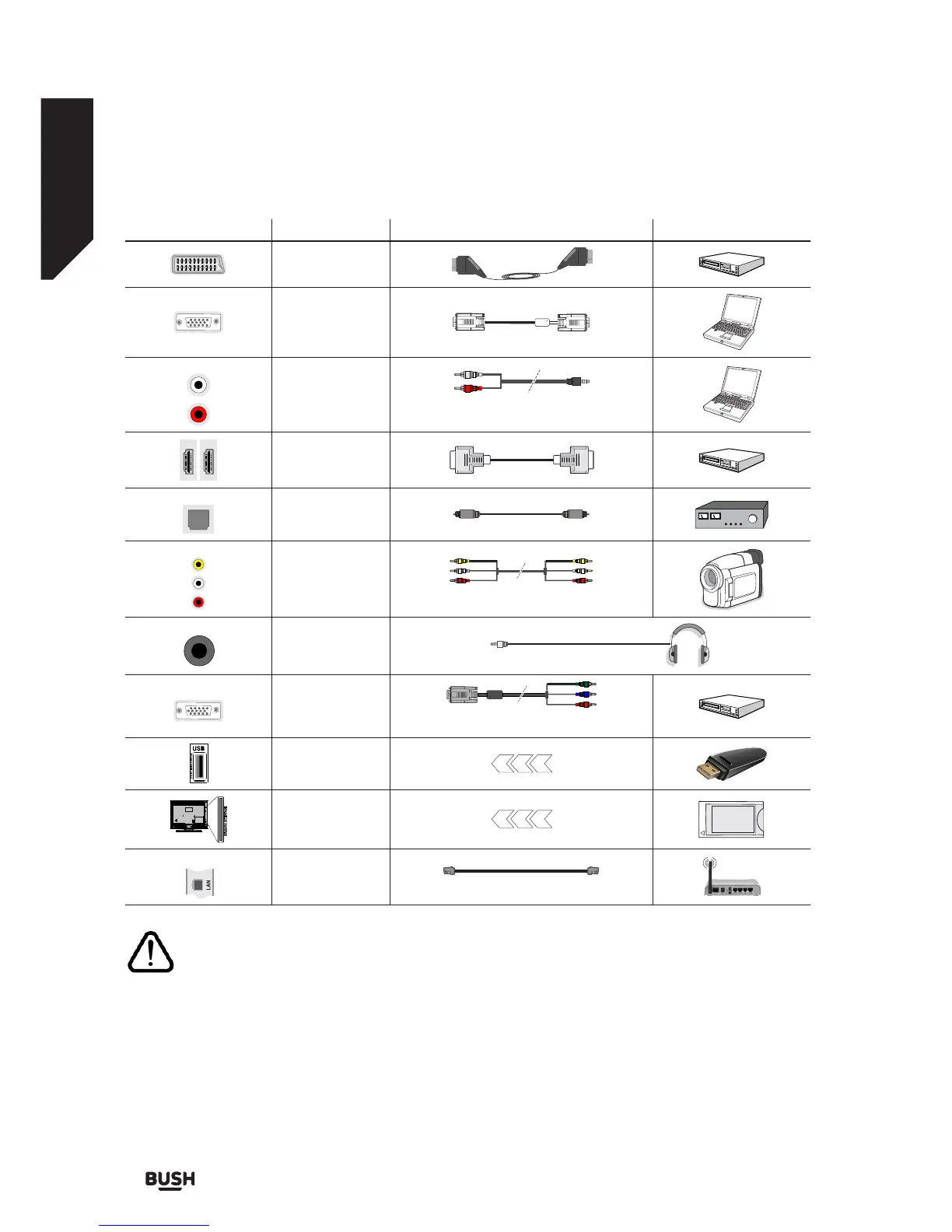

Connector Type Cables Device
Scart Connection
(back)
VGA Connection
(back)
SIDE AV
PC/YPbPr Audio
Connection (side)
YPbPr/PC Audio Cable (not
supplied)
HDMI Connection
(back)
SPDIF
SPDIF (Optical
Out) Connection
(back)
SIDE AV
Side AV
(Audio/Video)
Connection (side)
AV Cable (not supplied)
HEADPHONE
Headphone
Connection (side)
YPBPR
YPbPr Video
Connection
(back)
PC to YPbPr Connection Cable
(not supplied)
USB Connection
(side)
CI Connection
(side)
CAM
module
LAN
Ethernet
Connection
(back)
LAN / Ethernet Cable
• If you want to connect a device to the TV, make sure that both the TV and the device are turned off
before making any connection. After the connection is done, you can turn on the units and use them.
Notes:
• When connecting a device via the YPbPr or Side AV input, you must use the connection cables to enable
connection. See the illustrations on the left side.
• You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input.
• You cannot use VGA and YPbPr at the same time.
