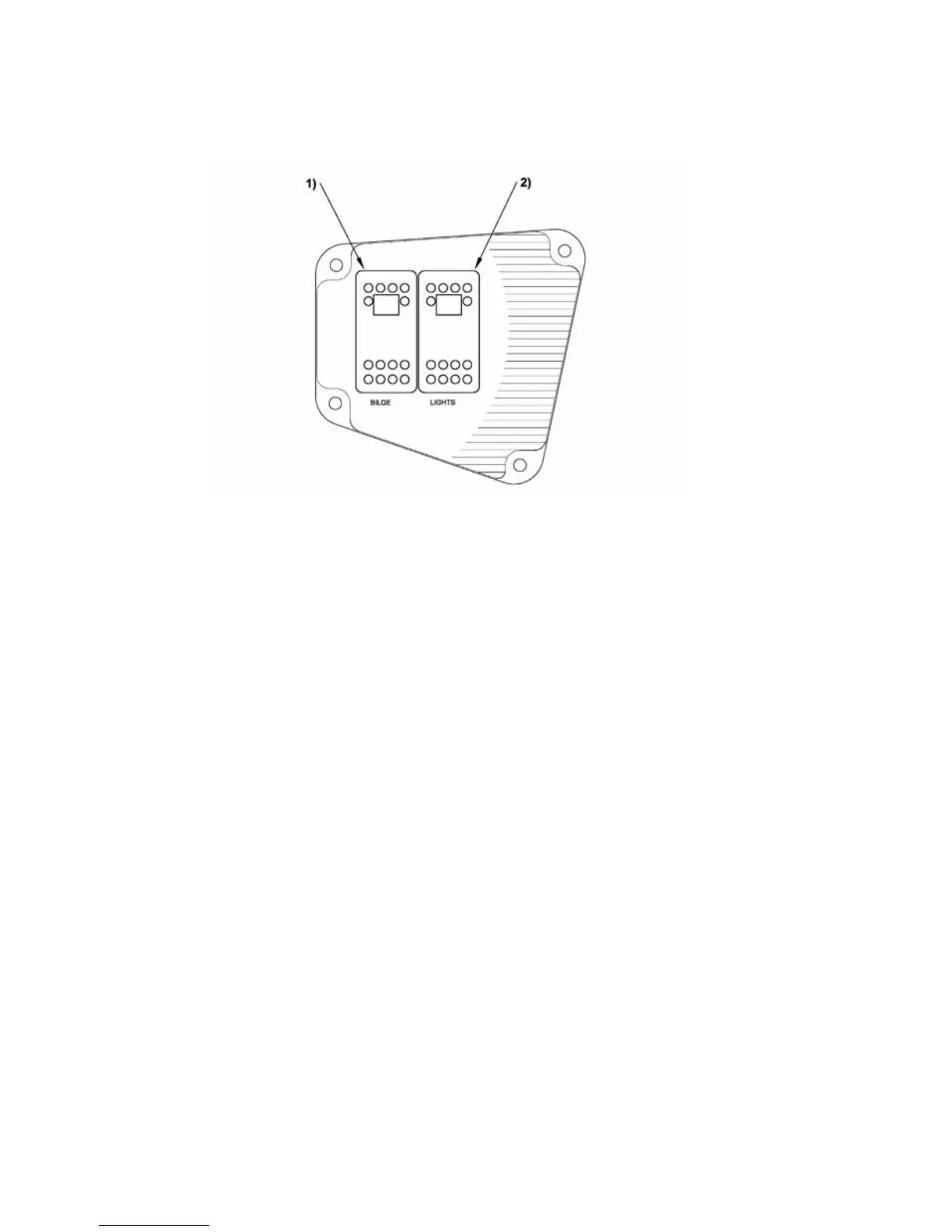

Diagram 5. Switch panel: 1. Navigation light switch and 2. Bilge pump switch.
Circuit fuses are located in a separate fuse box in the rear seat next to the main
switch on the left-hand side of the boat. The Buster Lx uses automatic fuses which
can be reconnected after overloading by pushing the tripped pin back down. In the
electrical system, there are two extra circuits equipped with fuses (Extra 1: 5A and
Extra 2: 10A). Accessories installed post-production can be connected to these. The
leads for these circuits are behind the switch panel on the steering pulpit. Do not
replace normal fuses with fuses that are intended for a higher current feed. Similarly,
do not install as a part of the electrical system components, which exceed the
nominal ampere value of the respective circuit.
