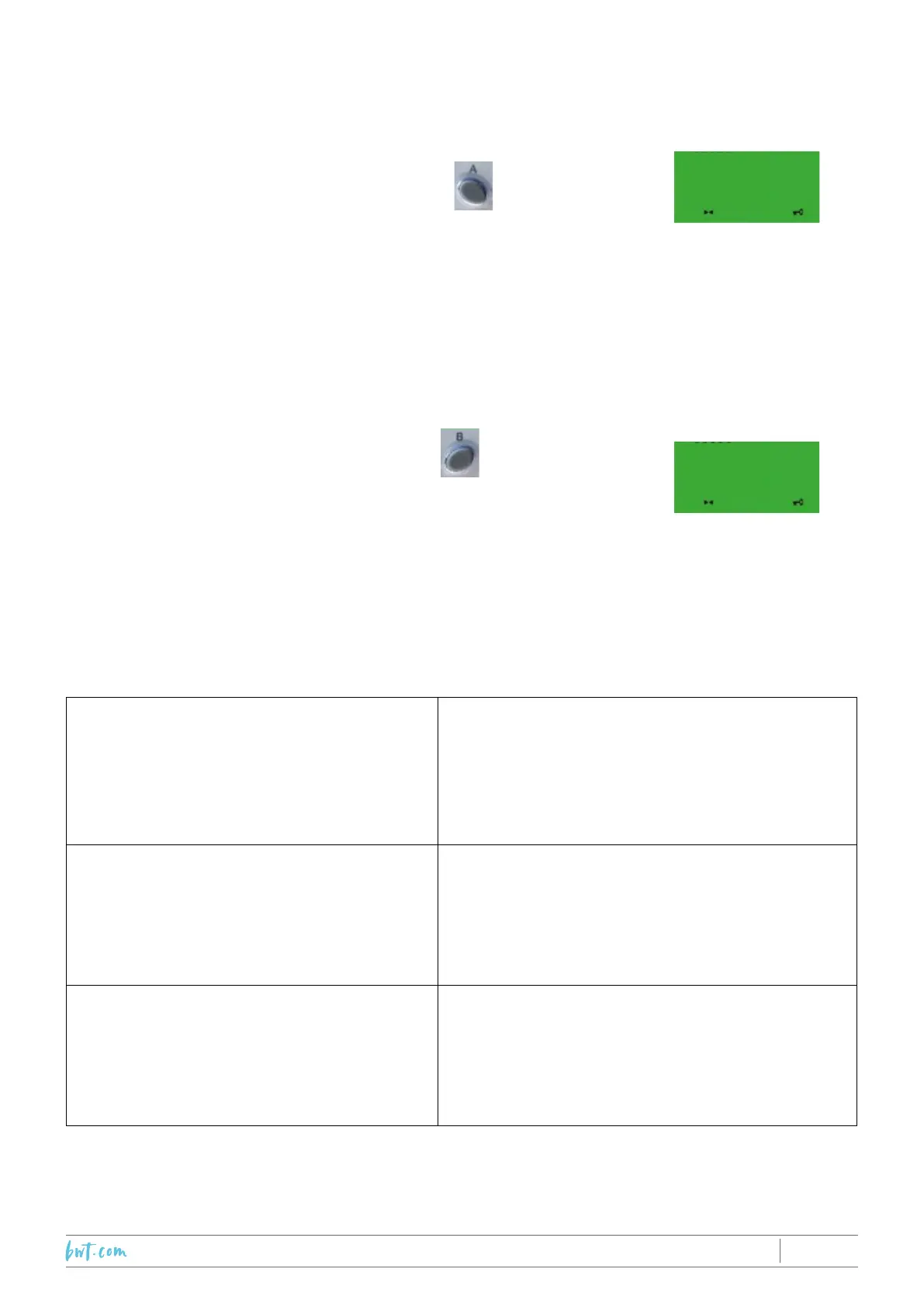

10.2.5 Step 5: Recording the pool closed position
Turn the key to “FER” (close) to close the cover (completely rolled out, the rst
slat touching the wall opposite the axle), and press . The letter “M” is
displayed beside INI-803 indicating that the position has been saved to
memory, and the counter is reset to zero.
10.2.6 Step 6: Recording the pool open position
Turn the key to “OUV” (open) to open the cover (completely rolled up, the rst
slat 10 cm beneath the water level) and press . The letter “M” is
displayed beside INI-804 indicating that the position has been saved to
memory.
Remember: While rolling up the counter gure should increase.
Trouble shooting during step 4 of the programming procedure
The motor does not work.
Check the quick t connection in the connecting
box.
Check the wire connections at the terminals
marked “+” and “-” in the control panel.
The motor runs and drives the axle, but the
counter gure is frozen.
Check the wire connections at the terminals
marked “A”, “T” and “C” in the control panel and
connecting box.
The motor is correctly connected to the
“+” and “-” terminals but cover direction is
inverted.
Ensure that step 3 (motor positioning) was
carried out. If this does not solve the problem,
switch off the PLC (ON/OFF), swap the wires at
the terminals marked “+” and “-” in the control
panel.
00000
A=INI-803M
B=INI-804
04340
A=INI-803M
B=INI-804M
B
B
