9.2.11 Settings
It is possible to change the various time settings for Start, Stop and Alarm, plus delayed start-up of pumps.

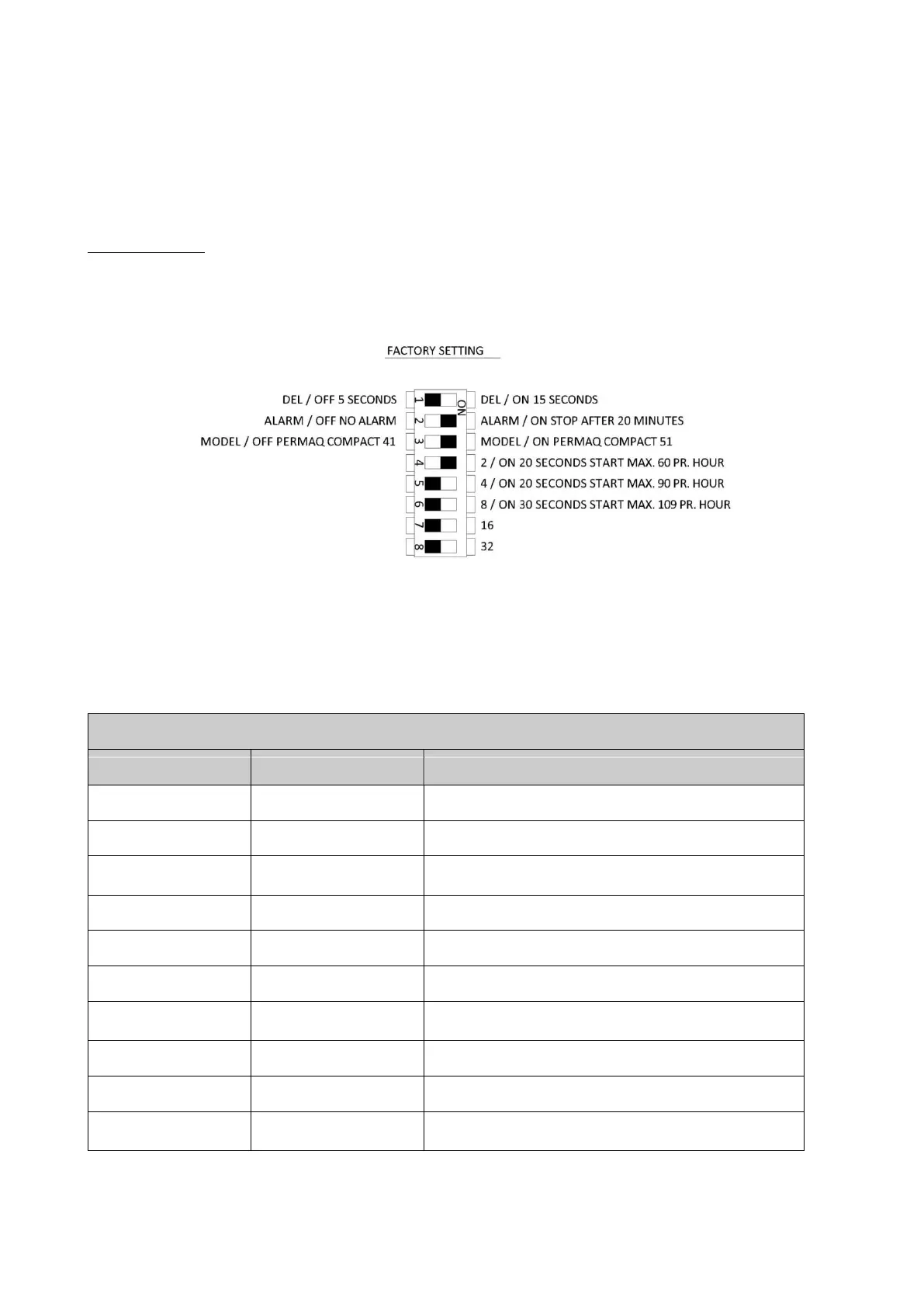

Use of DIP-switch:
No. 1 High-pressure pump
No. 2 Transport pump
No. 3 Selection of BWT PERMAQ
®
Compact 51 model
No. 4-6 Transport pump
10. TECHNICAL SPECIFICATION
10.1 Technical specifications
BWT PERMAQ
®
Compact 51
Tag number
Designation
Type/data
P1
High-pressure pump
14 bar, 1x230V, 0.64kW
P2
Transport pump
1x230V, 0.85 kW
FI 1
Flow meter
Ø20 PVC
PI 1
Manometer
0-40 bar, ¼”
V1
Needle valve
Brass
V2
Needle valve
Brass
Y1
Solenoid valve NC
POM
PS 1
Pressure switch NO
¼” 0.5 bar
PS 2
Pressure switch NC
¼” -0.2-8 bar
QIS 1(Option)
Conductivity meter
½” Connection for sensor
