17
P RA T EERHT
Notes
* Flow rates are from 10 and up to a peak of 50 litres / min. At flow rates under 10 litres /
min, the hardness may not be effectively removed from the water. If peak flow rates are
sustained for longer than 10 minutes, the softener capacity may be reduced resulting in
hard water breakthrough.
**The proportional brining control system calculates the exact amount of water and salt
required to regenerate the water softener. The amounts used will vary depending on water
usage patterns.

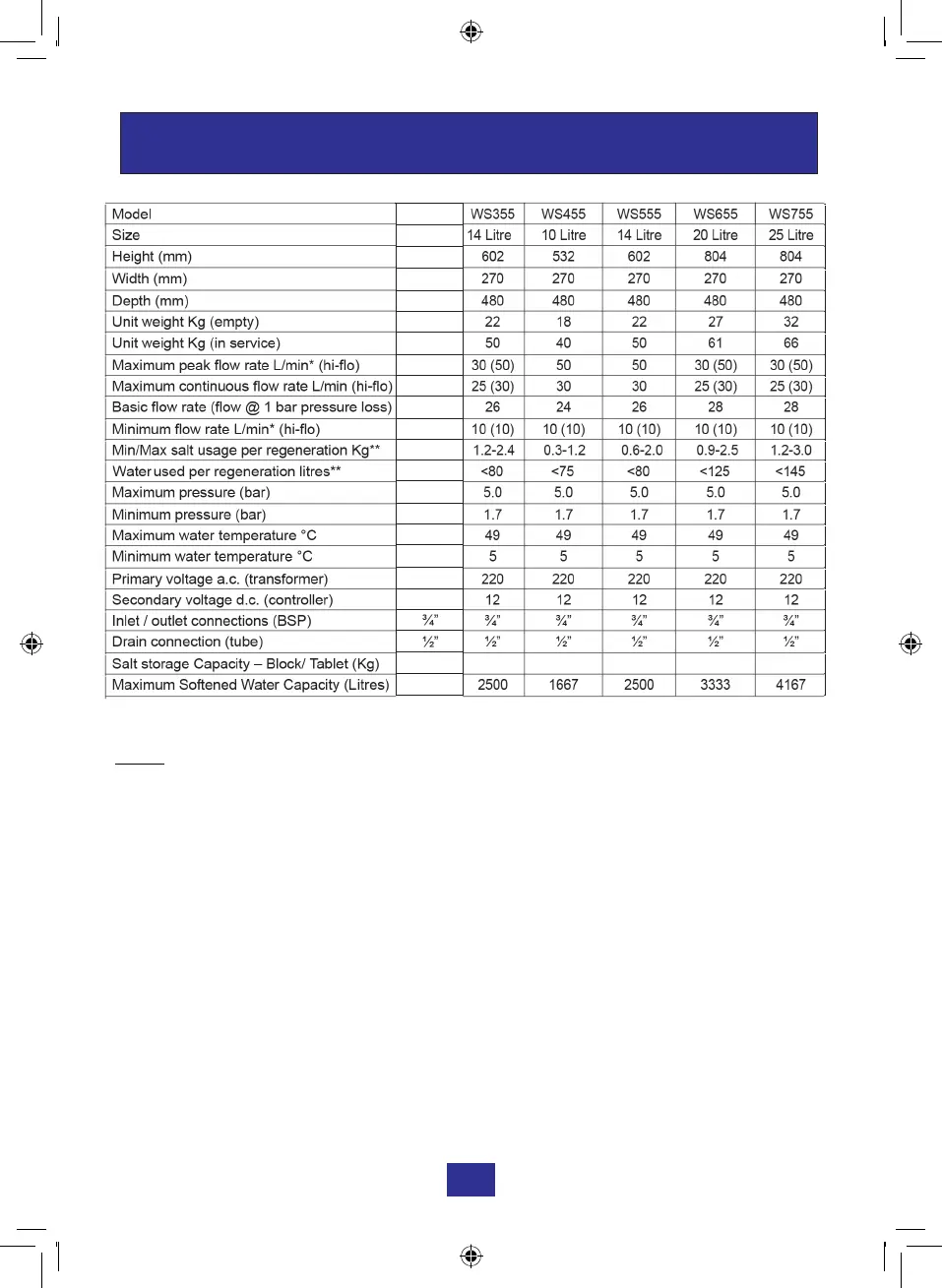

SPECIFICATION TABLE
Model WS355 WS455 WS555 WS655 WS755
Size 14 Litre 10 Litre 14 Litre 20 Litre 25 Litre
Height (mm) 602 532 602 804 804
Width (mm) 270 270 270 270 270
Depth (mm) 480 480 480 480 480
Unit weight Kg (empty) 22 18 22 27 32
Unit weight Kg (in service) 50 40 50 61 66
Maximum peak flow rate L/min* (hi-flo) 30 (50) 50 50 30 (50) 30 (50)
Maximum continuous flow rate L/min (hi-flo) 25 (30) 30 30 25 (30) 25 (30)
Basic flow rate (flow @ 1 bar pressure loss) 26 24 26 28 28
Minimum flow rate L/min* (hi-flo) 10 (10) 10 (10) 10 (10) 10 (10) 10 (10)
Min/Max salt usage per regeneration Kg** 1.2-2.4 0.3-1.2 0.6-2.0 0.9-2.5 1.2-3.0
Water used per regeneration litres** <80 <75 <80 <125 <145
Maximum pressure (bar) 5.0 5.0 5.0 5.0 5.0
Minimum pressure (bar) 1.7 1.7 1.7 1.7 1.7
Maximum water temperature °C 49 49 49 49 49
Minimum water temperature °C 5 5 5 5 5
Primary voltage a.c. (transformer) 220 220 220 220 220
Secondary voltage d.c. (controller) 12 12 12 12 12
Inlet / outlet connections (BSP) ¾” ¾” ¾” ¾” ¾”
Drain connection (tube) ½” ½” ½” ½” ½”
Salt storage Capacity – Block/ Tablet (Kg) n/a /20 n/a /24 n/a /248 /15 8 / 19
Maximum Softened Water Capacity (Litres) 2500 1667 2500 3333 4167
WS255
10 Litre
532
270
480
18
40
30 (50)
25 (30)
24
10 (10)
1.2-2.0
<75
5.0
1.7
49
5
220
12
N/A/12 N/A/16 N/A/24 N/A/248/12 8/16
1667
