CHASSIS SYSTEM MAINTENANCE

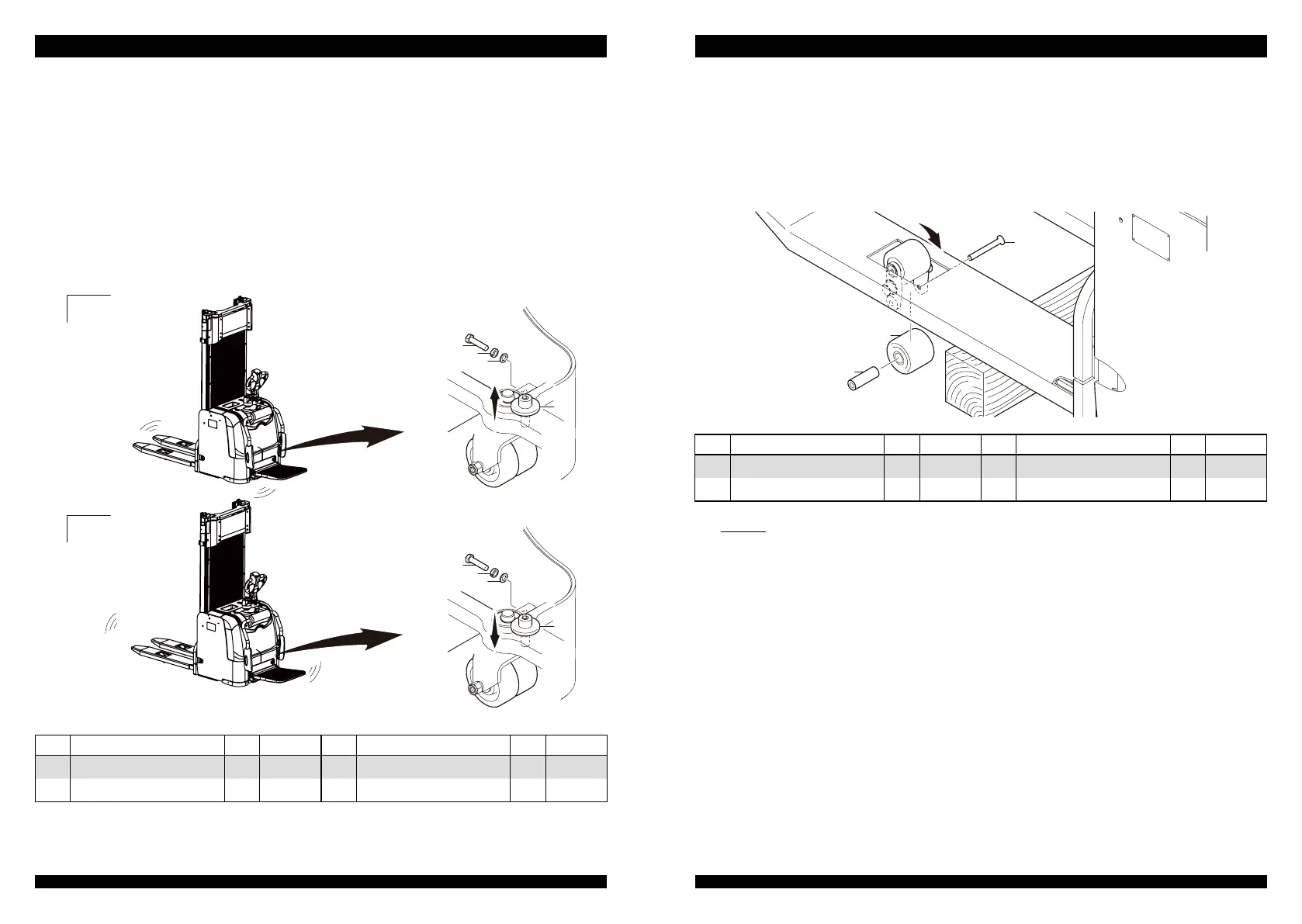

Balance Inspection and Adjustment
If the abnormal shaking occurs, the vehicle balance is needed to adjusted. Remove the back
cover, and then use the retainer to adjust the balance. Before adjustment, place the vehicle on the
sturdy and level ground, and then loosen the mounting bolt of the castor wheel assembly.
(1) When the front right side or the rear
left side of the vehicle shakes, turn the retainer
upward.
(2) When the front left side or the rear right side of the vehicle shakes, turn the retainer
downward.
< 1 >
< 2 >
19
22
21
11
19
22
21
11
CODE PART NAME QTY CODE PART NAME QTY
11
RETAINER
1 21
BOLT M12×45
1
19
WASHER M12
1 22
SPRING WASHER
1
Load Wheel Replacement
(1) Use the hoist equipment to raise the forks until the fork load wheel assembly can be
rotated by 90 degrees, and then place the hardwood block under the forks.
(2) Loosen the screw to replace one wheel, and then rotate the fork load wheel assembly by
180 degrees to replace the other wheel.
(3) Use the same method to replace wheels on the other side.
12
13
81
CODE PART NAME QTY CODE PART NAME QTY
12
LOAD WHEEL
4 81
SCREW
4 90 N-m
13
BUSHING
4
Caution
(1) All fork load wheels should be replaced as a set.
(2) After replacement, the truck balance should be adjusted.
