BYD EPS14P - Mast Chains Lubrication; Mast Cleaning; Mast Clearance Adjustment

MAINTENANCE
OPERATOR MANUAL
50
EPS14P
51
OM-EPS14P2019001-EN

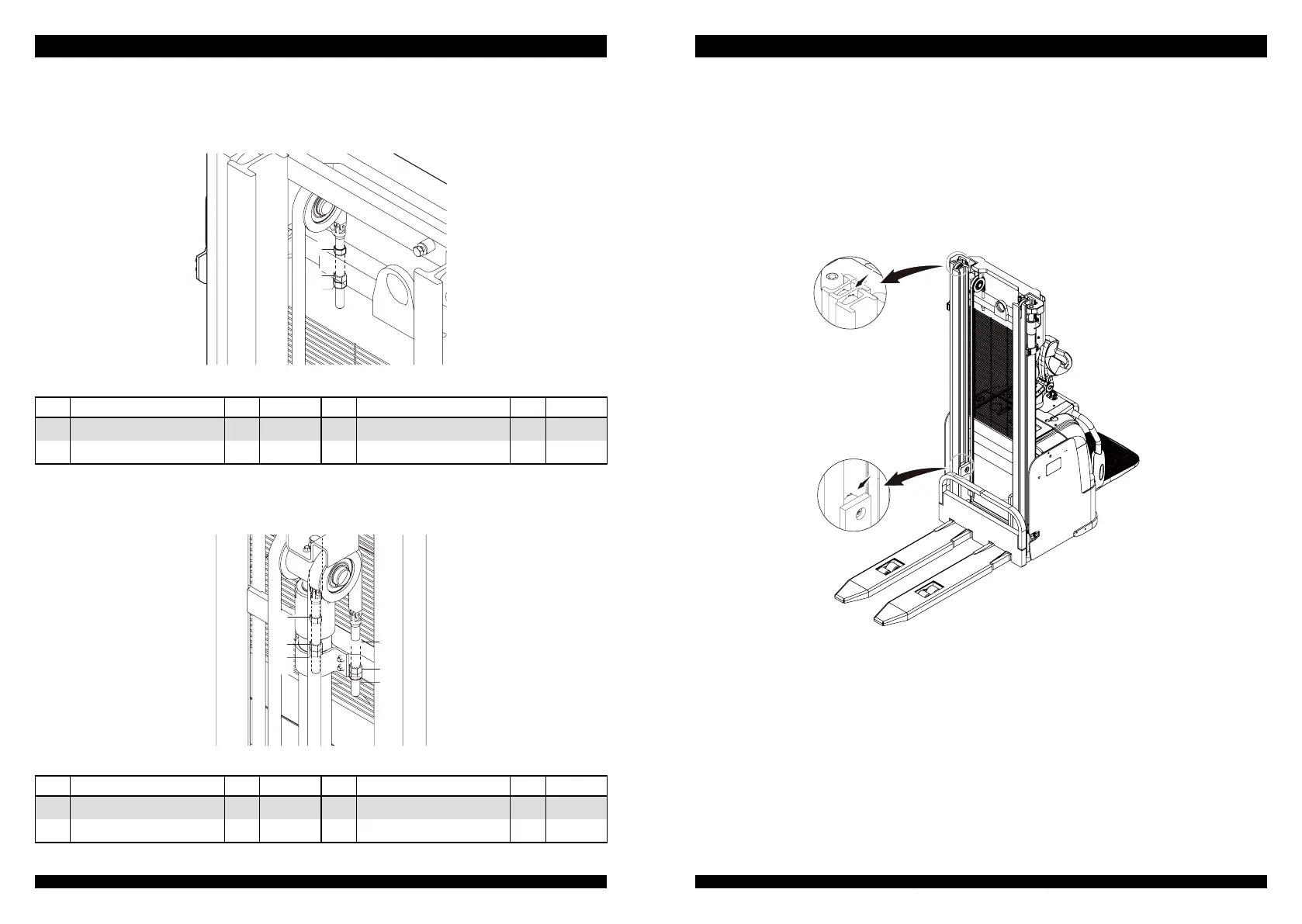

2. Free Lift Mast Lift Chain Adjustment
(1) Loosen the upper and lower nuts of the lift chain, and then screw the middle nut to adjust
the length of the chain. After adjustment, make the chains remain the same tightness, and
them tighten nuts.
CODE PART NAME QTY CODE PART NAME QTY
11
NUT (UPPER)
1 110 N-m 13
NUT (LOWER)
1 110 N-m
12
NUT (MIDDLE)
1 110 N-m
(2) Loosen the upper and lower nuts of the free lift chain, and then screw the middle nut
to adjust the length of the chain. After adjustment, make the forks remain level and the
chains remain the same tightness, and them tighten nuts.。
CODE PART NAME QTY CODE PART NAME QTY
11
NUT (UPPER)
1 110 N-m 13
NUT (LOWER)
1 110 N-m
12
NUT (MIDDLE)
1 110 N-m
Chains Lubrication
(1) Clean the exterior of the lift chain and remove dust and debris.
(2) Add the machine oil and let it penetrate the chain joint.
(3) After lubrication, lift and lower the mast several times.
Mast Cleaning
Take out debris between the roller and the channel of the mast.
Mast Clearance Adjustment
1. General Description
A circlip locks the mast roller, bearing, and the dust protection that are installed on the mast
or the carriage stub. The bearing is used to adjust the clearance of the mast and carriage by the
12
13
11
12
13
12
13
11
11
