C-TEC AVAC User Manual

A
VAC VOICE ALARM SYSTEM
AVAC Installation and Maintenance Manual • Approved Document No. DAU0000402 Rev 6 • Page 4

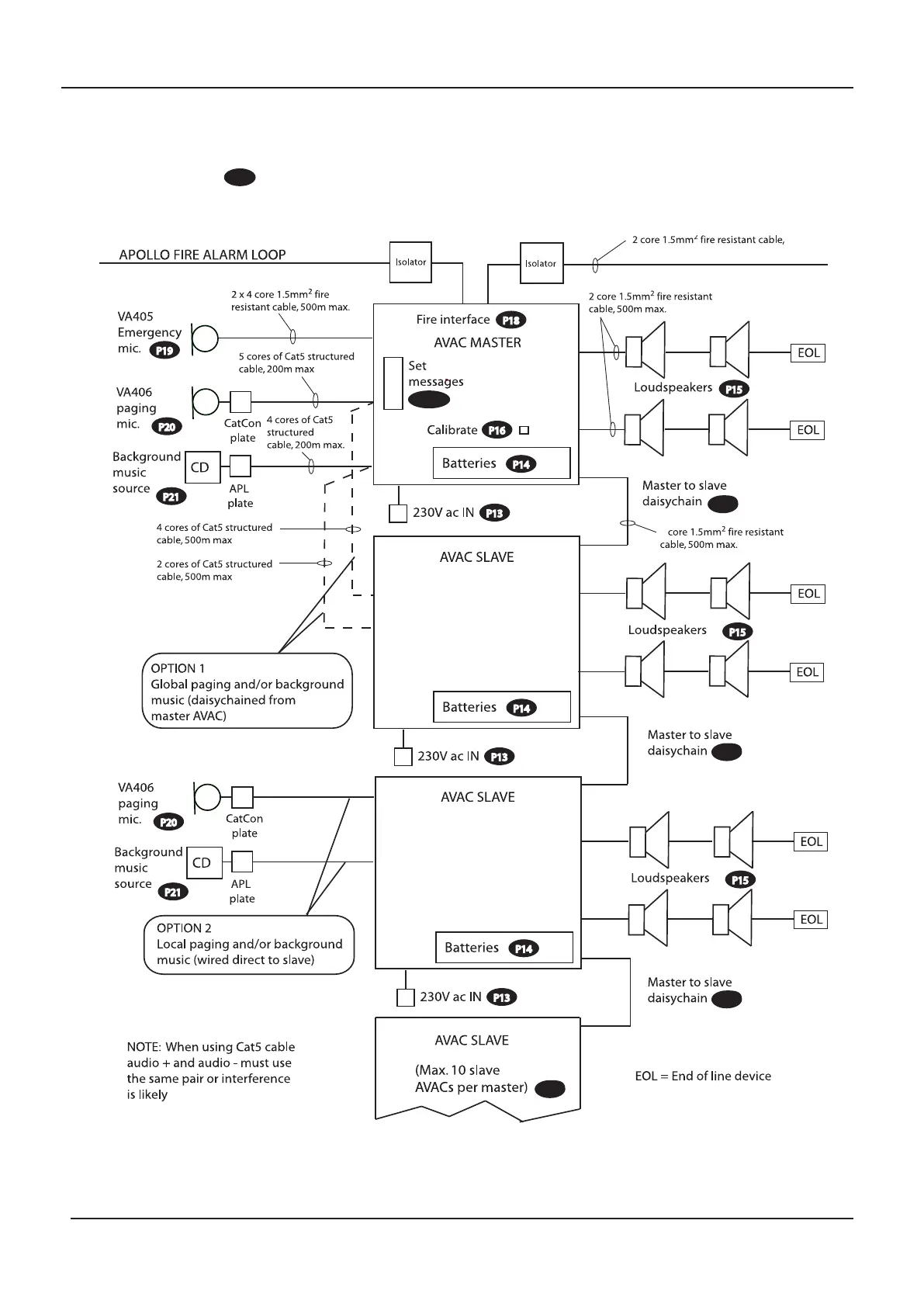

SHORT FORM WIRING INSTRUCTIONS
P23
P23
P23
P
24/25
P23
4
P22
AVAC connected to an Apollo analogue fire alarm loop
C
ircled numbers, i.e. refer to the pages you should read for further information
www.acornfiresecurity.com
www.acornfiresecurity.com

C-TEC AVAC Specifications

Power Supply and Charger

AC input	230 V a.c +/- 10% 50/60 Hz
Internal power supply	27 V d.c. Nominal
Max continuous output current	5A @ 230 V a.c.
Pulse peak output current	7A @ 230 V a.c.
Battery size and type	2 x 12 V 7 AHr VRLA connected in series
Max Battery Charge current	0.5 A

Inputs

BGM input level	230 mV RMS
BGM with link input level	2.3 V RMS
Page input level	230 mV RMS
Page with link input level	2.3 V RMS
Fire Mic input level	230 mV RMS

Outputs

Max Output AUX 24 V	100 mA
Max Output Fire Mic 24 V	100 mA
Max Speaker Output	100 V 0.6 A RMS (60 W) x 2
Output power	2 x 60 W continuous average power
Frequency response at 30 W load	152 Hz to 12 kHz

Battery Calculations

Average standby current at full load	97 mA
Average alarm current at full load	1.2 A
Loudspeaker Monitoring Tone	20 kHz
Frequency response on Page and BGM	220 Hz to 6.2 kHz
