CAB A4 User Manual

25cab Produkttechnik GmbH & Co KG
1
2
3
4
5
6
7
8
9
10
11
12
13
4. Printer Component Location

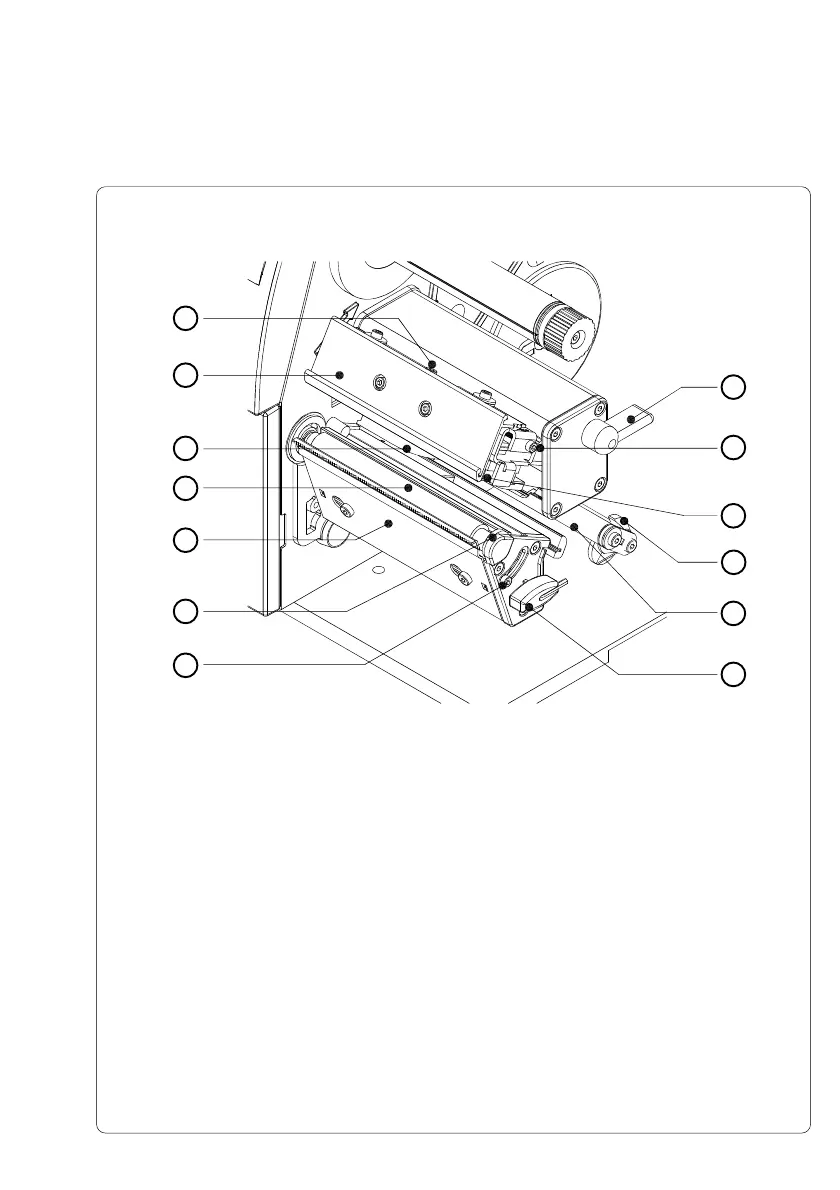

Fig. 4b Print mechanism Basic Devices with printhead open
1 - Printhead locking screw
2 - Ribbon shield
3 - Label edge sensor
4 - Media feed roller
5 - Tear-off plate
6 - Printhead support
7 - Screw to adjust the printhead support
8 - Printhead lever
9 - Screw to adjust the ribbon shield
10 - Thermal printhead
11 - Media guide
12 - Swing (A3: Guide axle)
13 - Allen Key

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
