CAB A4 User Manual

B-2 cab Produkttechnik GmbH & Co KG
Interface Cable for RS-232
To communicate with the printer, a standard RS-232 interface cable is used.
If you have any problems interfacing with the printer, contact the manufacturer
of your computer on the pin assignments of the interface. Use the pin
assignment of the printer as shown in Table B-1 to obtain a compatible cable.
9 pin connector 9 pin plug

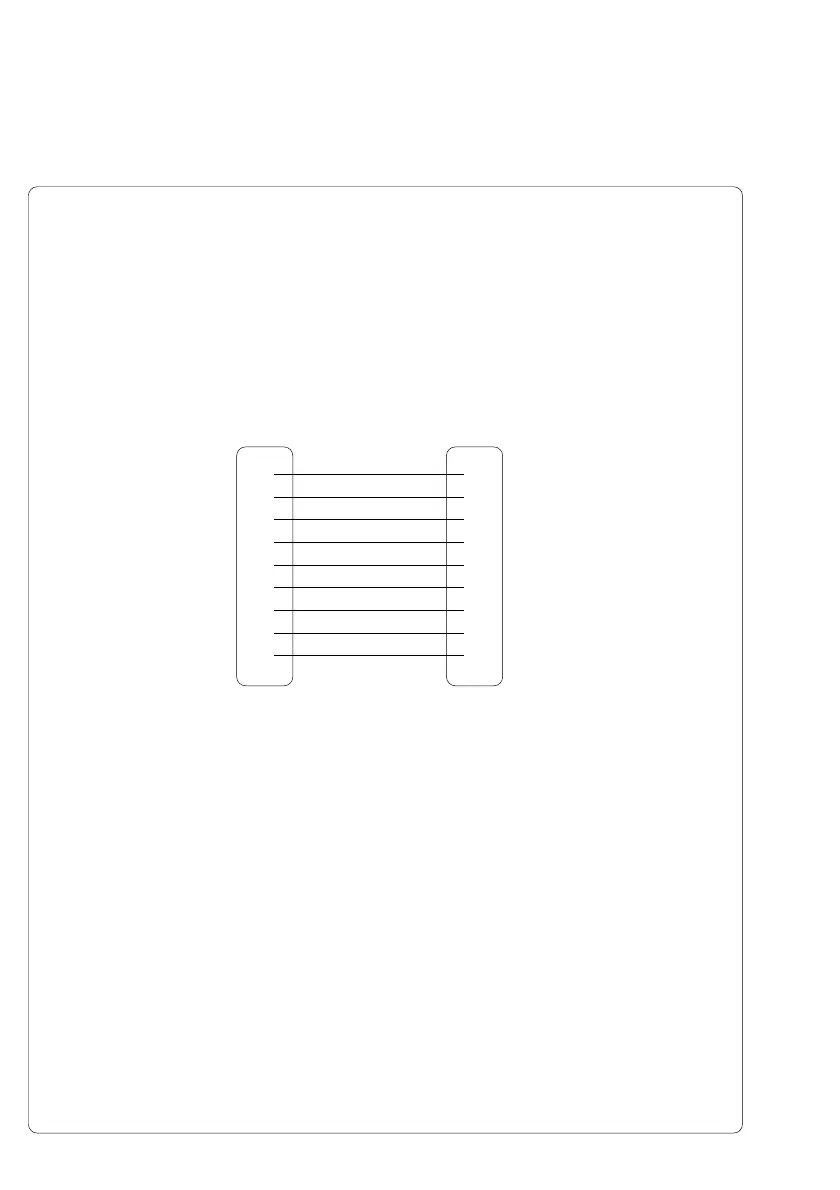

Fig. B-2 Interface Cable with 9 pin Connector
11
22
33
44
55
66
77
88
99
PC Printer
Appendix B - Pin Assignment of the Interface Connectors

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
