CAB A4 User Manual

54 cab Produkttechnik GmbH & Co KG
1
2
4
3
5

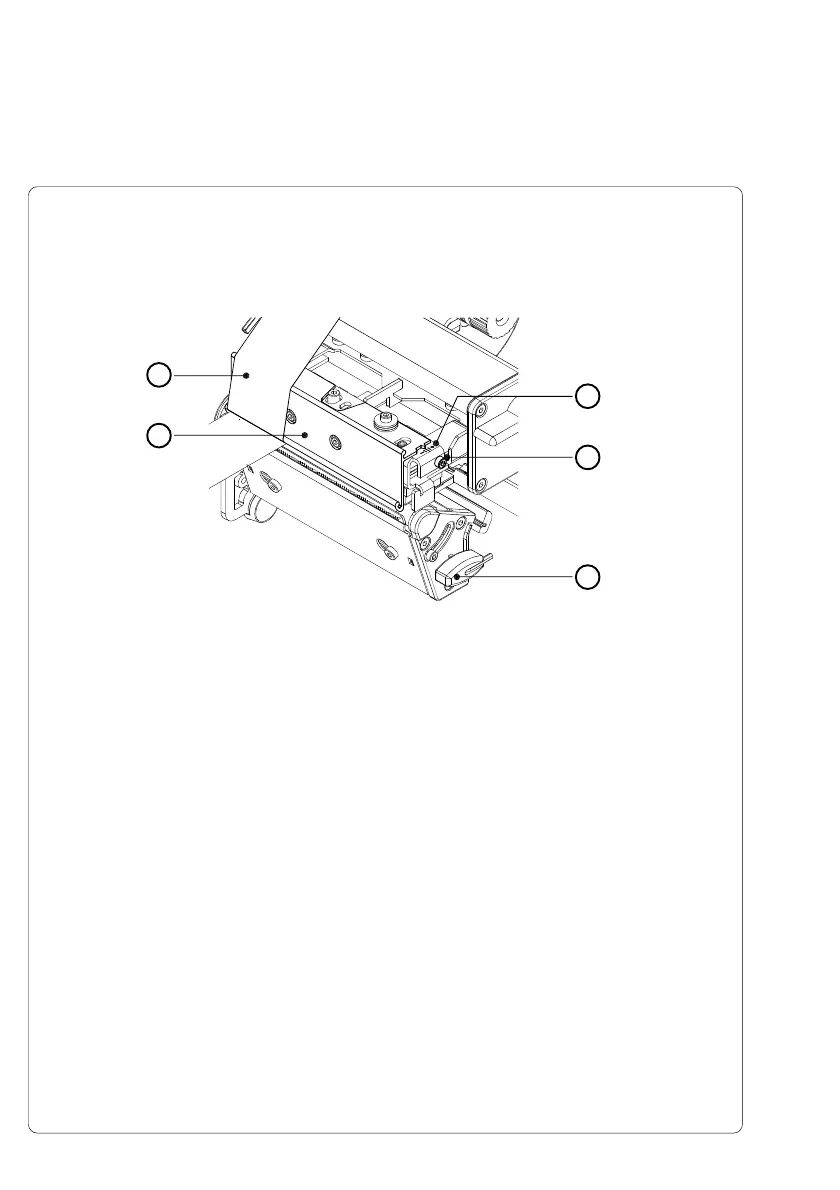

Fig. 7m Adjustment of the Transfer Ribbon
In the event that wrinkles appear in the transfer ribbon (1), which cause an
inconsistent print image, the transfer ribbon shield (2) can be adjusted to
remove the wrinkles. The adjustment should be done during the printing
process.
1. The current position is visible on the scale (3).
2. To change the position, rotate the screw (4) using the Allen key (5).
Rotating it in the direction of "+" will tighten the transfer ribbon the inner
edge of the transfer ribbon. Rotating it in the direction of "-" will tighten the
outer edge of the tranfer ribbon.
To eliminate the wrinkles, tighten the side where the wrinkles are
originating.
Adjustment of the Transfer Ribbon
7. Media Loading

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
