4. Slide a cardboard core (1) onto the ribbon take up hub (2). Clamp the
core by rotating the knurled knob (3) counter-clockwise.
5. Feed the transfer ribbon along the path as shown in figure 7l and attach it
to the cardboard core (1) using a piece of tape or a label.
6. Turn the ribbon take up hub (2) counter-clockwise until the ribbon is taut
and without any wrinkles.
7. Rotate the printhead lever (7) counter-clockwise until it stops, thereby
locking the printhead into position.

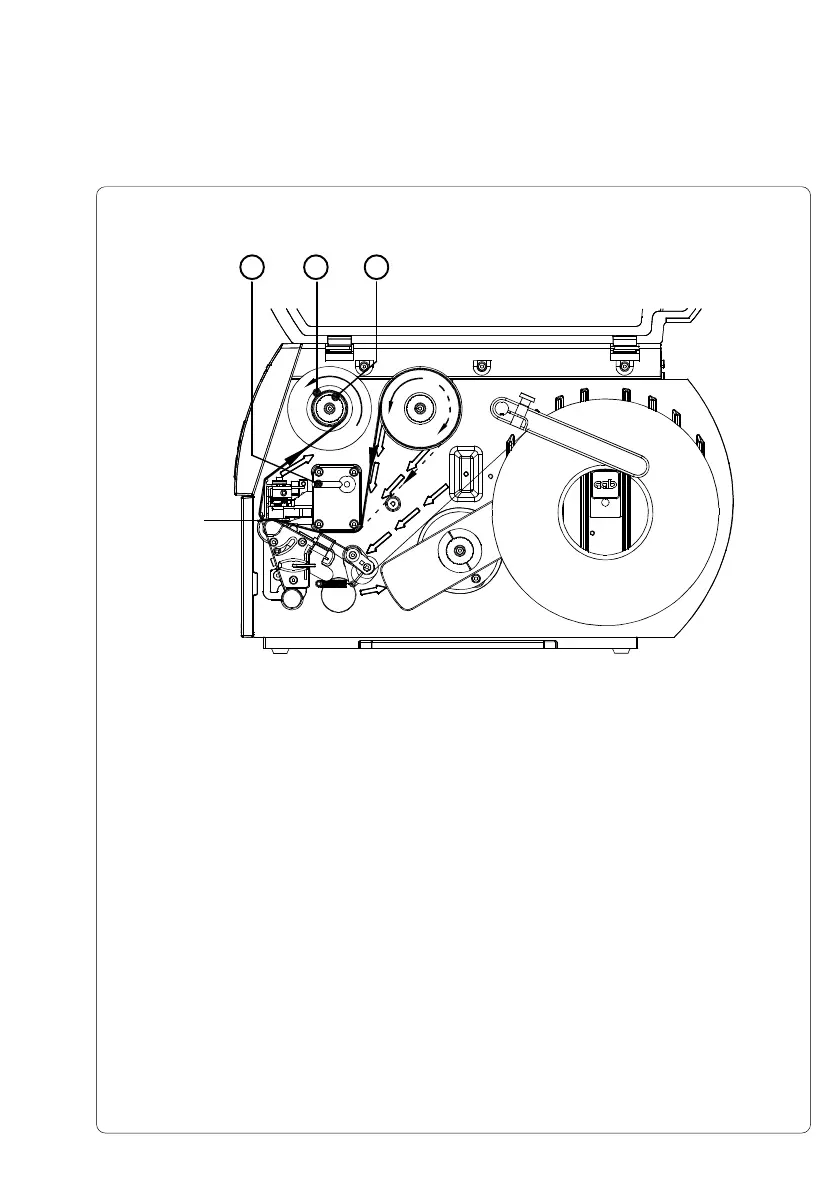

Fig. 7l Path of Transfer Ribbon
7. Media Loading

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
