7. Media Loading
Loading Labels

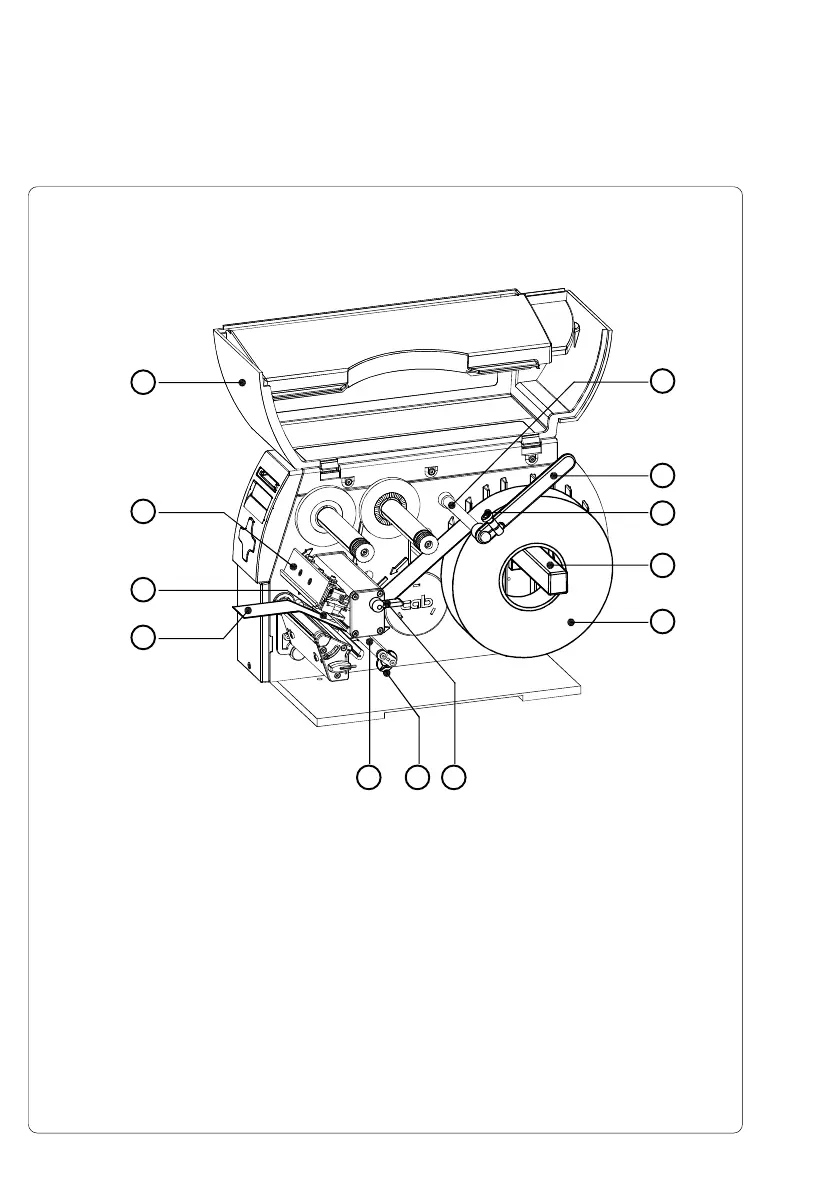

Fig. 7c Label Loading in Tear-off Mode
1. Open the cover (1).
2. Loosen the knurled screw (10), swing the media retainer (11) upwards and
slide it out as far as possible.
If you are using material that is the same width as the previous material,
just swing the media retainer (11) upwards.
3. Place the media roll (8) onto the media hub (9) and unwind a strip of
media (4) from the media roll. When operating in the rewind or peel-off
mode make sure that the strip is long enough to reach the internal
rewinder by guiding it through the whole print mechanism and underneath
of it. Make sure the labels between the media hub and the print
mechanism are facing up. Slide the roll onto the media hub (9) until its
stops.
Loading Labels from Roll
567

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
