4. Printer Component Location

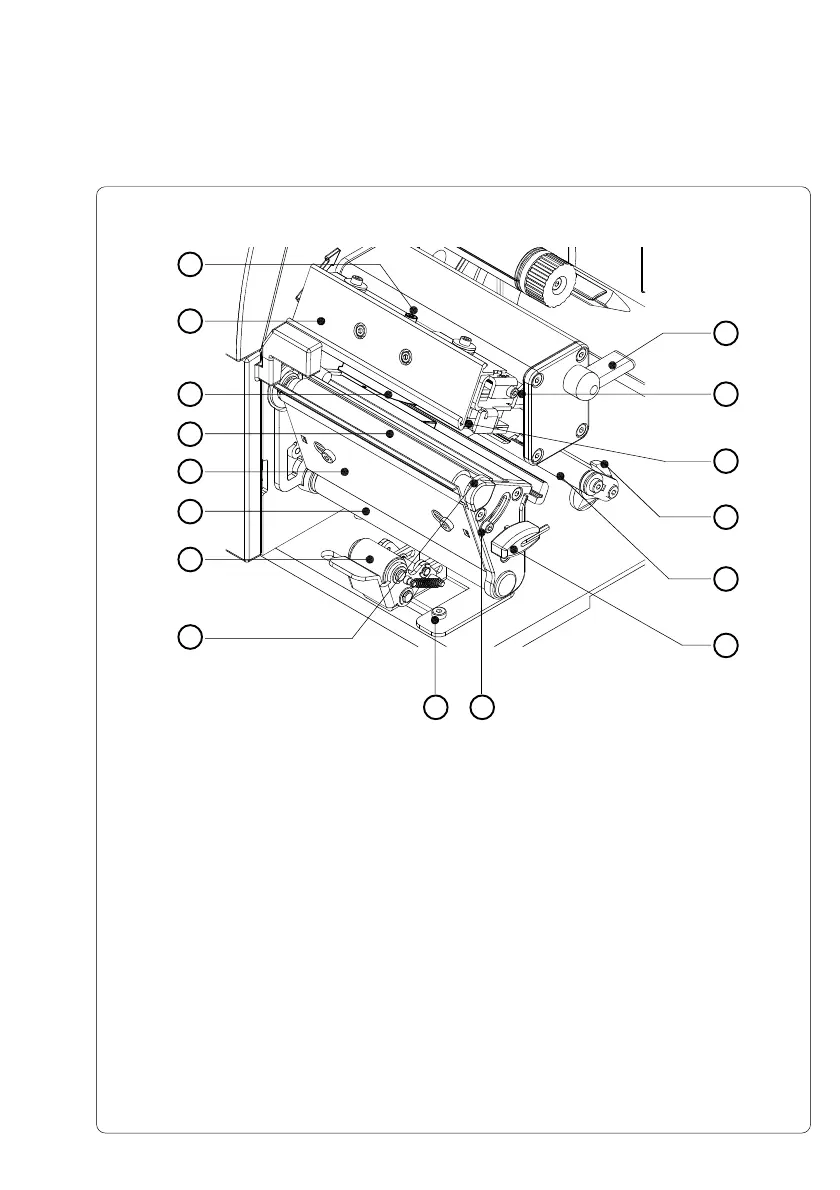

Fig. 4d Print mechanism P-Versions with printhead open
1 - Printhead locking screw
2 - Ribbon shield
3 - Label edge sensor
4 - Media feed roller
5 - Dispense plate
6 - Rewind assist roller
7 - Locking system
8 - Printhead support
9 - Screw for adjusting locking system
10 - Screw for adjusting printhead support
11 - Allen key
12 - Swing (A3: Guide axle)
13 - Media guide
14 - Thermal printhead
15 - Screw to adjust the ribbon shield
16 - Printhead lever

CAB A4 Specifications

General

Printer Type	Thermal transfer / direct thermal
Interfaces	USB, Ethernet, RS232
Label Thickness Range	0.05 mm - 0.25 mm
Memory	8 MB Flash
Power Supply	100-240 VAC, 50/60 Hz
Operating Temperature	+5°C to +40°C
Print Resolution	203 dpi
Humidity Range	10-85% non-condensing
