Loading Fanfold Labels
1. Open the cover.
2. Loosen the knurled screw (7) and slide the media guide (6) to its
outermost position. Rotate the media guide (6) downwards past the media
retainer (5).
3. Place the stack of media (4) behind the printer. Make sure the labels on
the media strip are facing up.
4. To raise the printhead assembly (2), rotate the lever (1) clockwise until it
stops.
5. Slide the media guide ring (3) outward, allowing enough clearance for the
media's width when loaded.
6. Slide the media strip through the printer as shown in figure 7i.
7. Adjust the label edge sensor so, that the sensor can recognize the space
between the labels respectively the reflective or the perforation mark.
8. Slide the media guide (6) inward until it lightly touches the side of the
media strip. Rotate the media guide (6) upwards against the media
retainer (5) and tighten the knurled screw (7).

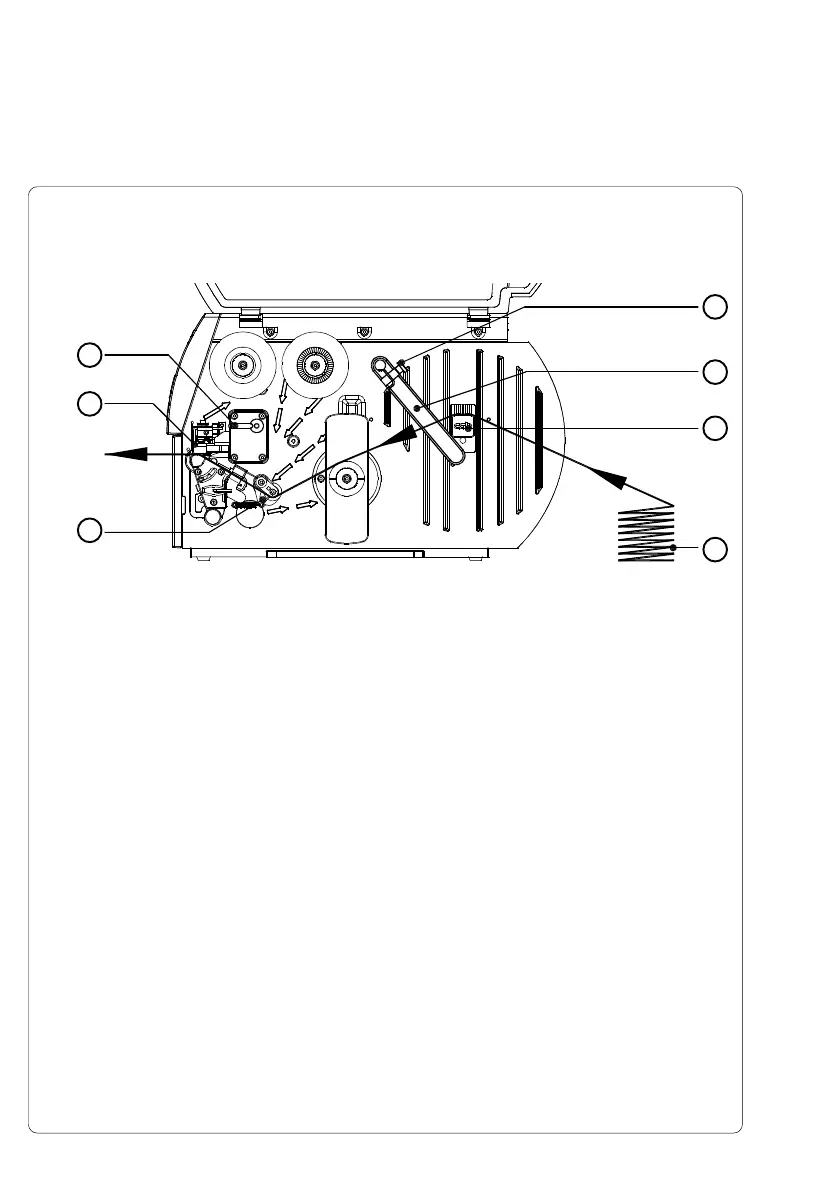

Fig. 7i Loading Fanfold Labels
7. Media Loading
