4.2 Adjusting the Label Sensor
Note!
When the printer is delivered the label sensor is positioned in the middle of the paper feed. Thus, the label
sensor must only be adjusted if materials with the following characteristics are used:
• Material with reex or cut-out marks, which are not in the middle.
• Multi-strip material with an even number of strips.
• Material with irregularly shaped labels.
3a
3b

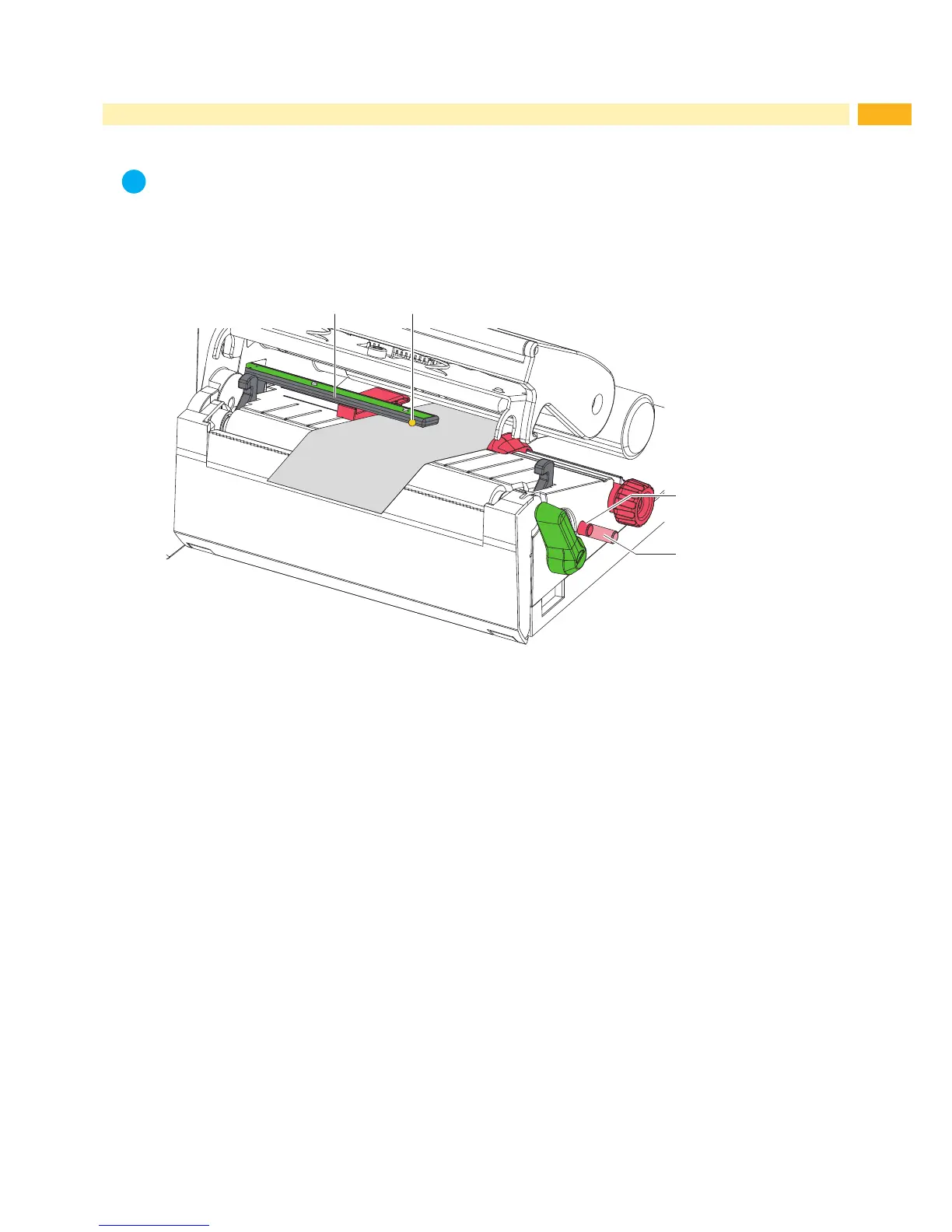

Figure 10 Adjusting the label sensor
The sensor position (3) is marked with a yellow LED in the sensor retainer.
1. Open the printhead.
2. Bring knob (3) by pressing it into the setting position (3b).
3. Position the sensor holder (1) by turning the knob (3) so that the sensor (2) can detect the front edge of the label
inthedirectionofpaperoworthereexorcut-outmark.
4. Bring knob (3) by pressing it into the basic position (3a).
