4.4 Setting the Feed Path of the Transfer Ribbon
Transferribbonwrinklingcanleadtoprintimageerrors.Thetransferribbondeection(2)canbeadjustedsoasto
prevent wrinkles.
1 2

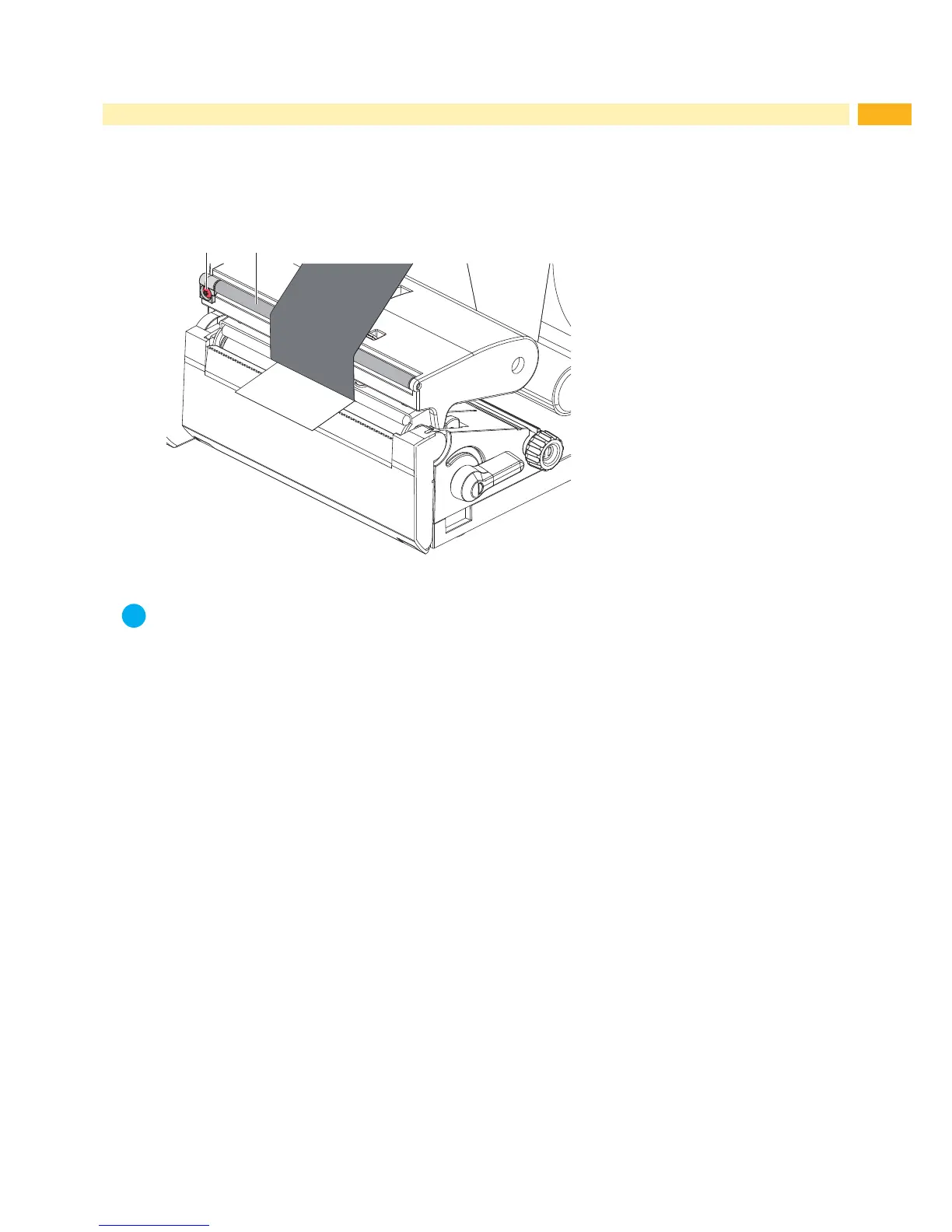

Figure 14 Setting the feed path of the transfer ribbon
i
Note!
The adjustment is best carried out during printing.
 Turn screw (1) with torx wrench TX10 and observe the behavior of the ribbon.
• By turning it clockwise the outer edge of the transfer ribbon is tightened.
• By turning it counterclockwise the inner edge of the transfer ribbon is tightened.
